3 - 15
Connecting the Dual Port Interface
•
The UG00P-DI unit makes the connector for programmer of MELSEC-A, QnA or FX series CPU of
Mitsubishi PLC into “two-port type”.
It is used to connect POD and PLC loader at the same time for debugging PLC program or to connect two
units of POD using the connector for programmer of the CPU of the PLC.
Warning
•
Turn OFF the power before mounting, dismounting, wiring, maintaining, or checking, otherwise, electric
shock, erratic operation, or troubles might occur.
Caution
•
Follow the directions of the operating instructions and the manual when mounting the product. If
mounting is improper, the product might drop or develop problems or erratic operations.

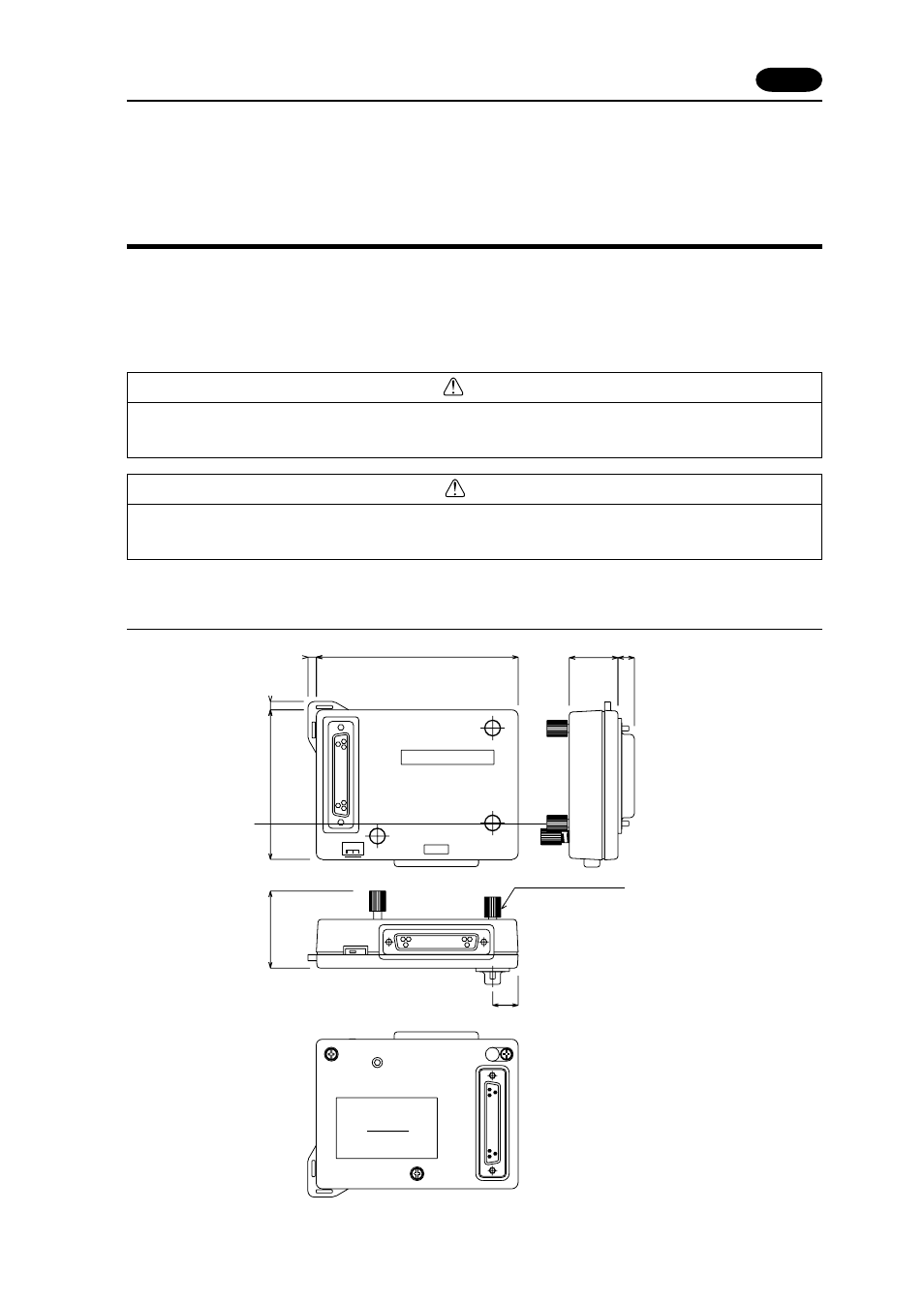

External Dimensions
6 Connecting the Dual Port Interface
1
1
1 2 3
1
GPP
UG00P-DI
UG
100 24.1
74
38.1
8.08
12.7
4.1
4.1
Device mounting screw
Type seal
6
