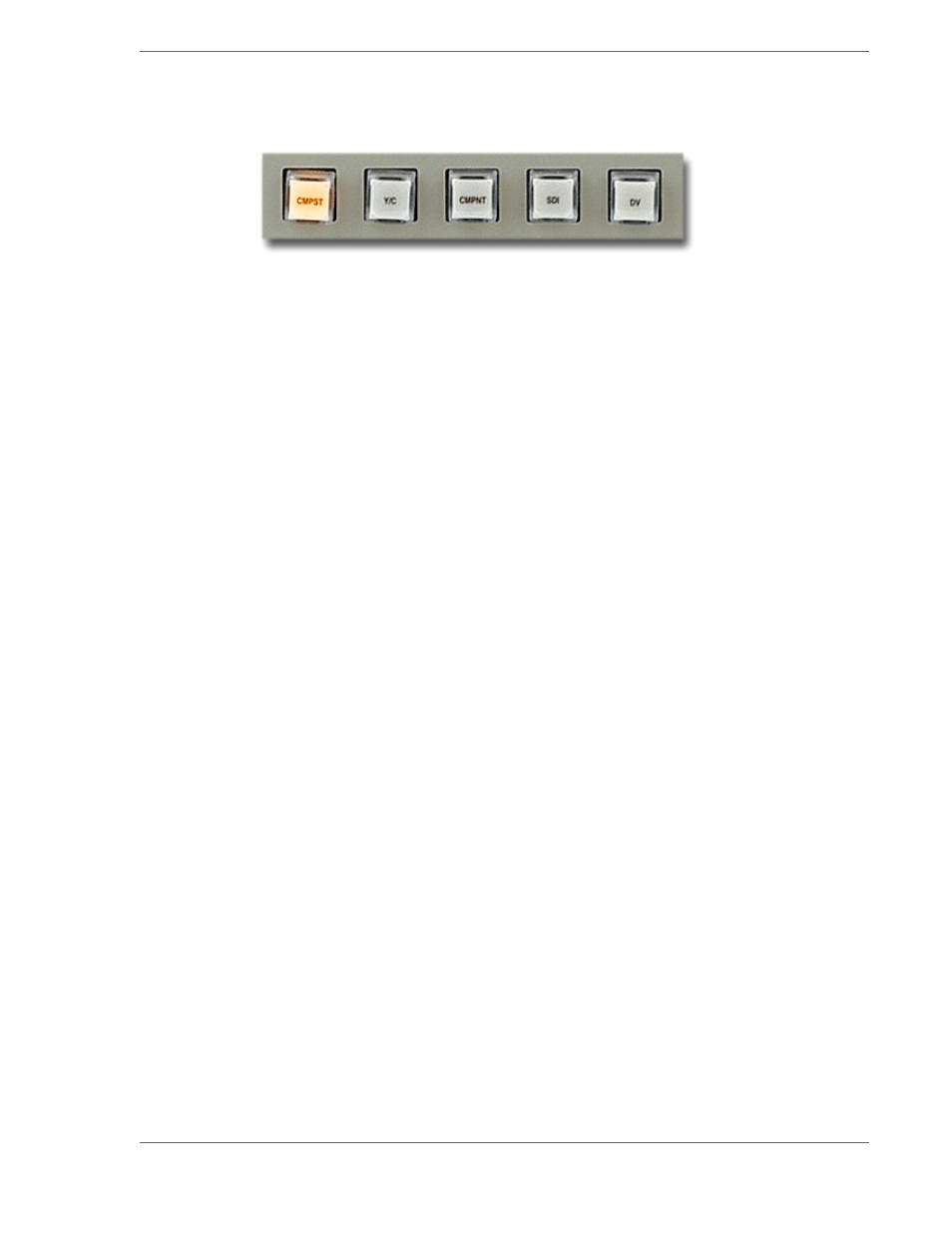

2.1.3 Input Source Selection Keys
In all cases, when selected, the key lights. When selecting
CMPST
,
Y/C
, or
CMPNT
and there is no video source available, this light flashes several
times and then the FS-2/2E returns to the original input selection. Switching
is not seamless. You cannot change inputs while in record mode.
2.1.3.1
CMPST – Composite Video Source Input Key
Press this key to select composite video as the input source. If
there is no video source available when this button is pressed, the
light flashes several times and then the FS-2/2E returns to the
original video selection.
The default audio link is balanced analog audio. You can also
select
AES/EBU
audio as the input link in the
SETUP
>
AUDIO
INPUT
menu.
2.1.3.2
Y/C – S-Video
Press this key to select
S-Video
(
Y/C
) as the input source. If there is
no video source available when this button is pressed, the light
flashes several times and then the FS-2/2E returns to the original
video selection.
The default audio link is balanced analog audio. You can also
select
AES/EBU
audio as the input link in the
SETUP
>
AUDIO
INPUT
menu.
2.1.3.3
CMPNT – Component Video Source Input Key
Press this key to select
Component
video (
Y
,
R-Y
,
B-Y
) as the input
source. If there is no video source available when this button is
pressed, the light flashes several times and then the FS-2/2E
returns to the original video selection.
The default audio link is balanced analog audio. You can also
select
AES/EBU
audio as the input link in the
SETUP > AUDIO
INPUT
menu.
