FieldServer Metasys N2 FS-8700-19 User Manual
Page 23
FS-8700-19_Metasys_N2 Driver Manual
Page 23 of 51
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web:www.fieldserver.com
Tel: (408) 262-2299 Fax: (408) 262-2296 Toll_Free: 888-509-1970 email: [email protected]
Appendix C. Setting up FS-B20 for RS-485
Appendix C.1. Jumper Settings:

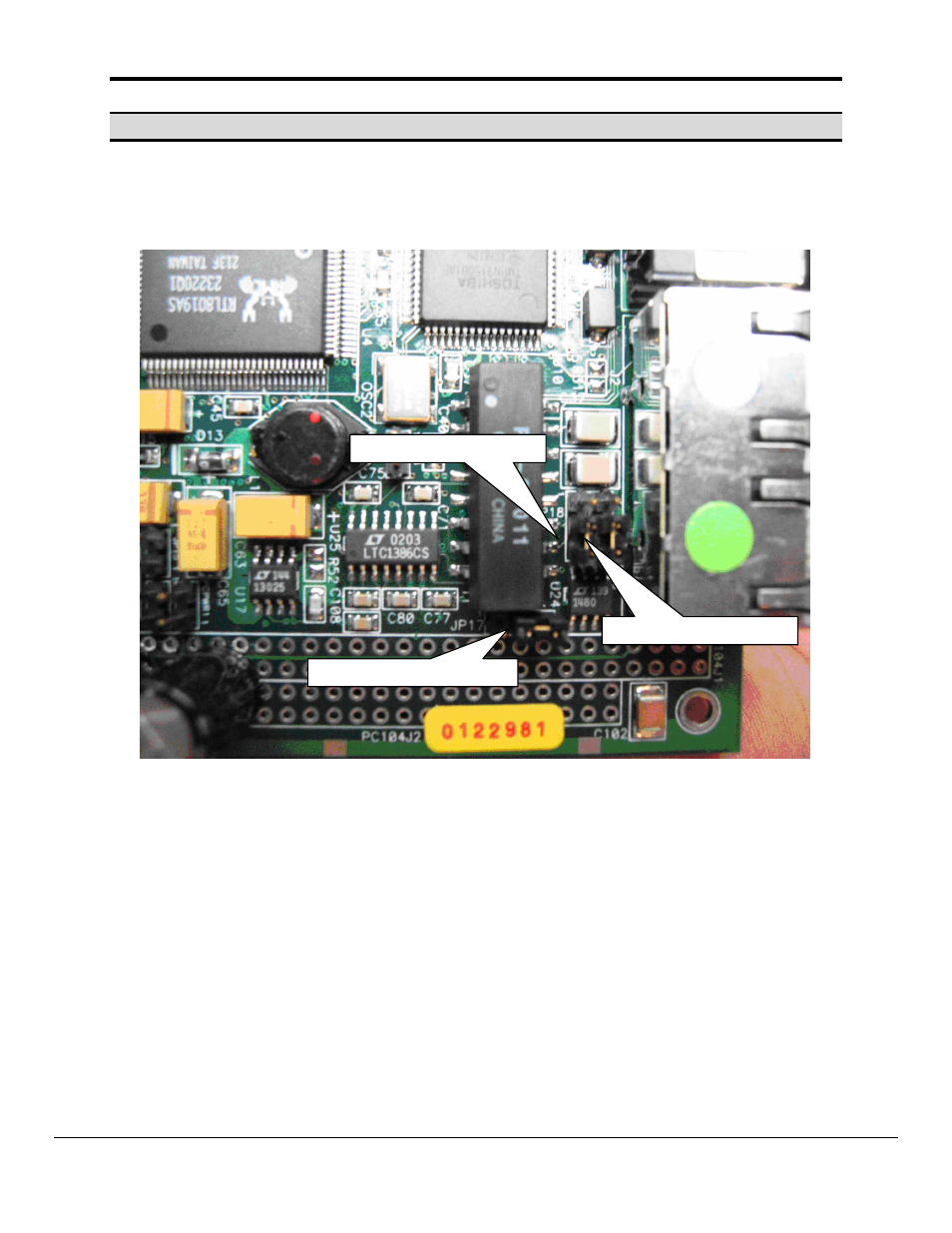

Jumpers jp16, jp17, and jp18 need to be transferred from pins 1-2 to pins 2-3 in order to
enable RS-485. These jumpers can be found just behind the RJ45 ports inside the box
Jmpr 17 in 485 position.
Jmpr 16 in 485 position.
Jmpr 18 in 485 position.
