4.10 Bus Analyzer
4–51 MMDS0508 Target Interface

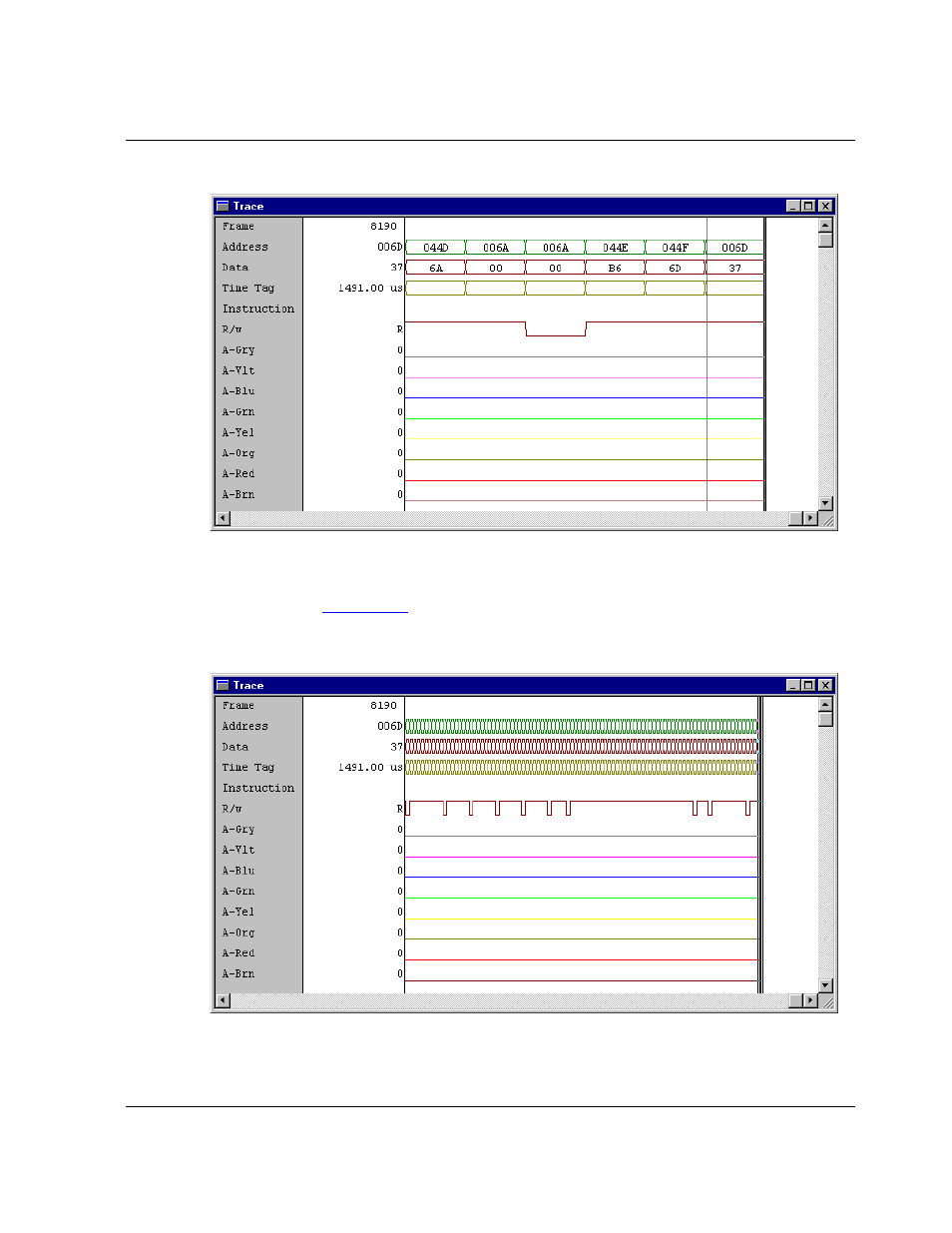

Figure 4.22 Trace Zoom Display
The figure above is a zoomed-in graphical display.
To zoom out, choose the Trace>Zoom Out menu selection, or press the O key of the
keyboard. The
Figure 4.23 show below is a zoomed-out graphical display.
Figure 4.23 Trace Zoom In Display
Dragging the marker over a bus analyzer display may also generate updates in
component windows, such as the source and assembly windows. In other words,
