MMDS Target Comp onent
4.8 MMDS0508 Menu Entries
4–33 MMDS0508 Target Interface

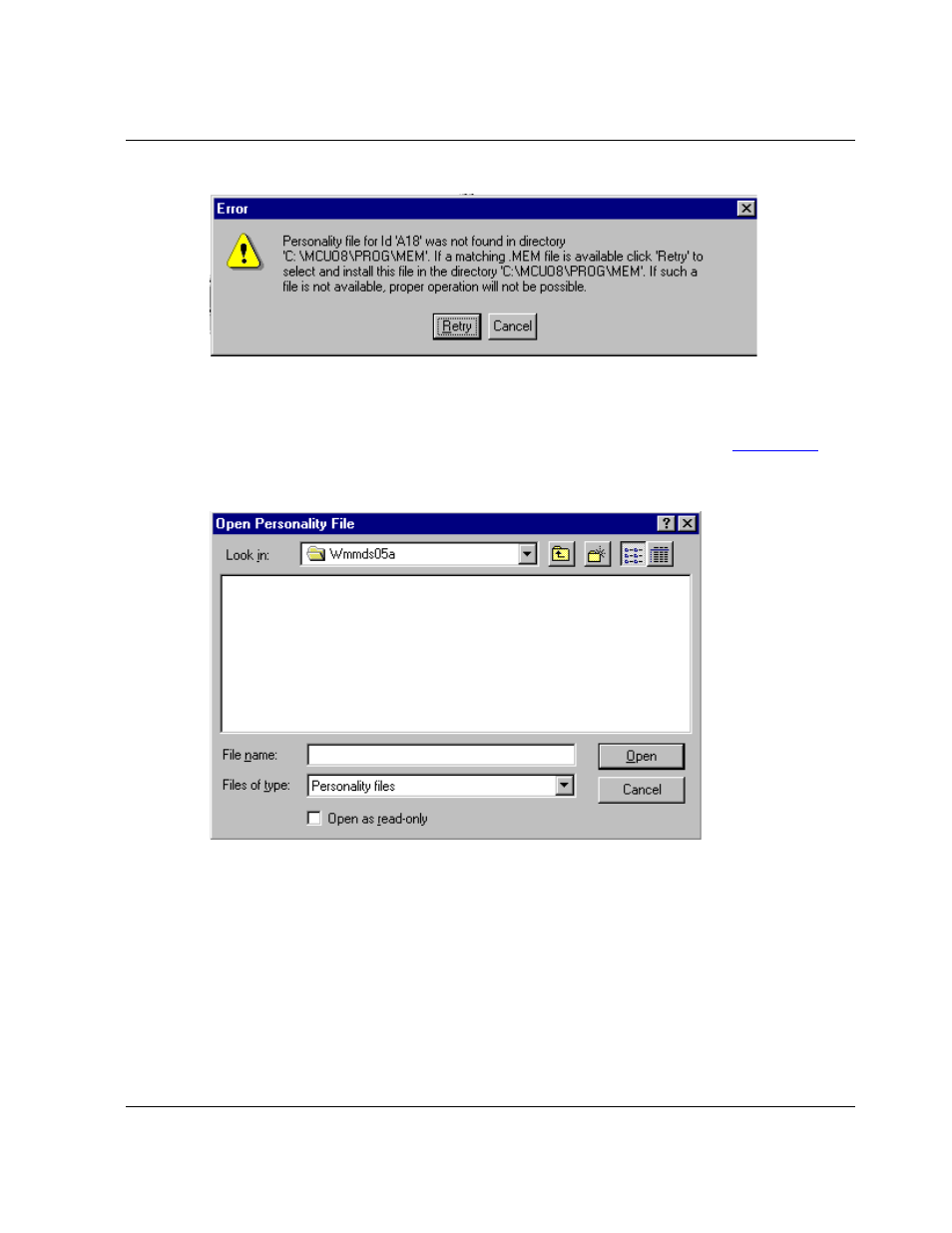

Figure 4.12 Error Message
Click Cancel to open the Communication Device Specification dialog box, instead of
establishing the connection.
Click Retry to bring up the Open Personality File dialog box show in Figure 4.13 :
Figure 4.13 Open Personality File
This dialog box lets you browse to find and open the necessary .MEM file.
If you select another invalid .MEM file, the error message box and the Configuration
Device Specification dialog box reappear.
If the .MEM file is valid, the target loads the file, copying it into the \PROG\MEM
directory, with ‘V00’ as the version number (for example, 00A18V00.MEM).
Note that the Memory Configuration dialog box displays the current memory map.
When starting the debugger:
