MMDS Target Componen t
4.8 MMDS0508 Menu Entries
4–30 MMDS0508 Target Interface

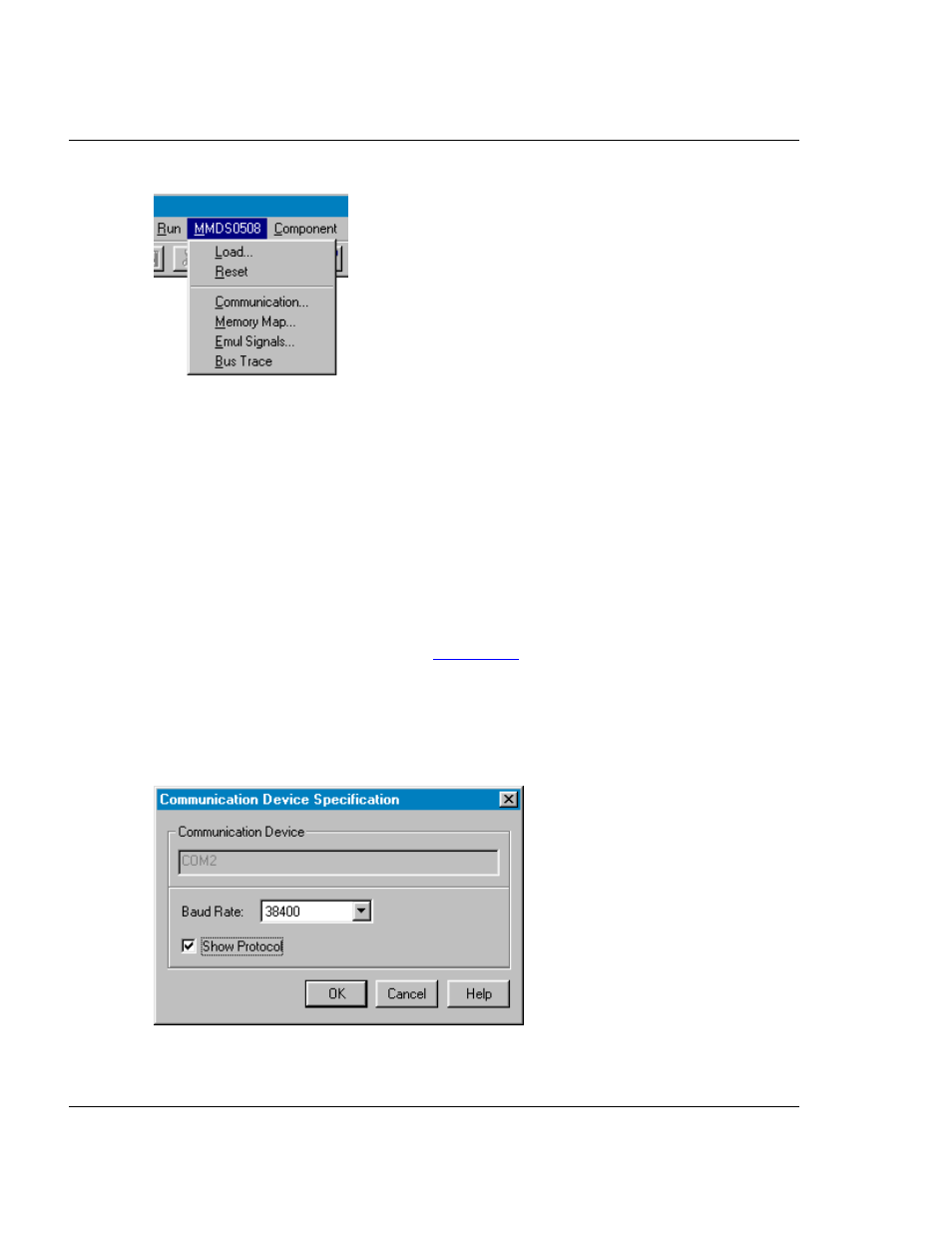

Figure 4.9 MMDS Menu Entries
4.8.1 Communication Baud Rate
You should specify the baud rate for host-computer-to-MMDS0508 communication
early in a session. The system operates most efficiently at the maximum baud rate that
the host computer supports.
You can modify this baud rate, as text below explains.
4.8.1.1 Communication
Select MMDS0508>Communication... to display the Communication Device
Specification dialog box as shown in
Figure 4.10 . Use the drop-down control to
specify the maximum value (115200 baud), or to specify the maximum rate your host
supports. If communication fails, the debugger reverts to the previous successful baud
rate.
Figure 4.10 Communication
