MMDS Target Comp onent
4.10 Bus Analyzer
4–39 MMDS0508 Target Interface

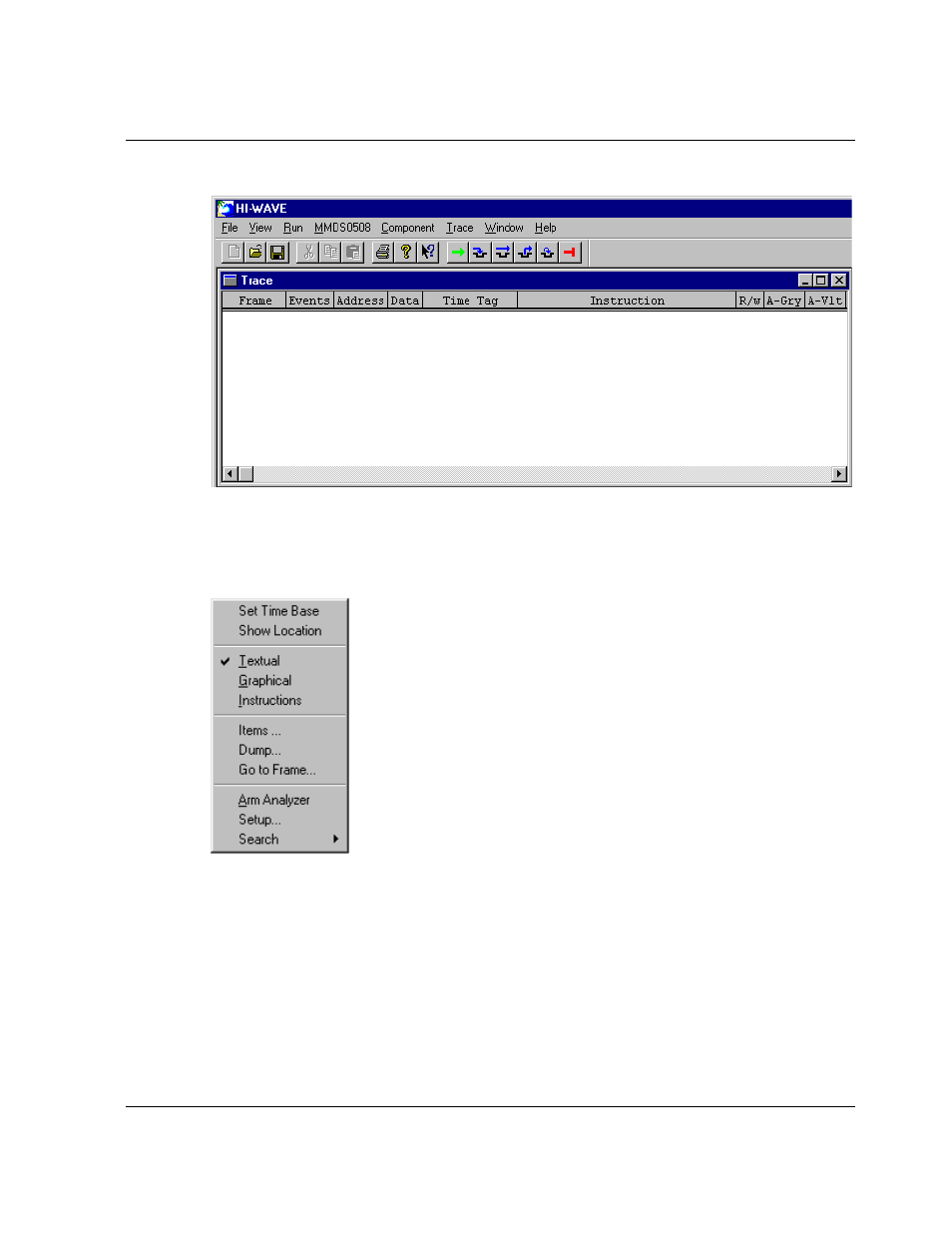

Figure 4.15 Bus Analyzer
4.10.2.1 The Trace window popup menu
Figure 4.16 Trace Window popup
The bus analyzer has setup pages for these functions:
• Triggers
• Search pattern
• Sequencer
• Clock timing
These tabbed setup pages are part of the Bus Analyzer Configuration dialog box.
The Bus Analyzer Configuration dialog box lets you define symbolic names for
address values. When you change setup pages in the dialog box, the address and
