MMDS Target Componen t
4.10 Bus Analyzer
4–40
MMDS0508 Target Interface
symbolic name values must match. If there is an inconsistency, the system prompts
you to:
•
Use the address and remove the symbol.
•
Replace address with the symbol address.
•
Fix the inconsistency by returning to the dialog box and clicking the symbol button.
4.10.2.2 Trigger Setup
The sequencer mode requires one or more terms to define the trigger events. To define
these events (triggers) select Trace>Setup.... This opens the Bus Analyzer
Configuration dialog box as shown in
.
Figure 4.17

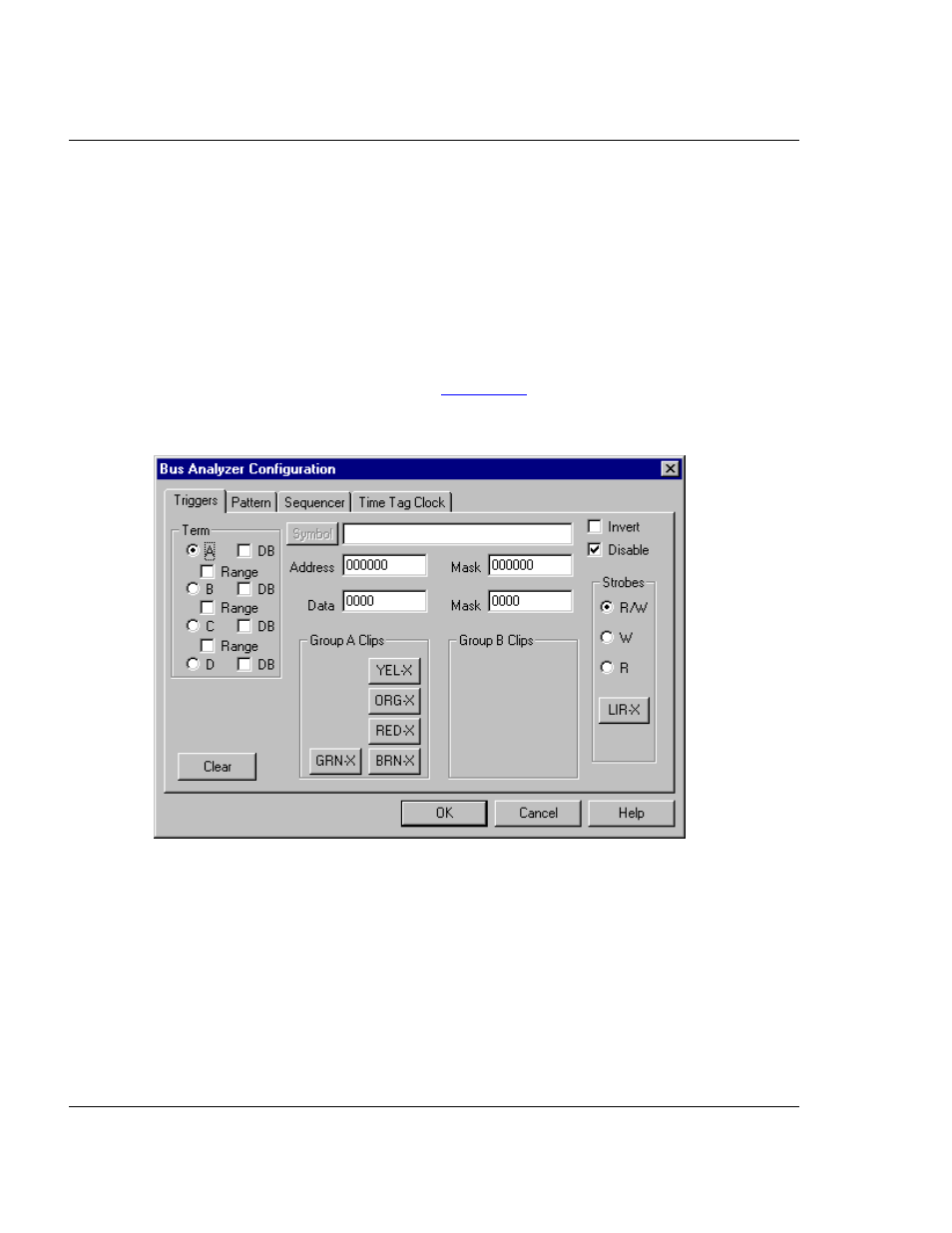

Bus Analyzer Trigger Setup
Use the Triggers page to define a trigger in terms of one, two, three, or four events.
For each term, define the read-write actions and clips.
These terms can be ranged or non-ranged triggers. For ranges, you can use A and B
together, and C and D together (two different ranges), or you can use B and C together
(one range).
You can edit the address masks and data masks for a “don’t care” qualifier on any
address or data signal. For example, if you set a trigger for address 0x1000, but the
corresponding mask is 0xFFFE, then either address 0x1000 or 0x1001 will trip the
trigger.
