MMDS Target Componen t
4.5 Loading the MMDS0508 Target
4–26 MMDS0508 Target Interface
computer to be a data terminal, so that it sends data on the TxD lead and receives data
on the RxD lead (as shown in
Figure 4.2 and as the MMDS0508 hardware manual
explains).

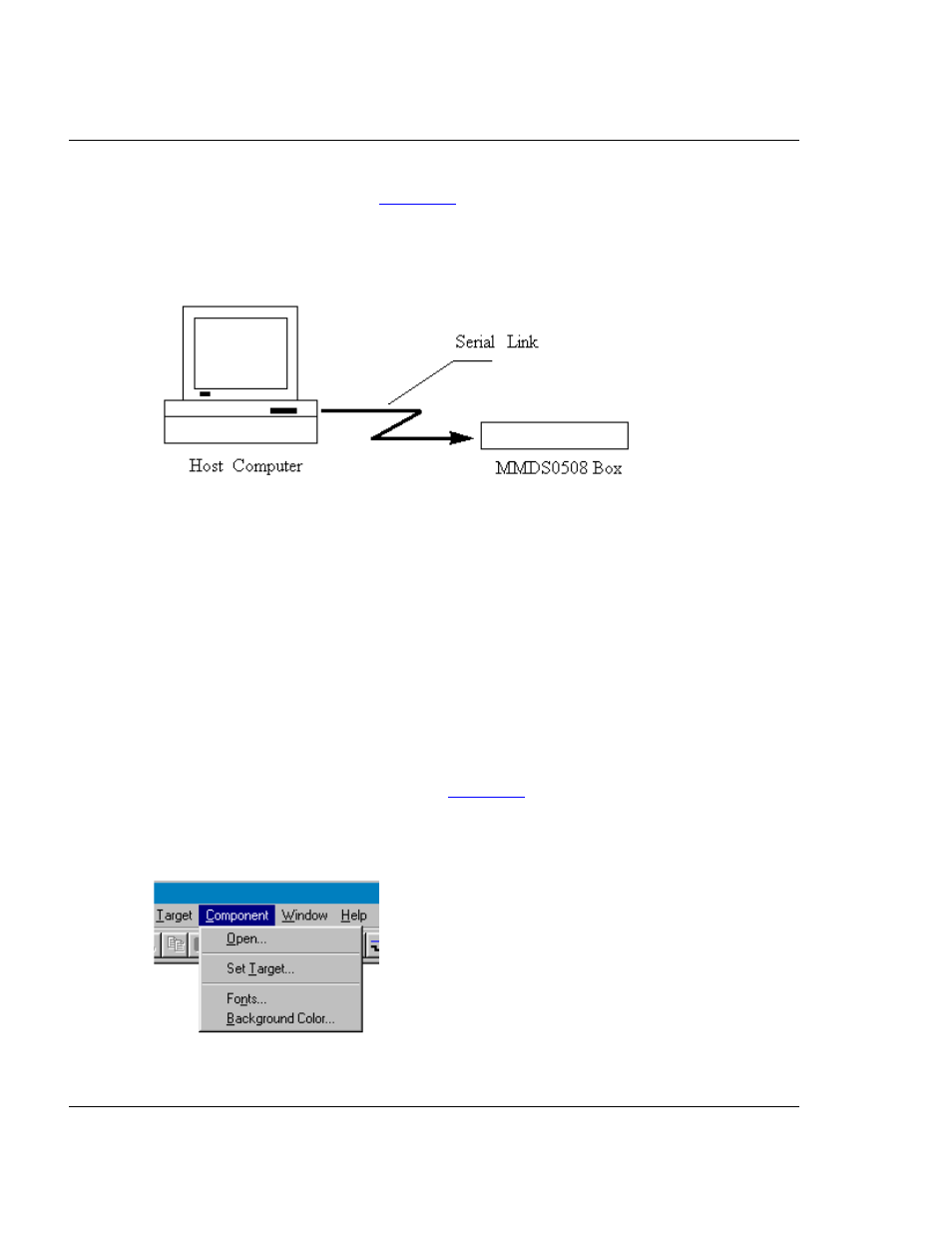

Figure 4.2 Hardware connection
4.5 Loading the MMDS0508 Target
Usually, the PROJECT.INI file specifies the target. To make the MMDS the target,
change the file’s “Target=” line to “Target=Motosil”. The MotoSIL driver
automatically detects the MMDS. However, if the driver detects nothing, an error
message informs you that the target is not connected to the expected port.
Additionally, the Communications Device Specification dialog box appears, so that
you can set the correct baud-rate and communication-port parameter values. See the
Communication Configuration section of this document for more details.
Another way to load the MMDS0508 target is selecting Set Target... from the
Component Menu (below) as shown in
Figure 4.3 , then choosing MotoSIL from the
list of possible targets.
Figure 4.3 Set Target
