d. Make sure "Use primary and secondary data" is checked [for this example]
i. Required because we are using two CAN variables to control the output to the relay.
5. Set the Output Type to the correct type your relay control logic
a. For this application it should be "Ground" On and "Open" Off.
6. Select "And" in the "and/or" drop down for:
a. "On Primary CAN Data" And " Secondary CAN Data"
7. Primary CAN Data configuration
a. For Function select Simple Off to On from the drop down menu
b. For On A enter 180 (degrees F)
c. For Off A enter 175 (degrees F)
8. Secondary CAN Data configuration
a. For Function select Simple On to Off from the drop down menu
b. For On A enter 55 (MPH)
c. For Off A enter 60 (MPH)

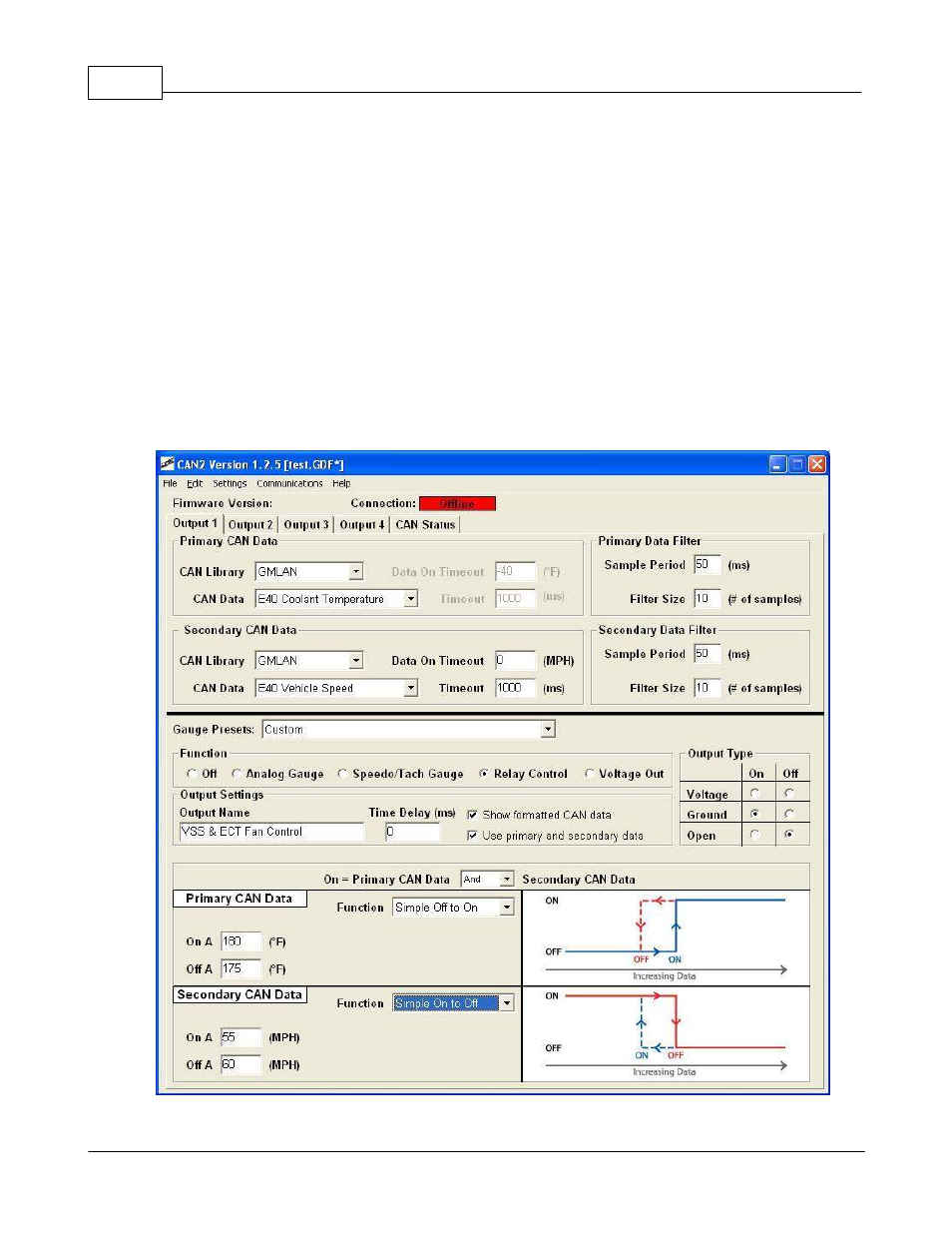

The configuration screen should now look like this:
