Hardware Install 21
© 2014 Lingenfelter Performance Engineering
with a "L" or a "1". The letters for the locations of the 1st and last pin of each row are molded into the
connector but they are very hard to see. The connector locations are labeled as viewed from the rear of
the female connector on the engine control module harness.
You will need these parts:
#
Description Part number
1 GT 150 12W ML (GMPP harness mating connector) 15326854
1 Terminal assurance plug (TPA)/secondary lock, purple 15430903
4 0.35 - 0.50 mm^2 male terminal (20-22AWG) 15326268
4 20-22AWG white seal 15366021
8 Cavity plug, green 15305171
Populate the above connector as follows:
Description CAN2 wire color GMPP wire color Connector cavity
GMLAN(-) White with black tracer Tan A
GMLAN(+) White with red tracer Tan/black G
Ignition on power (+12 Vdc) Red Pink L
Ground Black Black M

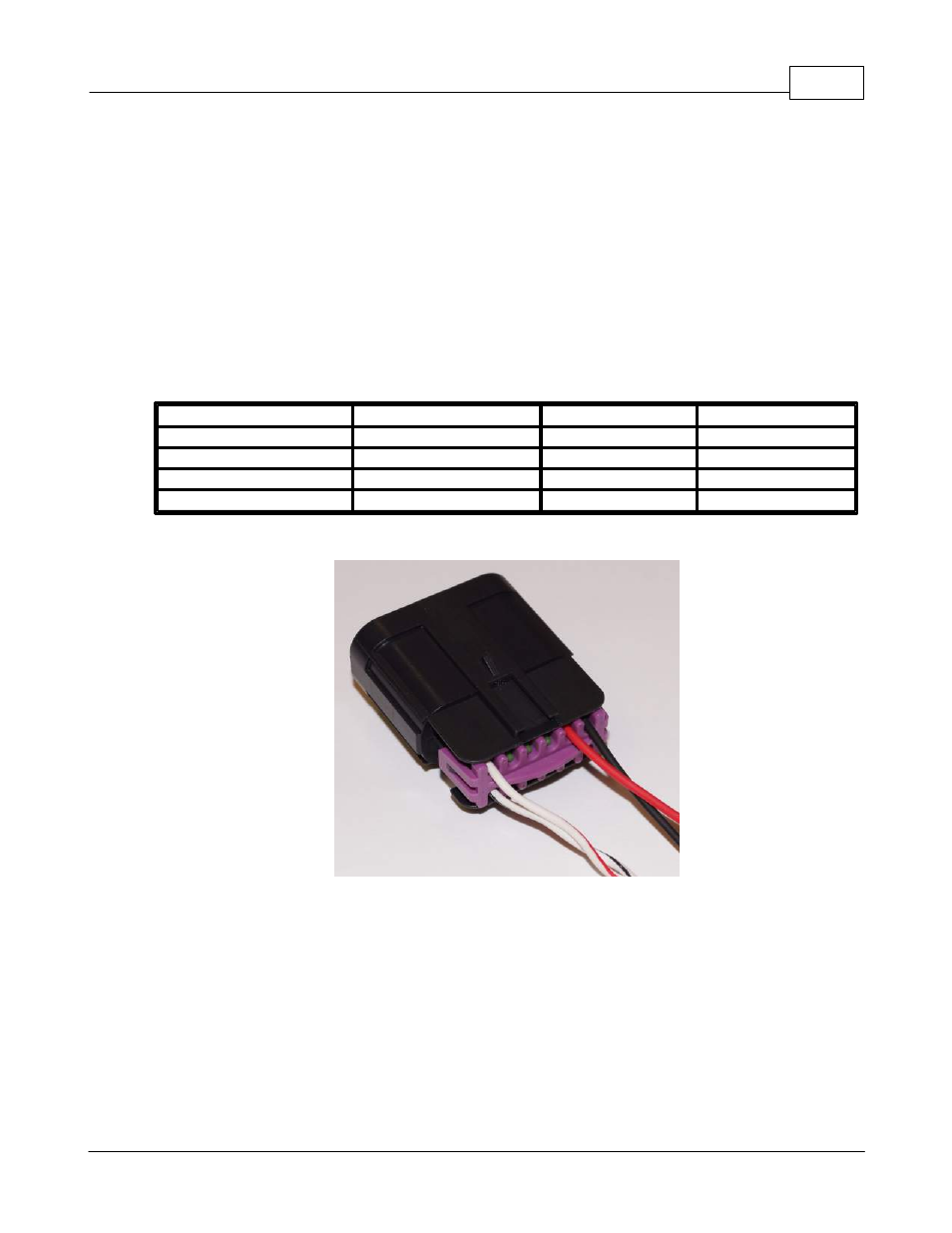

When these parts are installed on the CAN2-002 wires, it should look like this:
