Page 45
Using the software
45
© 2014 Lingenfelter Performance Engineering
4.2.1.1
Settings Menu
The settings menu has two options:
o
Units
o
CAN Message Setup

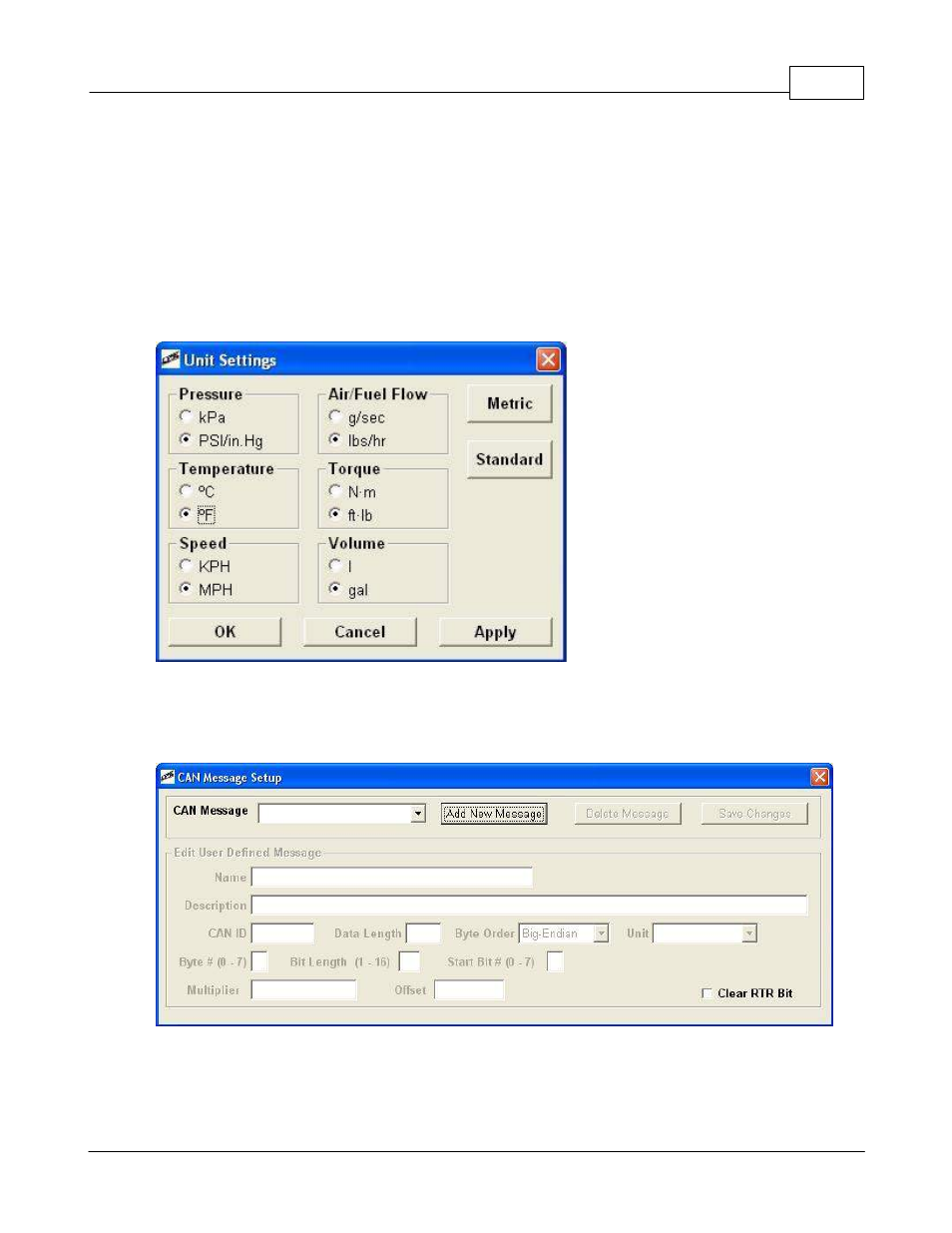

4.2.1.1.1 Unit Settings
The Units option is used to select the desired units for all of the outputs. These settings apply to all four
tabs.
4.2.1.1.2 CAN Message Setup
The CAN Message Setup option is for advanced users. This section allows users to manually configure
new CAN messages. The CAN Message Setup window appears as follows:
To create a new CAN message, click on the Add New Message button:
