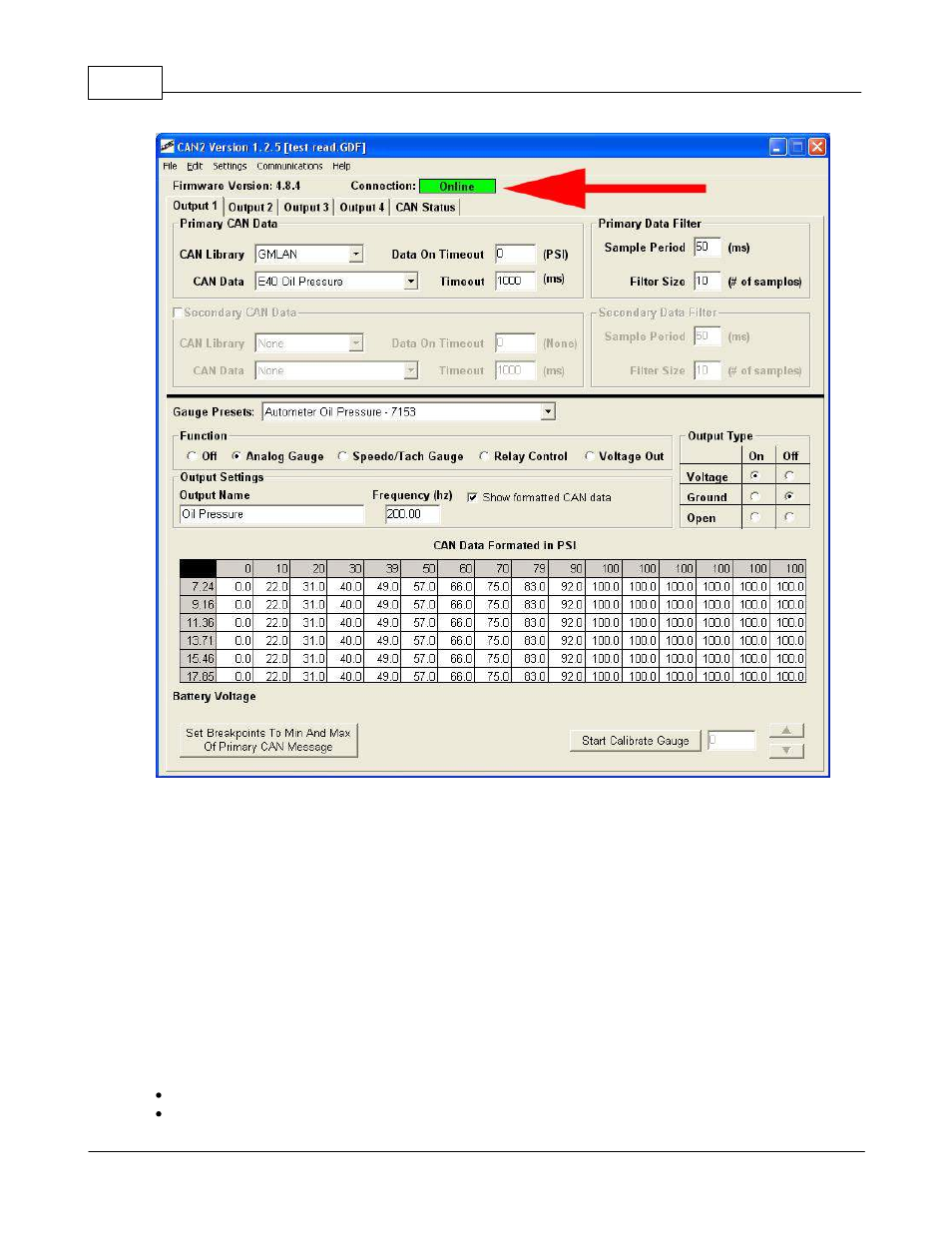

After the "Connection:" text is a box that will be red and indicate "Offline" when the CAN2-002 is not
connected and will be green and show "Connected" when the CAN2-002 module is connected.
You can also use this to connect or disconnect from the CAN2-002 module. When you are connected
you can click on the green box to disconnect. When you are disconnected you can click on the red box
to connect. This performs the same function as going to the drop down menu under "Communications"
and using the "Connect" option.
When you are connected to the CAN2-002 module it will also show you the firmware level of the CAN2-
002 module. This is will listed after the text "Firmware Version:".
4.2.3 Output Tabs
The CAN2-002 module can provide up to four outputs. The programming of the CAN signal each output
will use and what it will do with that signal is configured using the four Output tabs found at the top of the
software window, just below the drop down menu items. These tabs are labeled:
Output 1
Output 2
