Page 32: Figure 6-1 line 1 statistics, Chapter 6: line and tunnel settings
XPort Pro User Guide
32
6:
Line and Tunnel Settings
This chapter describes how to view and
configure lines and tunnels. It contains the
following sections:
Line Settings
View statistics and configure serial interfaces by using the Line web page. Serial interfaces are
referred to as lines in this user guide, and a different number of lines, from 1 to 32, may be
available for selection depending on your product.
The following sub-menus may be used for a selected line number:
Line Statistics—Displays statistics for the selected line number. For example, the bytes
received and transmitted, breaks, flow control, parity errors, etc.
Line Configuration—Enables the change of the name, interface, protocol, baud rates, and
parity, etc.
Line Command Mode—Enables the types of modes, wait time, serial strings, signon
message, etc.
The following sections describe the steps to view and configure specific line number settings.
These instructions also apply to additional line instances of the device.
Line Statistics
This read-only web page
shows the status and
statistics for the serial line
selected at the top of this
page.
1.
Select Line on the menu
bar. The Line web page
appears.
2.
Select a line number at
the top of the page.
3.
Select Statistics. The
Line Statistics page for
the selected line appears.
4.
Repeat above steps as
desired, according to
additional line(s)
available on your
product.

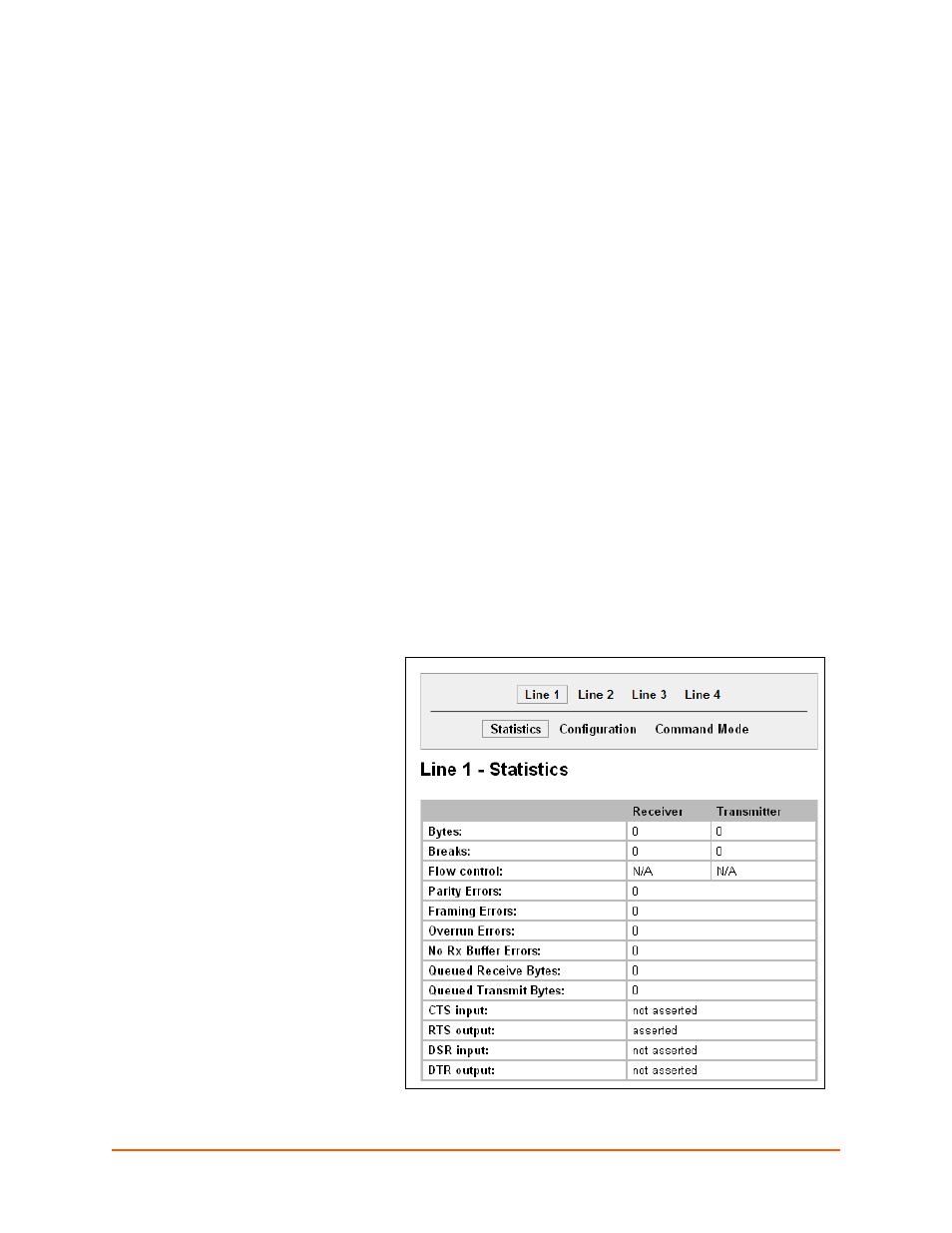

Figure 6-1 Line 1 Statistics
Note:
The number of lines and tunnels
available for viewing and configuration differ
between Lantronix DeviceLinx products. For
example, an XPort Pro and EDS1100 support
only one line while other device networking
products (such as , EDS2100, EDS4100, XPort
AR, EDS8/16PS and EDS8/16/32PR) provide
additional lines and tunnels.
