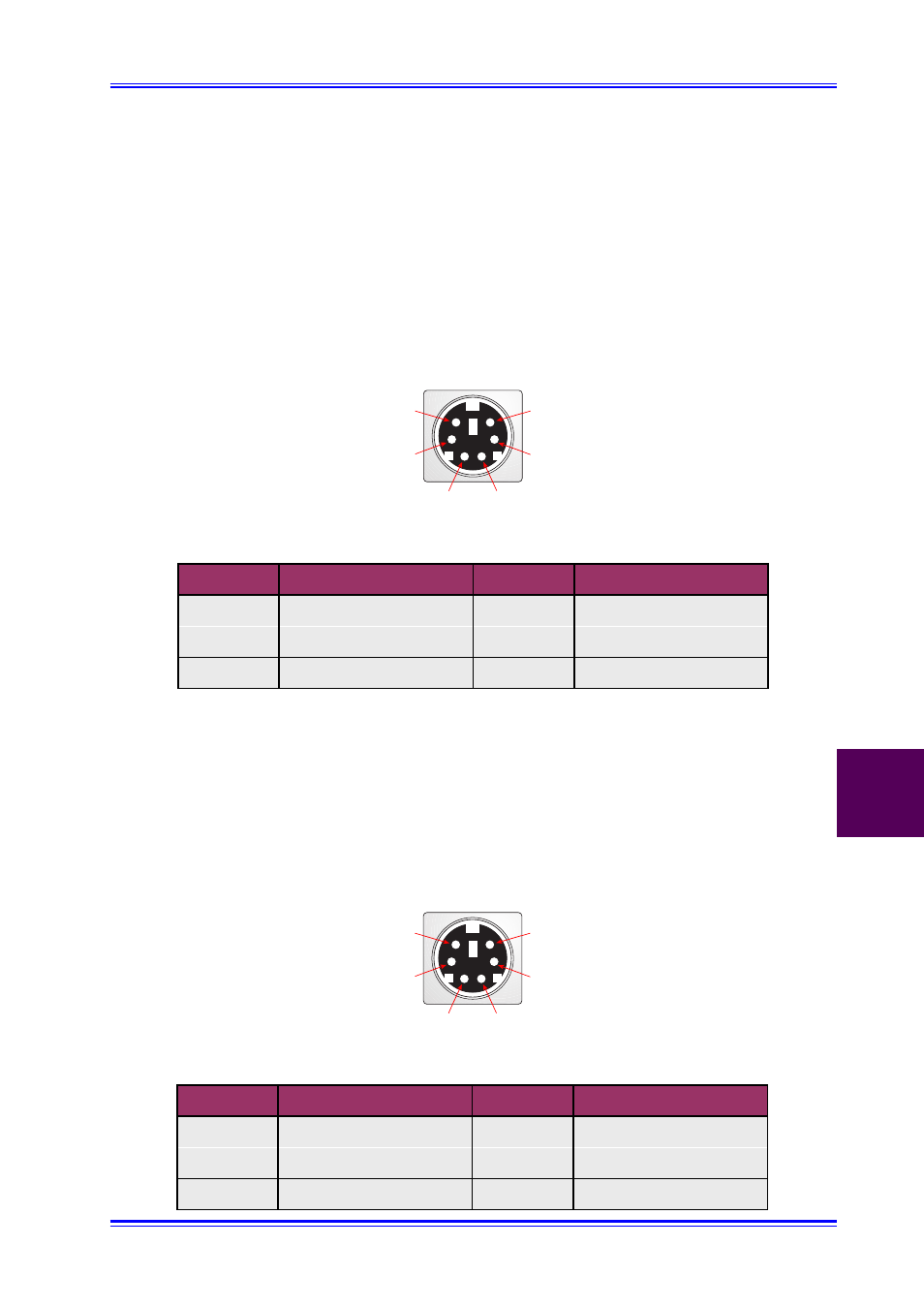

B1.6 Keyboard Interface
A front-panel with COM1, COM2 mouse and keyboard interfaces is either integrated into an 8HP
standard CPU front-panel or available as a separate 4HP unit. The piggyback located behind these
interfaces connects to the CPU-mounted J11 connector.
Figure B1.6 Keyboard Interface Pinout
B1.7 Mouse Interface
A front-panel with COM1, COM2 mouse and keyboard interfaces is either integrated into an 8HP
standard CPU front-panel or available as a separate 4HP unit. The piggyback located behind these
interfaces connects to the CPU-mounted J11 connector.
Figure B1.7 Mouse Interface Pinout
Table B1.6 Keyboard Connector Signals
2
1
4
6
3
5
2
1
4
6
3
5
Table B1.7 Mouse Connector Signals
Pin No.
Signal
Pin No.
Signal
1
Data
2
N/C
3
GND
4
+5V
5
CLK
6
N/C
Pin No.
Signal
Pin No.
Signal
1
Data
2
N/C
3
GND
4
+5V
5
CLK
6
N/C
