Interfaces
ICP-PIII
3.33 Connecting the PIII to the Inova IPB-FPE12
Appendix C provides more information on the IPB-FPE12 and its derivatives. Figure 3.33 shows
how the CPU connects to the piggyback by a length of flex-cable. The illustration also shows the
IPB-FPE8 connection (Appendix A)

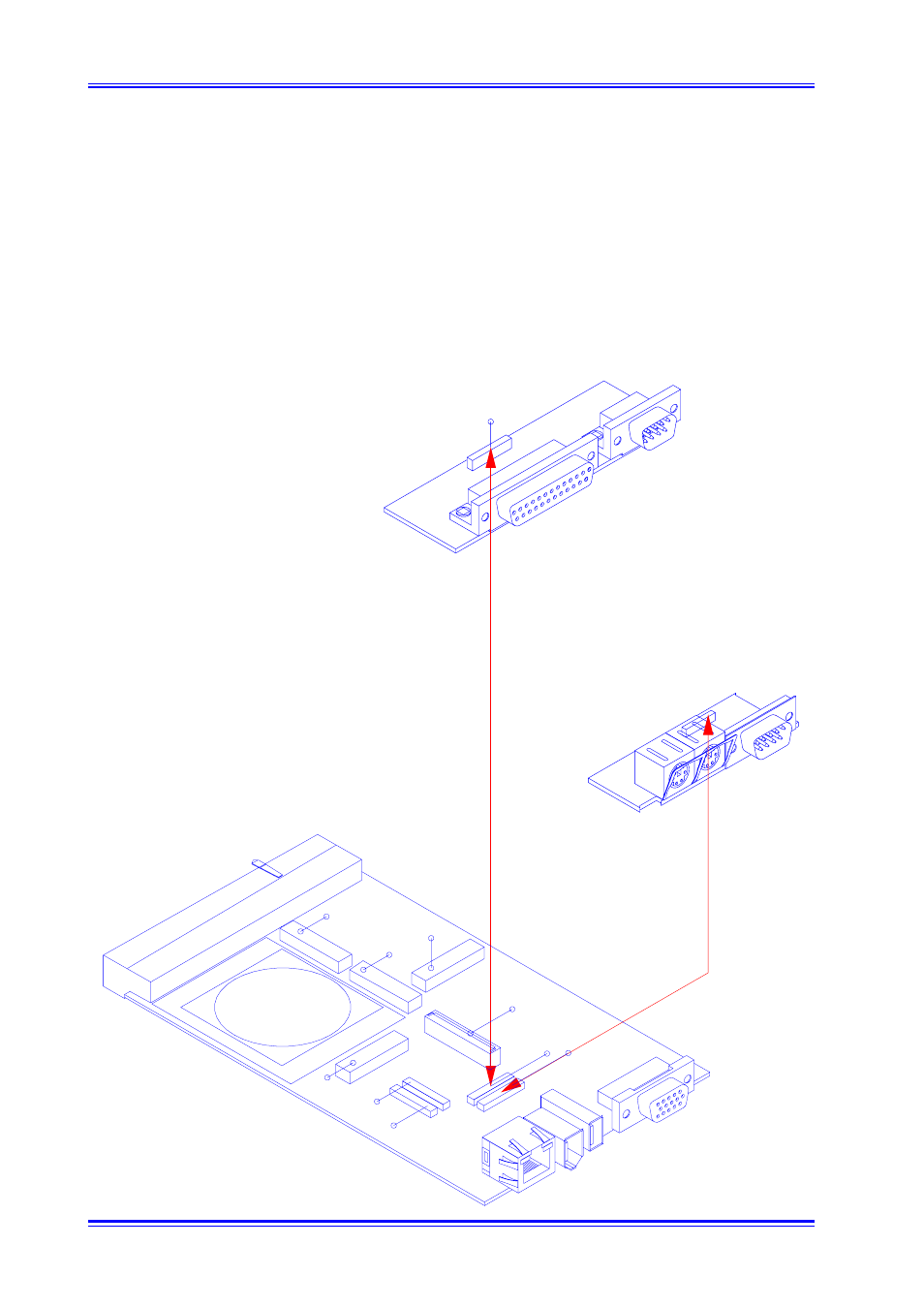

Figure 3.33 CPU to IPB-FPE12 Connection
J13
J11
J13
J10
J9
J4
J3
J14
J18
J6
PENTIUM III
