3.25 J19 USB Interface
J19 is located as standard on the front panel

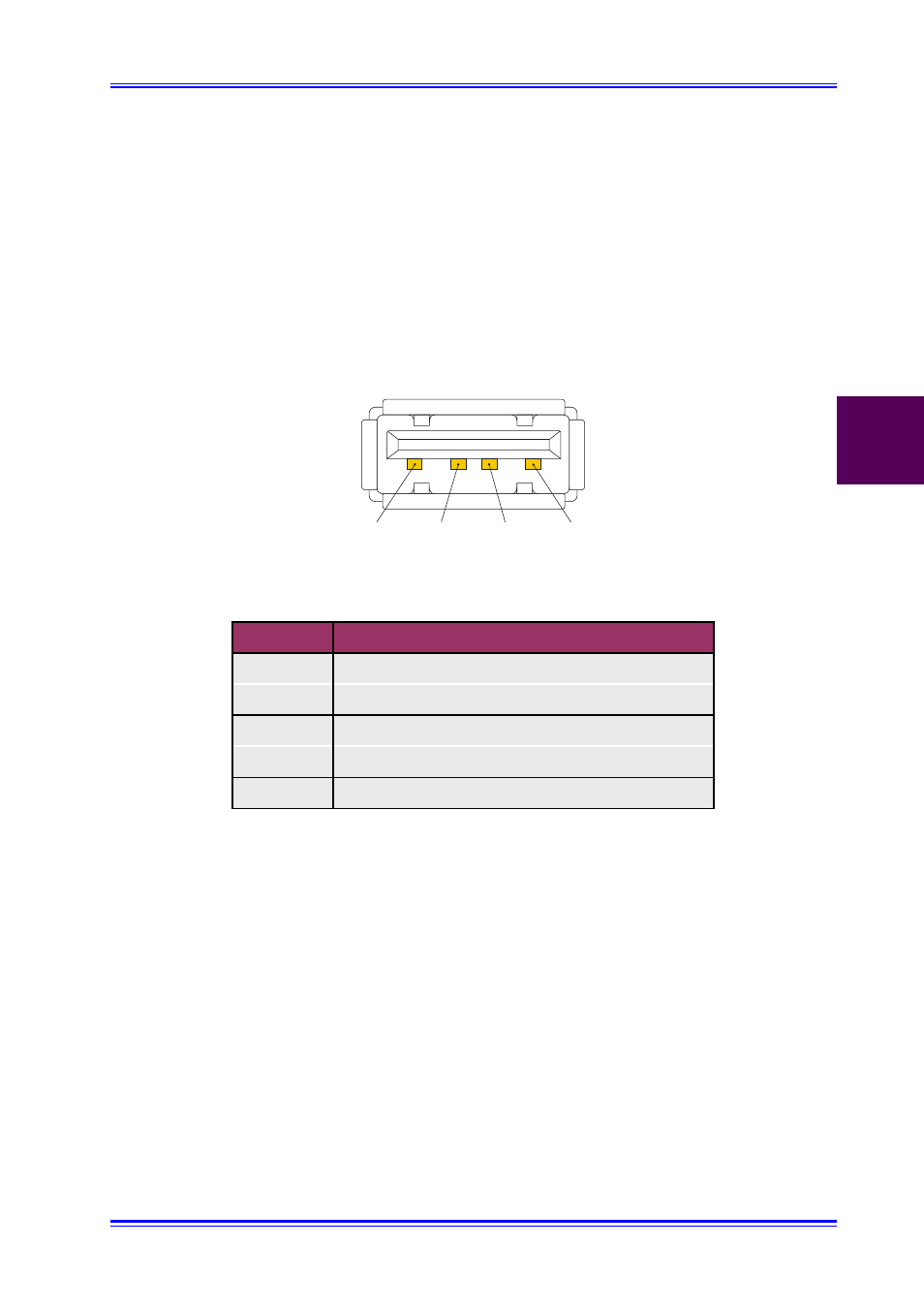

Figure 3.25 USB Interface Pinout
Table 3.25 USB Connector Signals
Pin No.
Signal
1
+5V
2
USB P0-
3
USB P0+
4
GND
Housing
PE
1
2
3
4
