Heat & Glo • 6000TRS-CE • 2049-900 Rev. R • 3/13 9

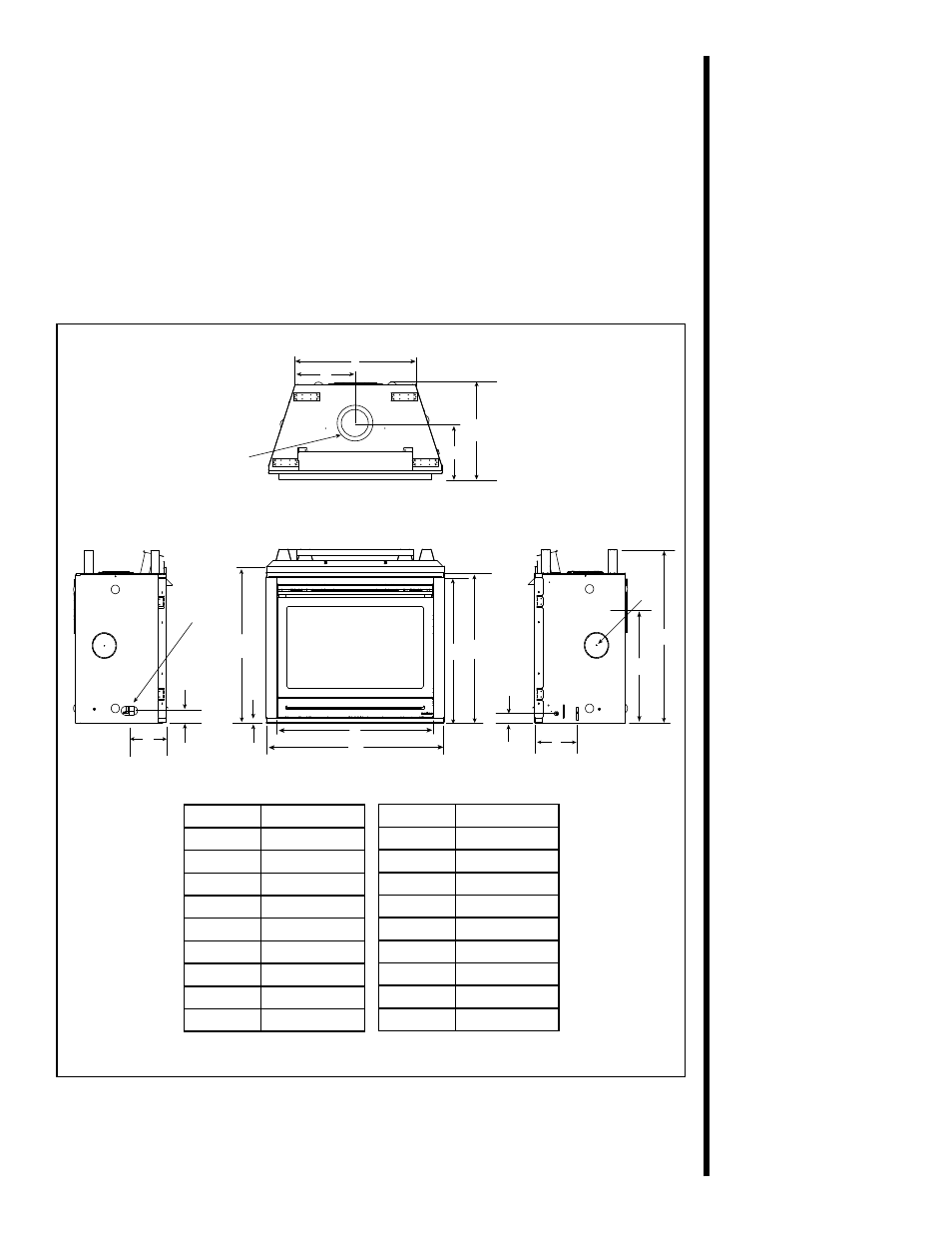

Figure 1. Diagram of the 6000TRS-CE
When planning a fireplace installation, it’s necessary to determine:
• Where the unit is to be installed.
• The flue system configuration to be used.
• Gas supply piping.
• Electrical wiring.
• Framing and finishing details.
• Whether optional accessories—devices such as a fan, wall switch, or remote control—are
desired.
If the fireplace is to be installed on carpeting or tile, or on any combustible material other
than wood flooring, the fireplace should be installed on a metal or wood panel that extends
the full width and depth of the fireplace.
A
B
C D
E
FRONT VIEW
TOP VIEW
LEFT SIDE RIGHT SIDE
F
G
H
I
J
K
L
M
O
P
GAS LINE
ACCESS
Q
R
N
CL
CL
Location Centimeters
J 54,6
K 29,7
L 72,4
M 36,2
N 21,6
O 73
P 21,6
Q 25
R 91,8
Location Centimeters
A 104,1
B 91,8
C 85,1
D 87,9
E 57
F 24,6
G 68,3
H 15,2 dia
I 101,9
