Heat & Glo • 6000TRS-CE • 2049-900 Rev. R • 3/13 17

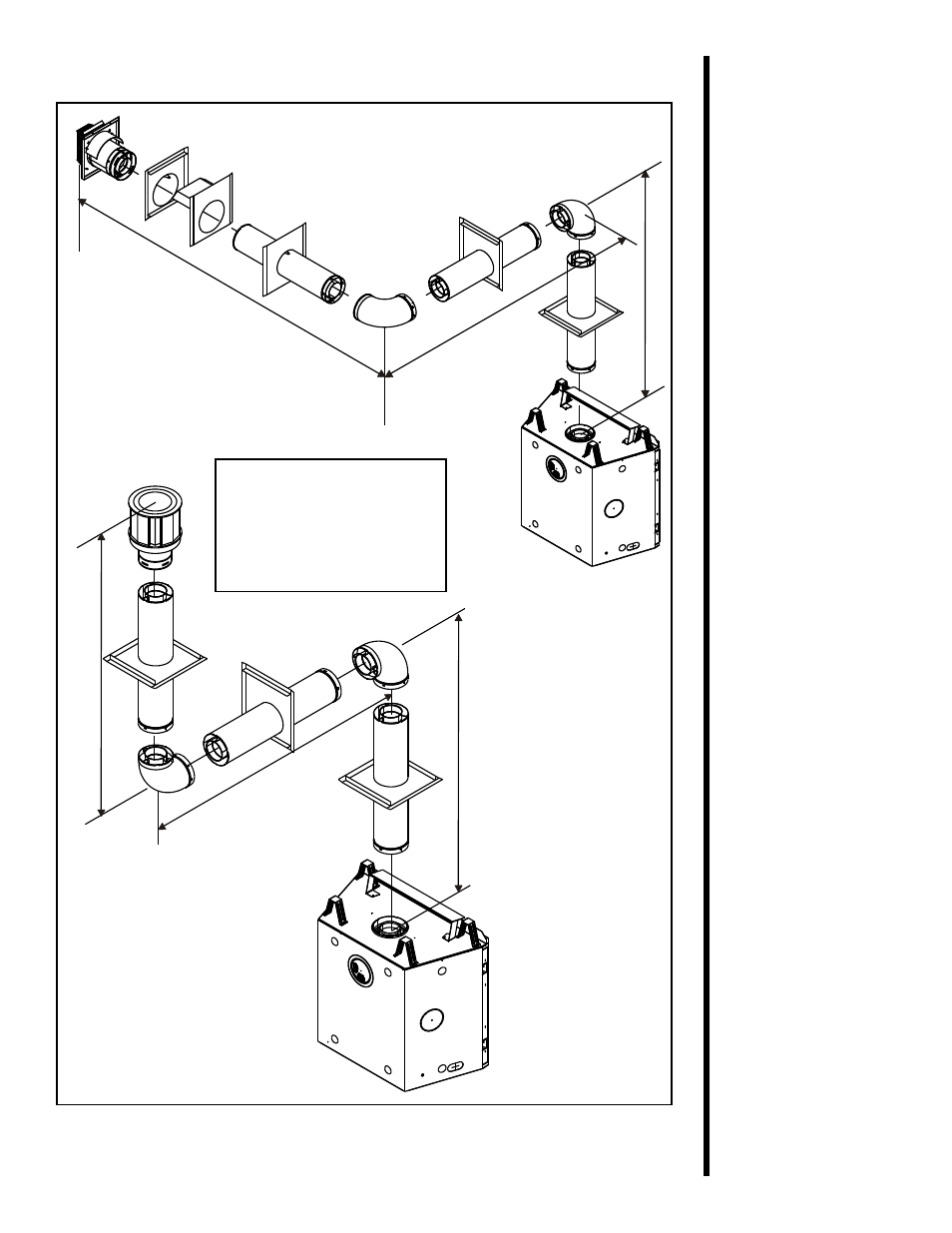

Figure 12. Flue with Two 90° Elbows
FLUE WITH TWO (2) 90° ELBOWS
v H + H
1
MIN. 30.5 cm MAX. 1.22 m
MIN. 61.0 cm MAX. 2.4 m
MIN. 91.4 cm MAX. 3.7 m
MIN. 1.22 m MAX. 4.9 m
V+H+H
1
= MAX. 11.8 m H+H
1
= MAX. 4.9 m
V+V
1
+H
1
= MAX. 12.97 m
H
1
H
V
V
V1
H
