Heat & Glo • 6000TRS-CE • 2049-900 Rev. R • 3/13 11
Framing should be
constructed of 2 X 4
lumber or heavier.
* Note: Dimension B taken from fin-
ished hearth frame. Dimensions D
and E taken from bottom of unit.
A
B
C
*
A B C D E
107 cm 102 cm 56 cm 68,3 cm 106 cm

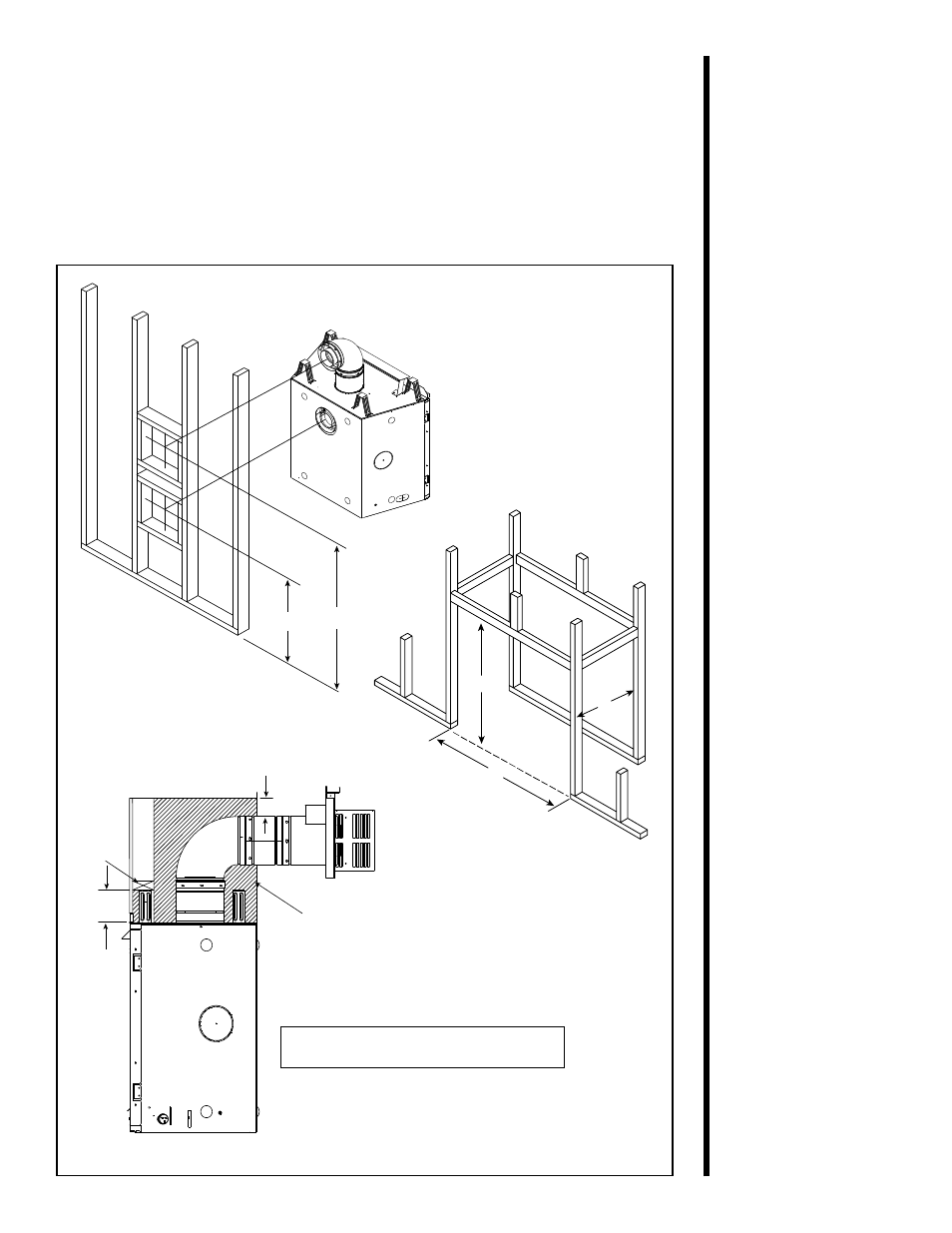

Figure 4. Framing Dimensions
cauTiON
Step 2
Framing the
Fireplace
measure fireplace DimeNsiONs, aND verify
framiNG meThODs aND wall cOveriNG
DeTails, befOre framiNG cONsTrucTiON
beGiNs.
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommodate
wall coverings and fireplace facing material. The diagram
below shows framing reference dimensions.
14 cm
8 cm
NON-COMBUSTIBLE ZONE
IS DEFINED BY 8 CM ABOVE
THE ELBOW FOR THE ENTIRE
WIDTH AND DEPTH (BEHIND
THE FRONT HEADER) OF
THE FIREBOX.
WALL
STUD
E* D*
