HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVP-SERIES
DVP-TRAP DVP-TVHW
FLUE SYSTEM TERMINATION KITS

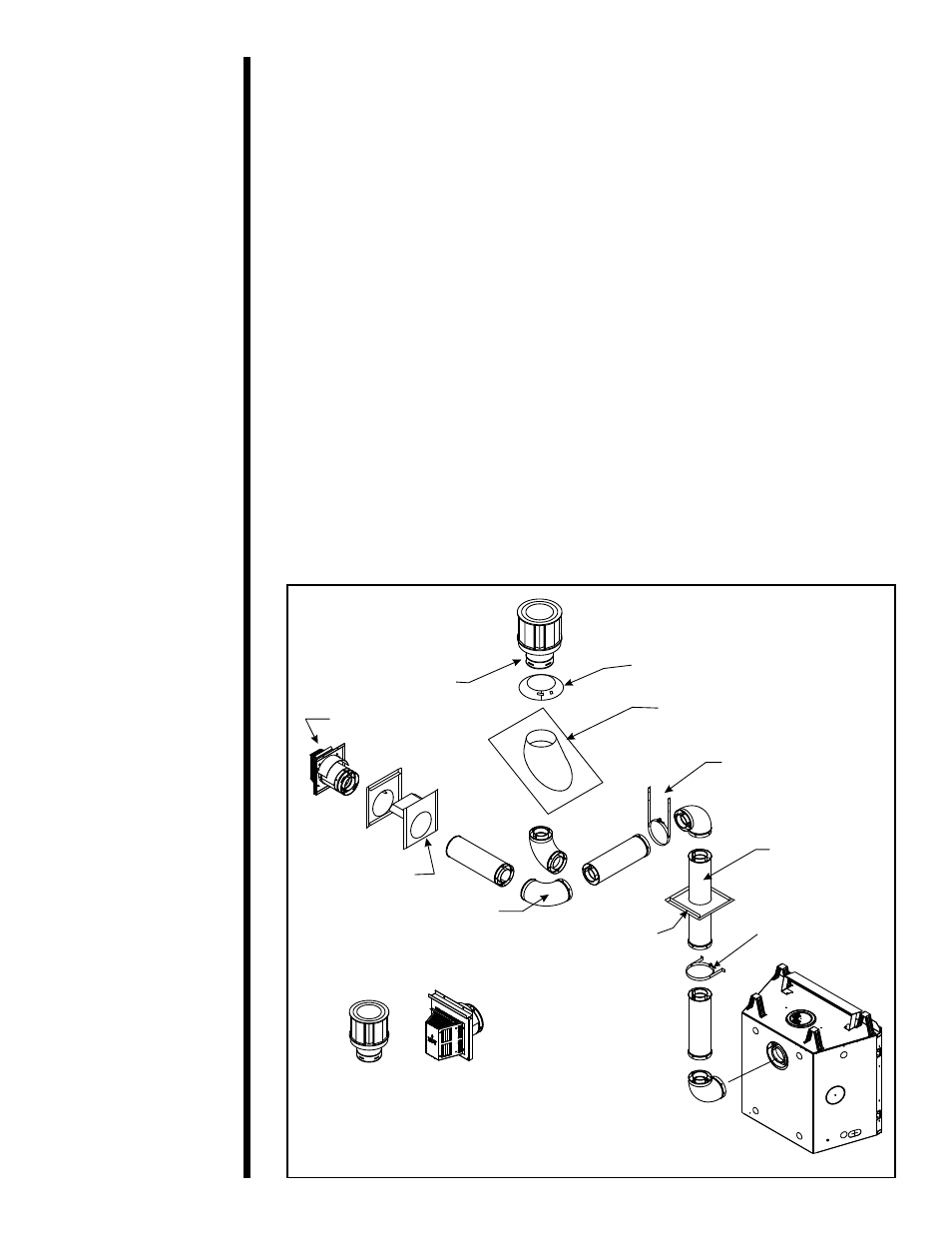

Figure 5. Flue Components and Terminations
A. Flue System Approvals
These models have flue starting collars on both the top and
the back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attached the
flue system. The starting collar sealing cap must remain on the
starting collar NOT used.
These models use DVP-series direct flue components when
using the TOP and REAR flue collars.
Approved flue system components are labeled for identification.
NO OTHER FLUEING SYSTEMS OR COMPONENTS MAY
BE USED. Detailed installation instructions are included with
each flue termination kit and should be used in conjunction with
this Installers Guide. Figure 4 shows flue system components
and terminations.
Identifying Flue Components
The flue systems installed on this gas fireplace may include one,
two, or three 90° elbow assemblies. The relationships of vertical
rise to horizontal run in flue configurations using 90° elbows
MUST BE strictly adhered to. The rise to run relationships are shown
in the flueing drawings and tables on the next several pages.
Note: Two 45° elbows may be used in place of one 90° elbow.
You MUST always maintain the MAXIMUM and MINIMUM rise-
to-run ratios in the flue system when using 45° elbows.
