Heat & Glo • 6000TRS-CE • 2049-900 Rev. R • 3/13 19
V
H
H1
V 1

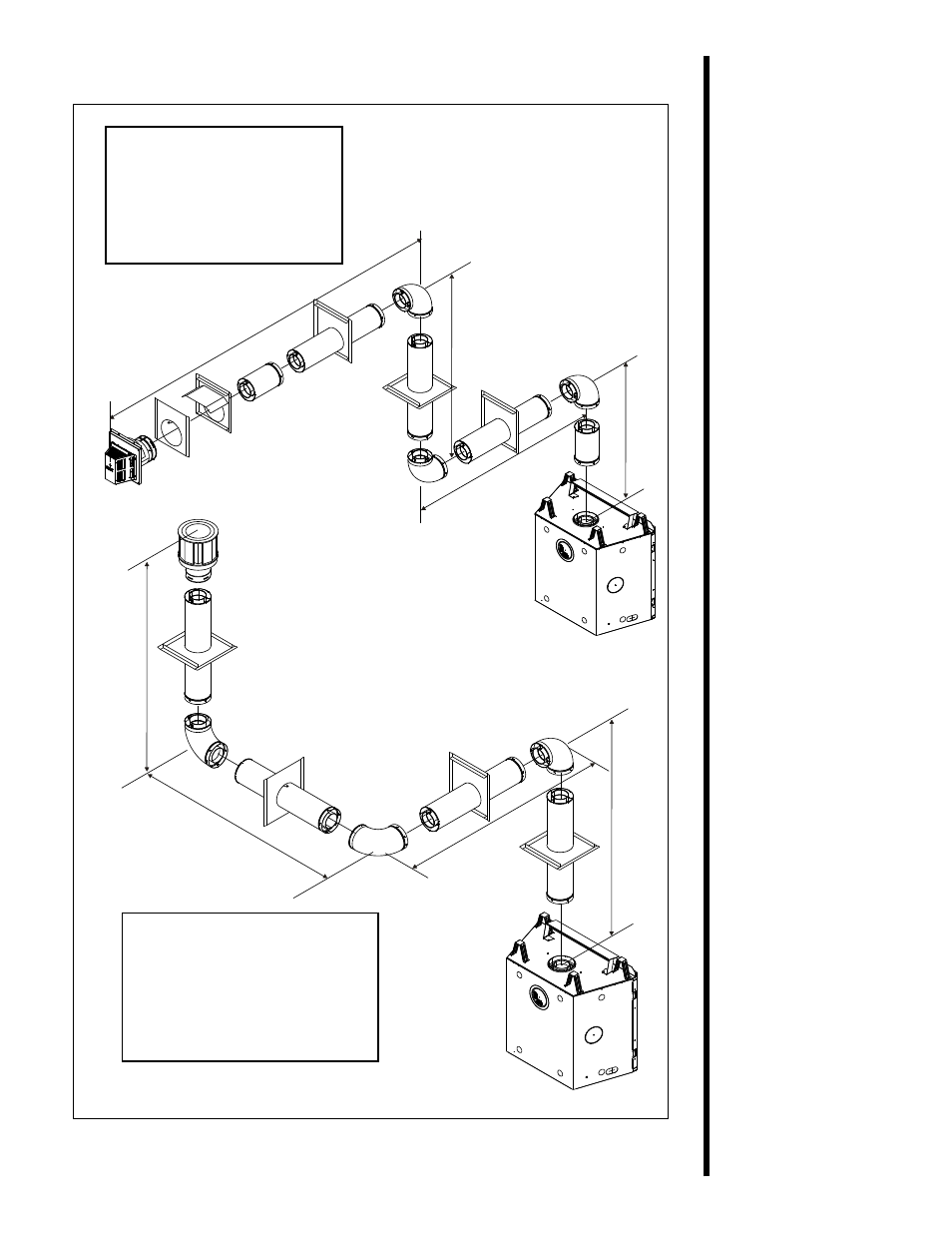

Figure 14. Flue with three 90° elbows
v H + H
1
MIN. 30.5 cm MAX. 1.22 m
MIN. 61.0 cm MAX. 2.4 m
MIN. 91.4 cm MAX. 3.7 m
MIN. 1.22 m MAX. 4.9 m
V + V
1
+ H + H
1
= MAX. 10.97 m
H + H
1
= MAX. 4.9 m
FLUE WITH THREE (3) 90° ELBOWS
v H + H
1
MIN. 30.5 cm MAX. 1.22 m
MIN. 61.0 cm MAX. 2.4 m
MIN. 91.4 cm MAX. 3.7 m
MIN. 1.22 m MAX. 4.9 m
V + V
1
+ H + H
1
= MAX. 10.97 m
H + H
1
= MAX. 4.9 m
FLUE WITH THREE (3) 90° ELBOWS
V
H
H1
V1
