Heat & Glo • 6000TRS-CE • 2049-900 Rev. R • 3/13
27
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
VERTICAL
WALL
TERMINATION
CAP
30,5 cm
X
ROOF PITCH
IS X/ 30,5 cm
LOWEST
DISCHARGE
OPENING
51 cm

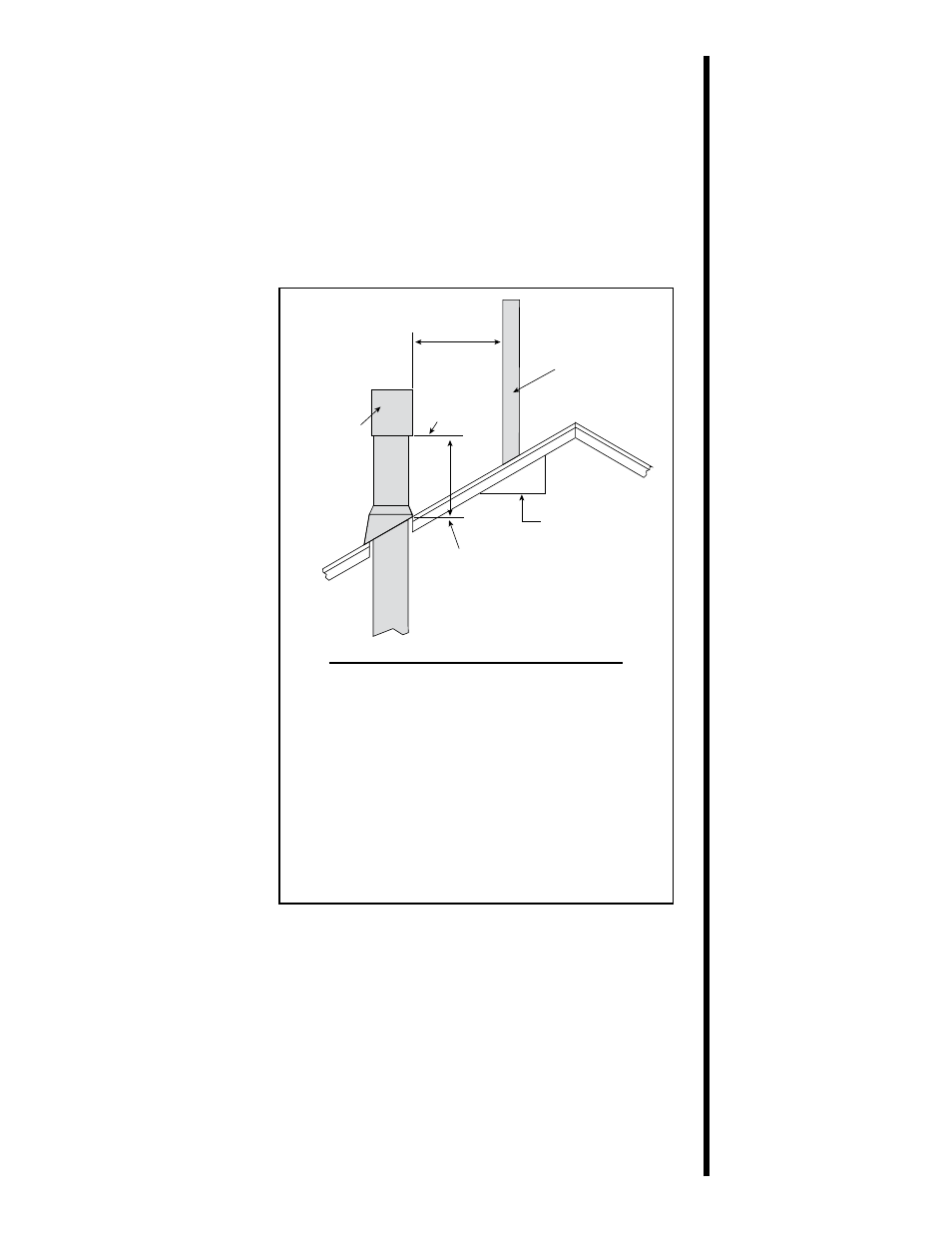

Figure 24. Minimum Height from Roof to Lowest Discharge
Opening
wARNING:FOLLOw NATIONAL REGULATIONS
AND CODES OF PRACTICE FOR MINIMUM CLEAR-
ANCES FROM GAS TERMINALS, AND PLACE-
MENT OF GAS TERMINAL.
This also pertains to vertical flue systems installed on
the outside of the building.
NOTE
Angle
H (Min.) M
0°-26.6° ............................................... 0.30*
26.6°-30.3° ............................................... 0.38*
30.3°-33.7° ............................................... 0.46*
33.7°-36.9° ............................................... 0.61*
36.9°-39.8° ............................................... 0.76
39.8°-42.5° ............................................... 0.99
42.5°-45.0° ............................................... 1.22
45.0°-49.4° ............................................... 1.52
49.4°-53.1° ............................................... 1.83
53.1°-56.3° ............................................... 2.13
56.3°-59.0° ............................................... 2.29
59.0°-60.3° ............................................... 2.44
*.91 M minimum in snow regions
