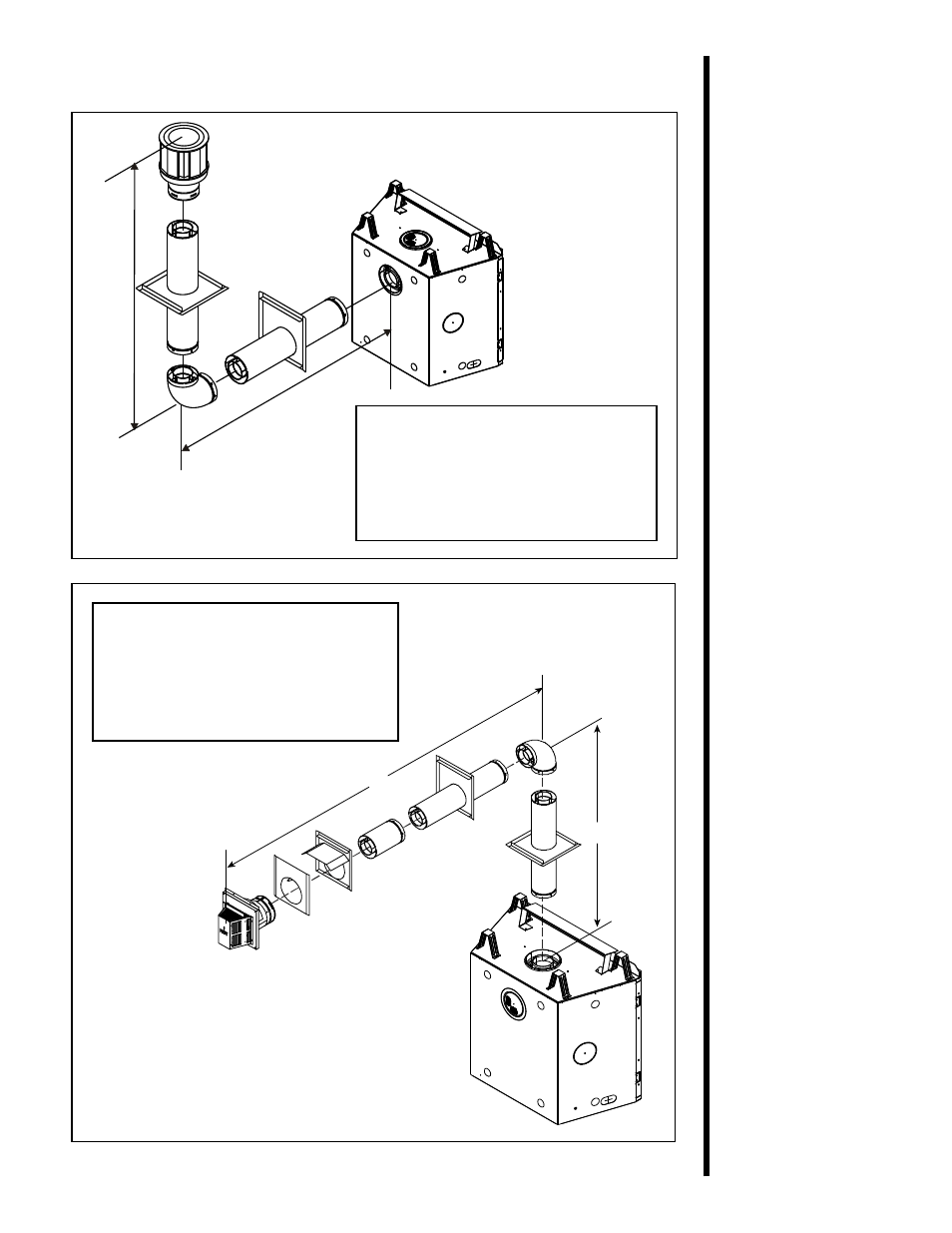

Figure 9. Flue with One 90° Elbow
Figure 10. Flue with One 90° Elbow
NOTE: For corner installations: A 15.2 cm MINIMUM
length of straight pipe must be first attached to the
fireplace before 90 o elbow. This will allow the flue pipe
to clear the top standoffs.
NOTE: If a 90º elbow is first attached to the unit, the
maximum horizontal run is 3 feet (91.4 cm).
H
V
FLUE WITH ONE (1) 90 o ELBOw
v H
MIN. 30.5 cm MAX. 61.0 cm
MIN. 61.0 cm MAX. 1.22 m
MIN. 91.4 cm MAX. 1.86 m
MIN. 1.22 m MAX. 2.48 m
MAX. 7.3 m MAX. 2.48 m
FLUE WITH ONE (1) 90 o ELBOw
v H
MIN. 30.5 cm MAX. 1.22 m
MIN. 61.0 cm MAX. 2.4 m
MIN. 91.4 cm MAX. 3.7 m
MIN. 1.22 m MAX. 4.9 m
V + H = MAX 7.3 m H = MAX. 2.4 m
V
H
