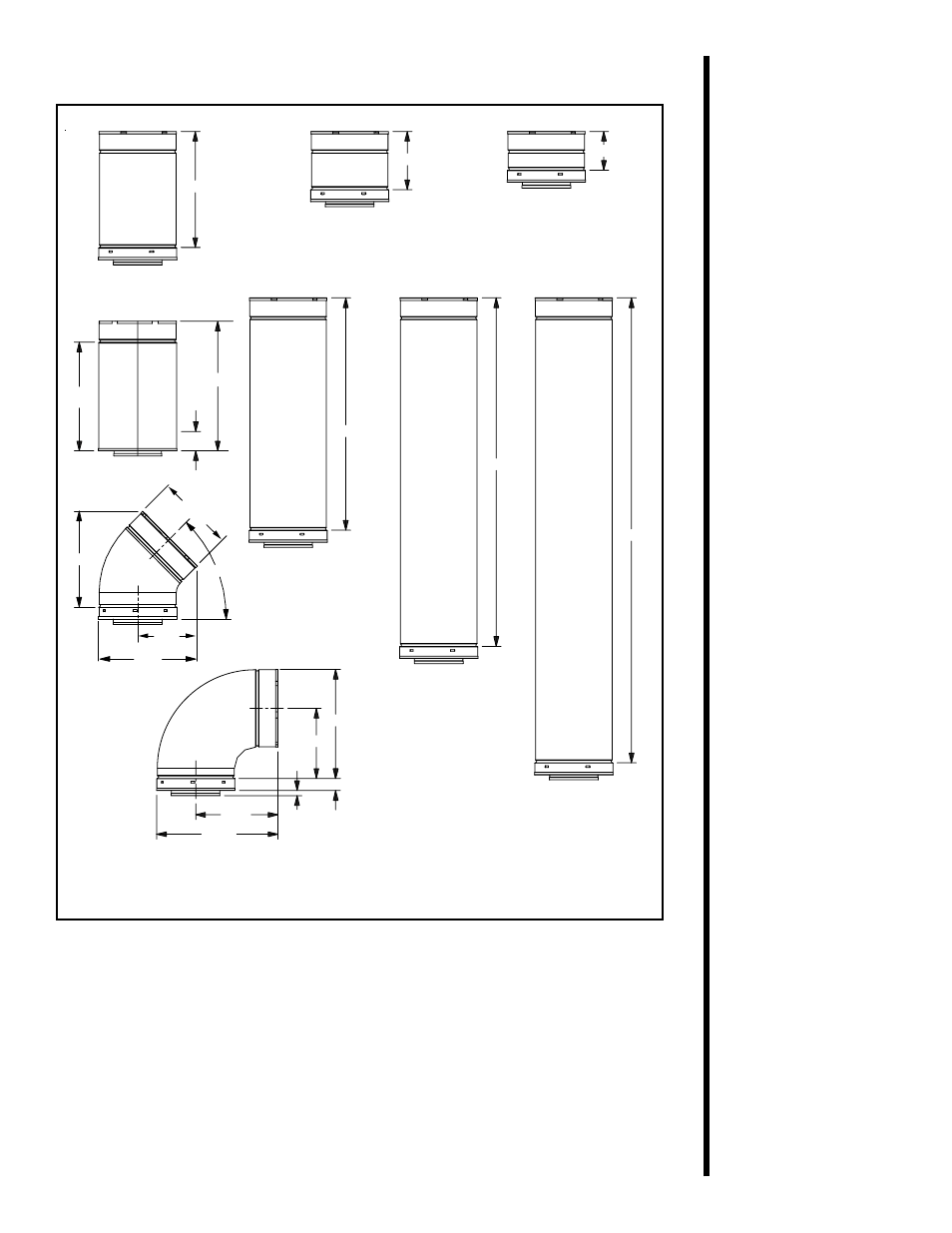

Figure 6. DVP-Series Balanced Flue Component Specifications (127 mm inner pipe / 203 mm outer pipe)
NOTE: PIPES OVERLAP 3,2 cm AT EACH JOINT.
DVP90ST
31.9 cm
28.6 cm
18.4 cm
3.2 cm TYP
1.3 cm TYP
21.7 cm
DVP36
DVP48
121.9 cm
61.0 cm
91.4 cm
10.2 cm
15.2 cm
DVP4
DVP6
30.5 cm
DVP12
5.1 cm
MIN.
DVP12A
31.0 cm
MAX.
DVP24
DVP45
36.2 cm
25.1 cm
20.3
cm
45.0º
26 cm
26 cm
