Eiki LC-X71 LC-X71L User Manual
Page 8
- 8 -

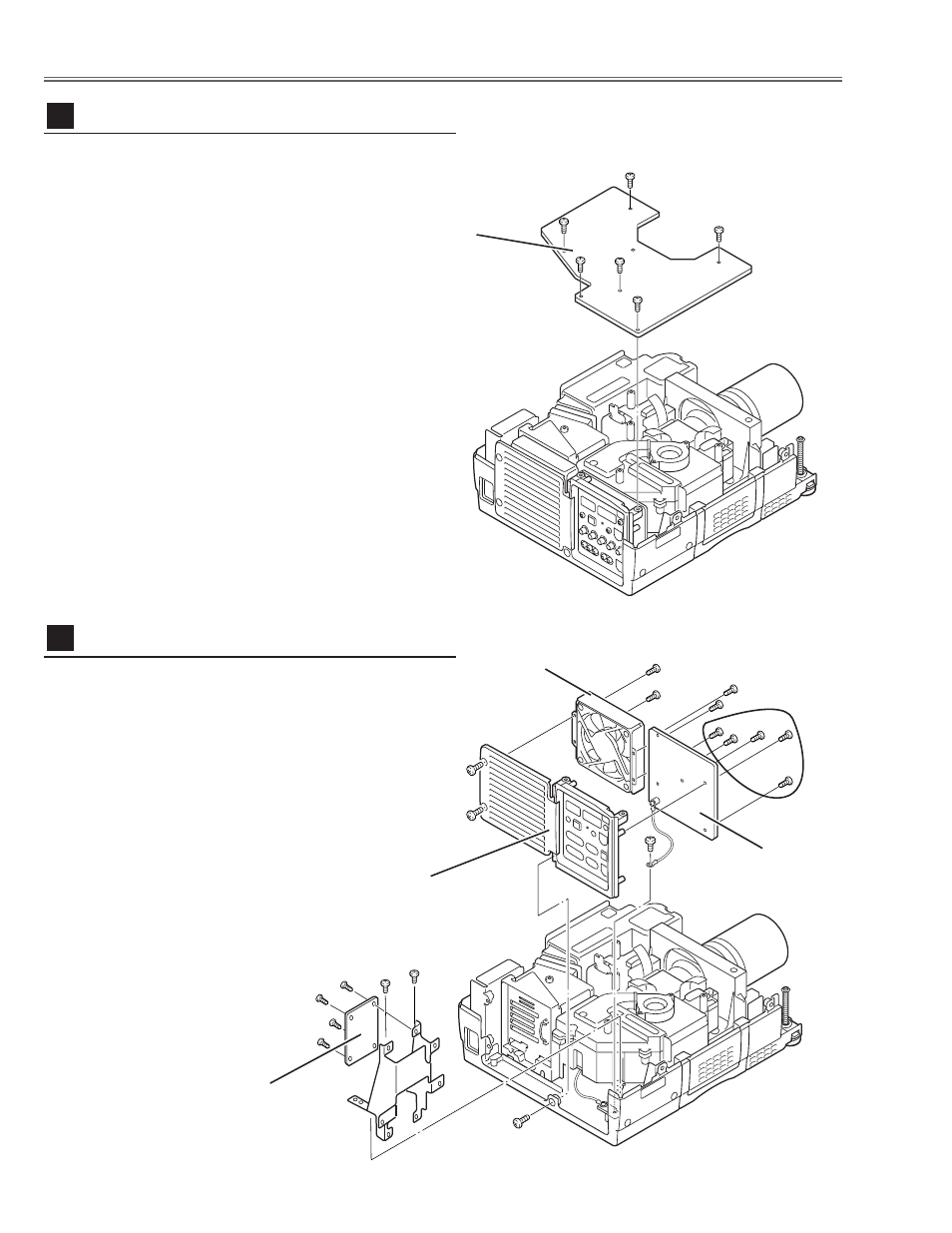

Mechanical Disassemblies
1
Remove 6 screws to take the Main Board upward.
Fig.3
Fig.4
1
Remove 1 screw
A
and take the Rear Panel ass’y
upward off.
2
Remove 4 screws
B
to take the fan (FN905) off.
3
Remove 5 screws
C
and 1 screw
D
to take AV Board
from the Rear Panel ass’y off.
4
Remove 2 screws
E
and grounding leads and then pull
up the I/F Board and Holder assy from the bottom cabi-
net.
5
Remove 4 screws
F
to take the I/F Board.
Main Board removal
3
AV, I/F Board & Rear Panel removal
4
Main Board
A
B
B
B
B
C
D
Rear Panel Ass’y
FN905
AV Board
I/F Board
F
F
F
F
E
E
