- 13 -

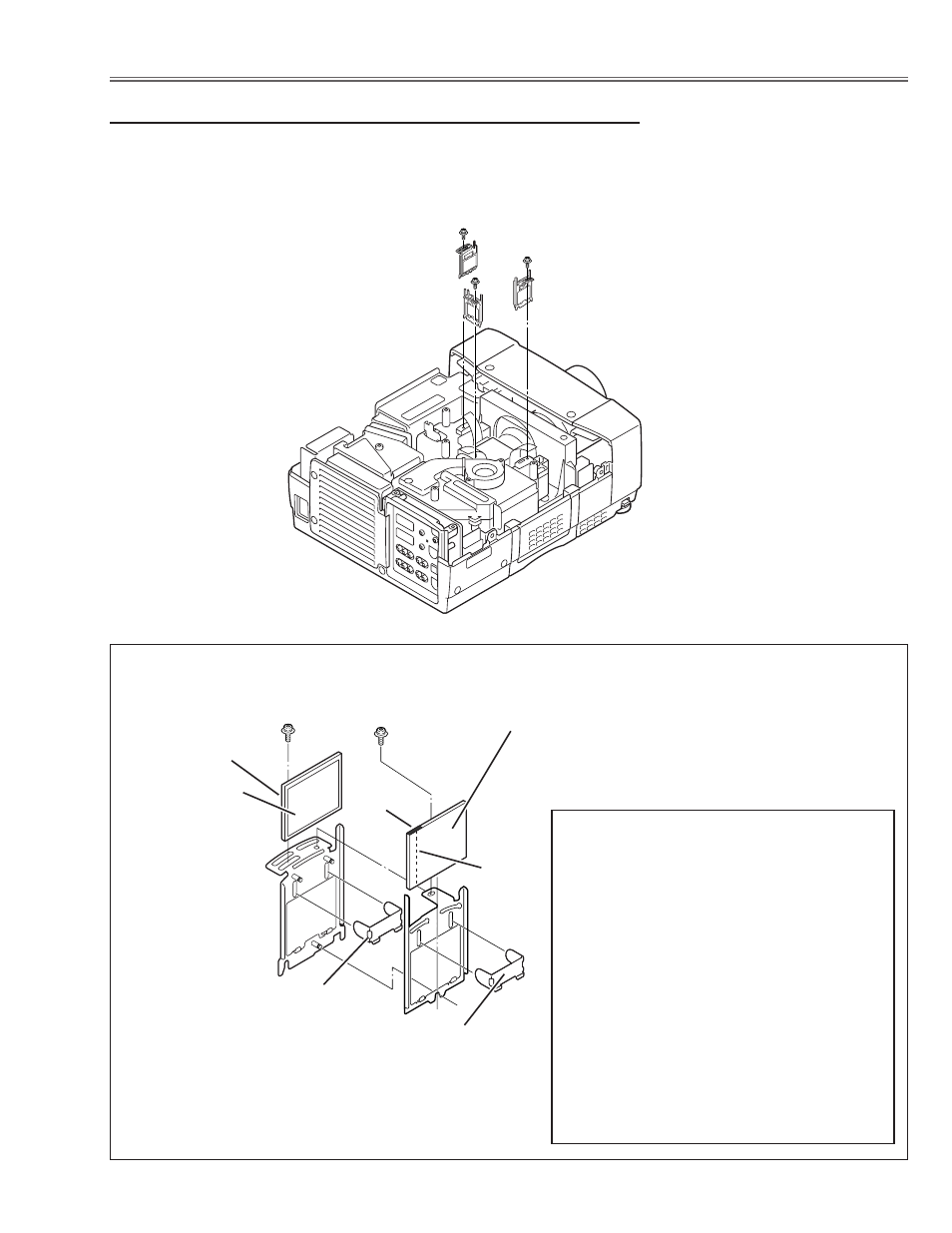

Optical Pats Disassemblies
1 Remove each hex screw A and pull the Polarized Glass-In ass’y upward.
2 Remove each hex screw B and pull the Optical Filter (HCP) ass'y upward.
3 Remove the stoppers and take the polarized glasses and optical filters off
upward.
Polarized Glass-In removal
Fig.3- 1
Polarized glass
Optical filter (HCP)
There are 2 types combination of the polarized
glass and the optical filter linked with the LCD/
Panel Prism Ass'y.
Type-L (LCD/Panel Prism Ass'y)
R: Black or green marking and 1 gap
G: Red marking and 2 gaps
B: Black or green marking and 1 gap
Type-R (LCD/Panel Prism Ass'y)
R: Red or blue marking and 2 gaps
G: Black marking and 1 gap
B: Red or blue marking and 2 gaps
* See Fig.3-2 for the mounting direction of the
parts.
A
B
Optical filter (HCP)
Film sheet(*1)
Marking(*2)
Gap(*2)
*1 The Polarized
Glass-In should be
placed as the film
sheet comes to
LCD panel side.
Fig.3- 2
Stopper
Stopper
*2 The Optical Filter (HCP) should be placed
as the colored marking comes to upper
side and the gap comes to the Polarized
Glass-In.
