A

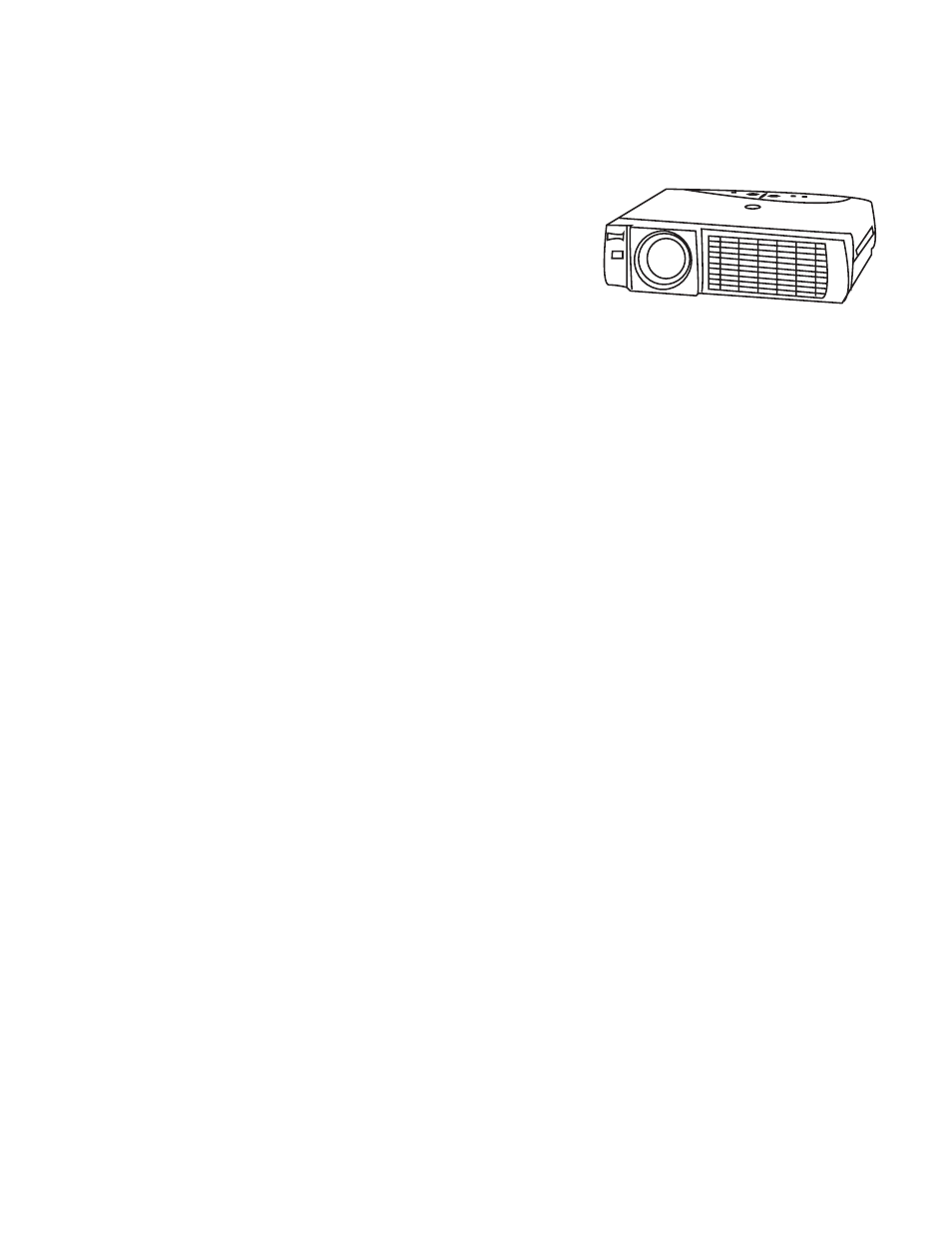

LC-XNB5MS
XGA
Notebook
Projector
KEY FEATURES: Model LC-XNB5MS
Weighs less than 10 lbs! Footprint similar to a legal notepad!
2500 ANSI Lumens, 85% uniformity, and 400:1 contrast ratio.
Extremely quiet operation: fan noise as low as 36 dBA in Eco-Mode
3 panel LCD imaging delivers a rich, color saturated picture.
True XGA resolution. SXGA, XGA, SVGA, and VGA compatible.
Smart data compression / expansion, and video scaling.
Power zoom and focus. Digital keystone correction.
Wireless remote with mouse . 7X digital zoom.
Accepts Composite, S, and Component Video in all major standards.
Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.
Supports HDTV Input at 480i/p, 575i/p, 720p, 1035i, and 1080i.
3 Year* Projector Warranty!
Included Accessories: Owner’s Manual. AC Power Cord. Lens Cover. HD15 (VGA type) Computer Input Cable (DVI-I~HD15).
Stereo Audio Cable. Composite Video Cable. Wireless Remote Control With Mouse & Batteries (AA x 2). Mouse cable for
computer PS/2 Port. Soft Carry Bag.
Optional Accessories: Replacement Lamp. MAC Adapter. MAC Monitor Cable. 9 Pin Serial cable for mouse and RS-232 communications.
Mouse cable for ADB port. Luggage-Style ("wheelie") Carrying Case with Wheels, Telescoping Handle, and Detachable Computer Compartment.
ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount. Ceiling Post and Plate. 33’ (10m) Mouse Extension Cable for
Control Port. Media Card Imager (Compact Flash Computerless Slide Show System). Wireless Imager (Wi-Fi Content Delivery and Projector
Control System).
SPECIFICATIONS: Model LC-XNB5MS
Screen Brightness 2500 ANSI Lumens / 2000 in Eco-Mode
Illumination Uniformity 85%
Size of Color Palette 16.7 Million
Contrast Ratio 400:1 (Full ON/OFF)
Horizontal Resolution 800 TV Lines
Projection Lamp 200 Watt UHP
Estimated Lamp Life 2000 Hours
Imaging System 0.9" PolySilicon active matrix TFT Panels x 3
Screen Pixels 1024 x 768
Total Pixels 2,359,296
Lens Type Power Zoom and Focus
Lens Specs Speed: f:1.9~2.1; FL: 0.838~1.009 in. (21.3~25.6 mm)
Lens Ratios Zoom Max:Min: 1.2:1; Throw:Width: 1.15~1.39:1
Image Diagonal 31~300 in. (78.74~762 cm)
Image Width 2~20 ft. (0.6~6.1 m.)
Throw Distance 3.6~27.7 ft. (1.1~8.44 m.)
Front Elevation / Maximum Tilt up to 15.6 0 up / +/- 20 0
Anti Keystone Fixed Image Offset, Ratio (Top:Bottom) 9:1
Vertical Keystone Correction Digital: up to 20° up or down
Horizontal Keystone Correction Digital: up to 10° left or right
Scanning Frequency Auto: H Sync. 15-100kHz; V Sync. 50-100Hz
Dot Clock 140 MHz
Image Orientation Normal, Reversed, Inverted
Local Control / Power Management Full Function / Auto Shut-Off
Remote Proj & Mouse Ctrl Wireless (Infra Red)
Control Port (Mouse / RS-232) USB x 1, Mini DIN 8 Pin x 1
Computer Native Resolution 1024 x 768 (XGA)
Computer: Compatibility SXGA, ~ VGA
Computer: Formats 1280x1024, ~ 640x480
Computer: Higher Resolutions Displayed panned or Smart Compressed
Computer: Lower Resolution Displayed normal or Smart Expanded
Computer: Channels 1
Computer: Inputs DVI-I x 1 (HD15 via Supplied Input Cable)
Computer: Audio In Stereo: MiniStereo x 1
Computer: Monitor Out HD15 x 1
Video: Compatibility NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N
Video: Formats Supported Normal 4:3 and Wide Screen 16:9
Video: Image Sizing Video Scaling Technology
Video: Channels 1
Video: In RCA x 3 (Composite/Component: Y,Pb/Cb,Pr/Cr) S-Video x 1
Video: Audio: Input
RCA x 2 (L&R)
Audio: Amplifier Mono: 1 Watts RMS
Audio: Built In Speakers 1.58 x 1.18 in. (4x3cm) x 1
Audio: Line Output RCA x 2 (L&R)
Fan Noise 38 dBA / 36 dBA in Eco-Mode
Cabinet Size** (HxWxD) 3.5 x 13.1 x 10.3 in. (89.5 x 333 x 260.9 mm.)
** excluding foot
Weight 9.7 lbs. (4.4 kg)
Packaged Size (H x W x D) 15 x 18 x 14 in. (379 x 457 x 356 mm)
Packaged Weight 19.4 lb (8.8 kg)
Power Requirements 100-240V AC, 50/60Hz
Power Consumption / Heat 300 W / 1024 BTU/hr (258 Kcal/hr)
Power Cord 10’ (3M) Type 3, Detachable
Safety Compliance UL Listed
Security Facilities Kensington® Security Slot
Operating Temperature 41~95 0 F (5~35 0 C)
User Maintenance Clean Air Filter, Replace Lamp
Warranty: Projector 3 Yr. / 6000 Hr. *(Parts & Labor to Correct Defects)
Warranty: Lamp
90 Days (Failed Lamp Replaced Pro-Rata
* Whichever occurs first
Specifications subject to change without notice. ©2003 Eiki International, Inc. Issued February 15, 2003
Eiki International, Inc., 30251 Esperanza, Rancho Santa Margarita, CA 92688-2132. Tel: 800-242-3454; Fax: 800-457-3454, E-mail: [email protected]
In Canada: 310 First St., Unit 2, P.O. Box 156, Midland, ON L4R 4K8. Tel: 800-563-3454, Fax: 800-567-4069, E-mail: [email protected]
Fax-on-Demand: (Toll Free) 877-345-4329 Visit our World Wide Web site: http://www.eiki.com
