Optical Parts Disassemblies

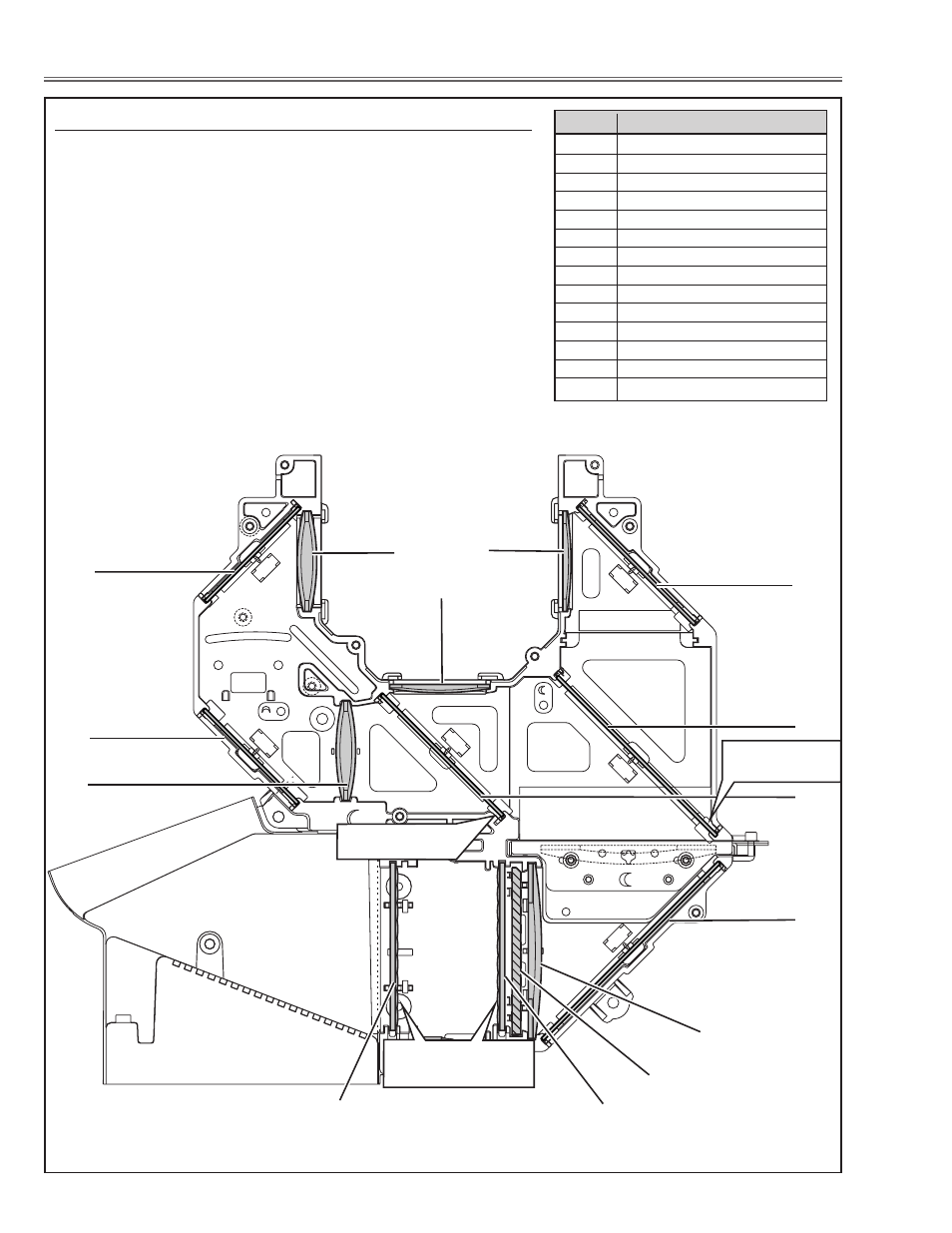

When the optical parts in the optical unit mounting or assembling, the
parts must be mounted in the specified location and direction as
shown in figure below.
13
11
7
Fig.7
3
13
1
2
4
8
Locations and Directions
12
5
1 Condenser lens (R)
2 Condenser lens
3 Condenser lens
4 Mirror (B)
5 Dichroic mirror (B
6 Dichroic mirror (G)
7 Mirror (W)
8 Condenser lens (IN)
9 PBS (prism beam splitter)
10 Integrator lens (OUT)
11 Integrator lens (IN)
12 Relay lens (IN)
13 Mirror (R)
Key No. Description
6
9
10
The printed marker
comes this side.
Place the lens as the both
rugged surface sides in the
same direction.
The printed marker
comes this side.
