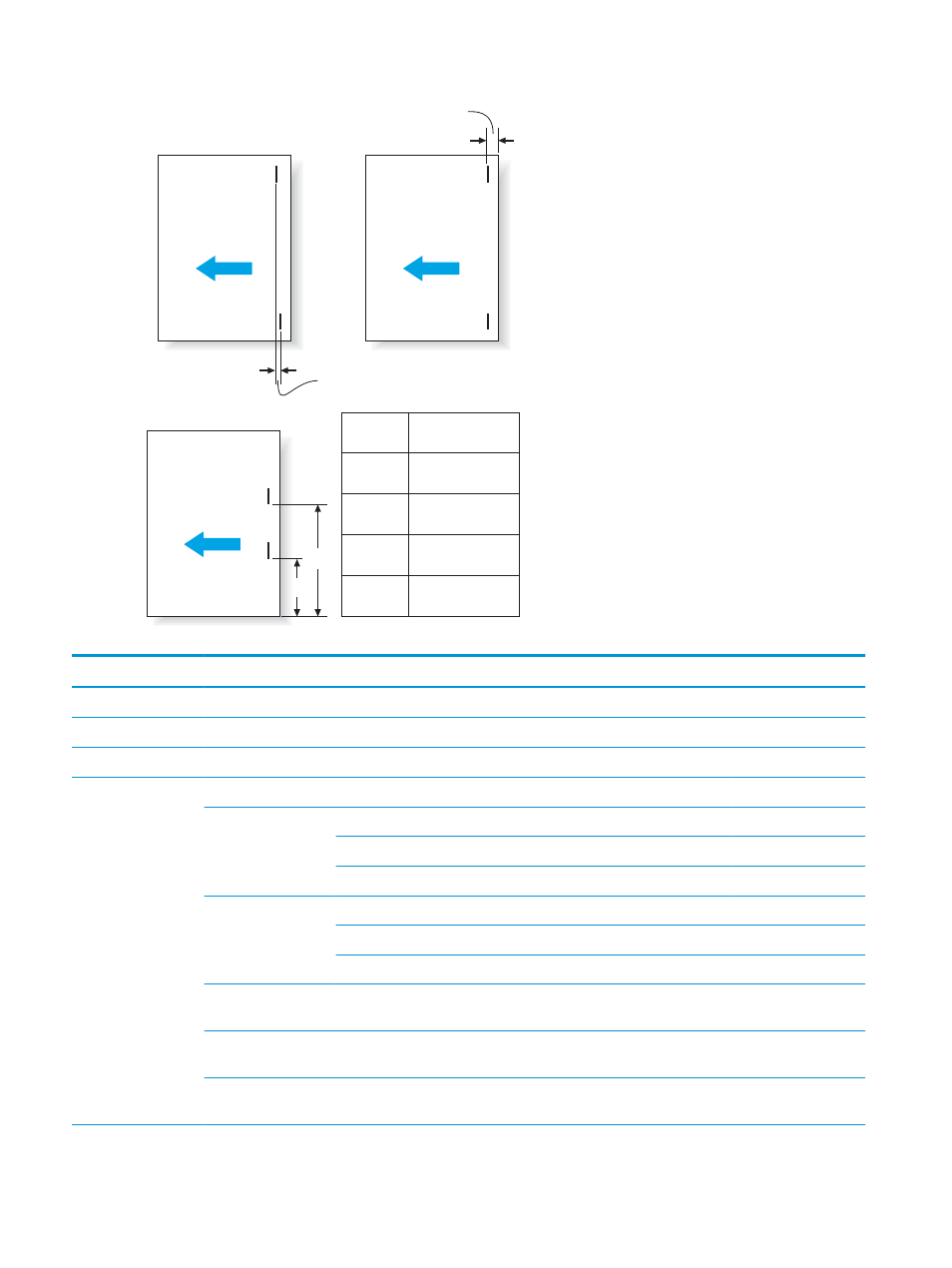

Direction

of delivery

1 mm or less

2-point

stapling

Direction

of delivery

2-point

stapling

5 –/+2 mm

Direction

of delivery

LGL, LTR-R :

Y1

:

Y2

4.5 –/+4 mm
162.5 –/+4 mm

LDR, LTR

:

Y1

:

Y2

74.2 –/+4 mm
194.2 –/+4 mm

B4

:

Y1

:

Y2

63 –/+4 mm
183 –/+4 mm

A4R

:

Y1

:

Y2

39.5 –/+4 mm
159.5 –/+4 mm

2-point

stapling

Y1

Y2

A3, A4

:

Y1

:

Y2

83 –/+4 mm
203 –/+4 mm

Table 1-22

Specifications for booklet making (Booklet maker only)

Item

Specifications

Stapling method

Center binding (double folding)

Paper size

A3, B4, A4–R, LDR, LGL, LTR-R, Oficio (216 x 340), Oficio (8.5 x 13)

Paper weight

60 g/m

2

to 220 g/m

2

Stacking capacity

Paper weight

Paper size

1 to 5 sheets

6 to 10 sheets

11 to 15 sheets

Plain paper: 60 g/m

2

to 81 g/m

2

A4R, LTR-R

20 copies

10 copies

10 copies

LGL

10 copies

10 copies

5 copies

A3, B4, LDR

25 copies

15 copies

10 copies

Plain paper: 82 g/m

2

to 90 g/m

2

A4R, LTR-R

20 copies

10 copies

LGL

10 copies

10 copies

A3, B4, LDR

25 copies

15 copies

Plain paper: 91 g/m

2

to 105 g/m

2

Large size

10 copies

10 copies

Plain paper: 106 g/m

2

to 220 g/m

2

Large size

10 copies

Glossy paper: 91 g/m

2

to 220 g/m

2

Large size

10 copies
