1. Connect the converter with the IP camera for RS-485 interface like PLANET product: “ICA-601”.
2. Connect the converter with the control keyboard for RS-485 interface like PLANET product: “CAM-KB300”.
ICS-210x – Master: be configured as Pair-Connection-Local
3. From Web interface, login the ICS-210x with IP address = 192.168.0.100, set up the operation mode of this unit to be
“ Pair Connection-Local (Master)”

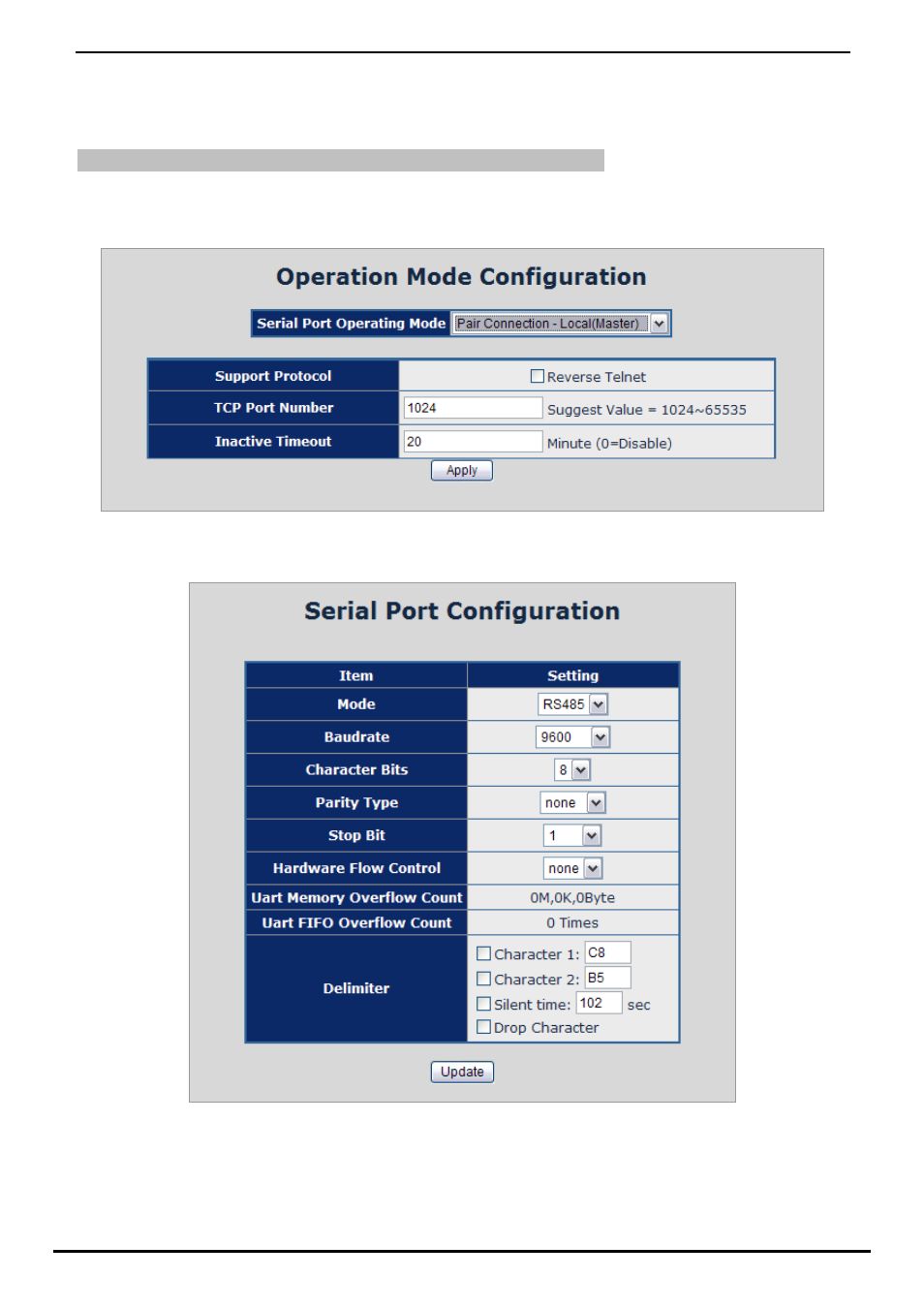

Figure 4-51 Pair Connection – Local, operation mode configuration
4. Set the Serial Port mode of ICS-210x-Master to RS-485 .
Figure 4-52 Pair Connection – Local, serial port configuration
