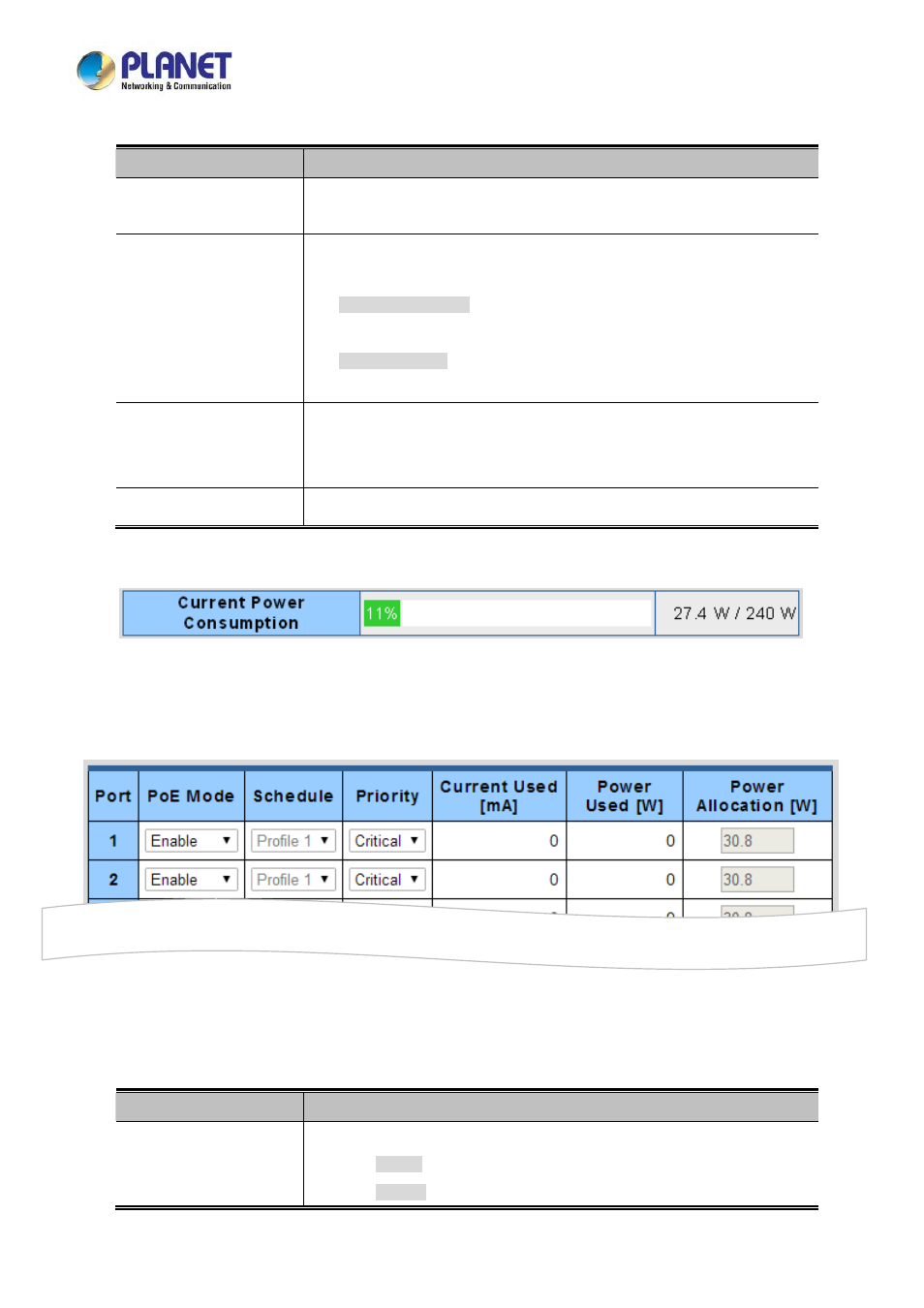

User’s Manual of LRP-822CS
329
The page includes the following fields:
Object Description
 System PoE Admin
Mode Allows user to enable or disable PoE function. It will cause all of PoE ports to
supply or not to supply power.
 PoE Management
Mode There are six modes for configuring how the ports/PDs may reserve power and
when to shut down ports.
 Consumption mode: The system offers PoE power according to PD real
power consumption.
 Allocation mode: Users allow to assign how much PoE power to each port
and the system will reserve PoE power to PD.
 Temperature
Threshold Allows setting over temperature protection threshold value. If the system
temperature is overly high, the system will lower the total PoE power budget
automatically.
 PoE Temperature Display the PoE Chip Temperature
This section displays the PoE Power Usage of Current Power Consumption as Figure 4-16-2 shows.
Figure 4-16-2: Current Power Consumption Screenshot
This section allows the user to inspect and configure the current PoE port settings as Figure 4-16-3 shows.
Figure 4-16-3: Power over Ethernet Configuration Screenshot
The page includes the following fields:
Object Description
 PoE Mode There are three modes for PoE mode.
 Enable: enable PoE function..
 Disable: disable PoE function.
