User’s Manual of LRP-822CS
124
(0x0600-0xFFFE) from the the preceding Frame Type selection menu.
Valid values for frame type ranges from 0x0600-0xfffe
Buttons
: Click to apply changes.

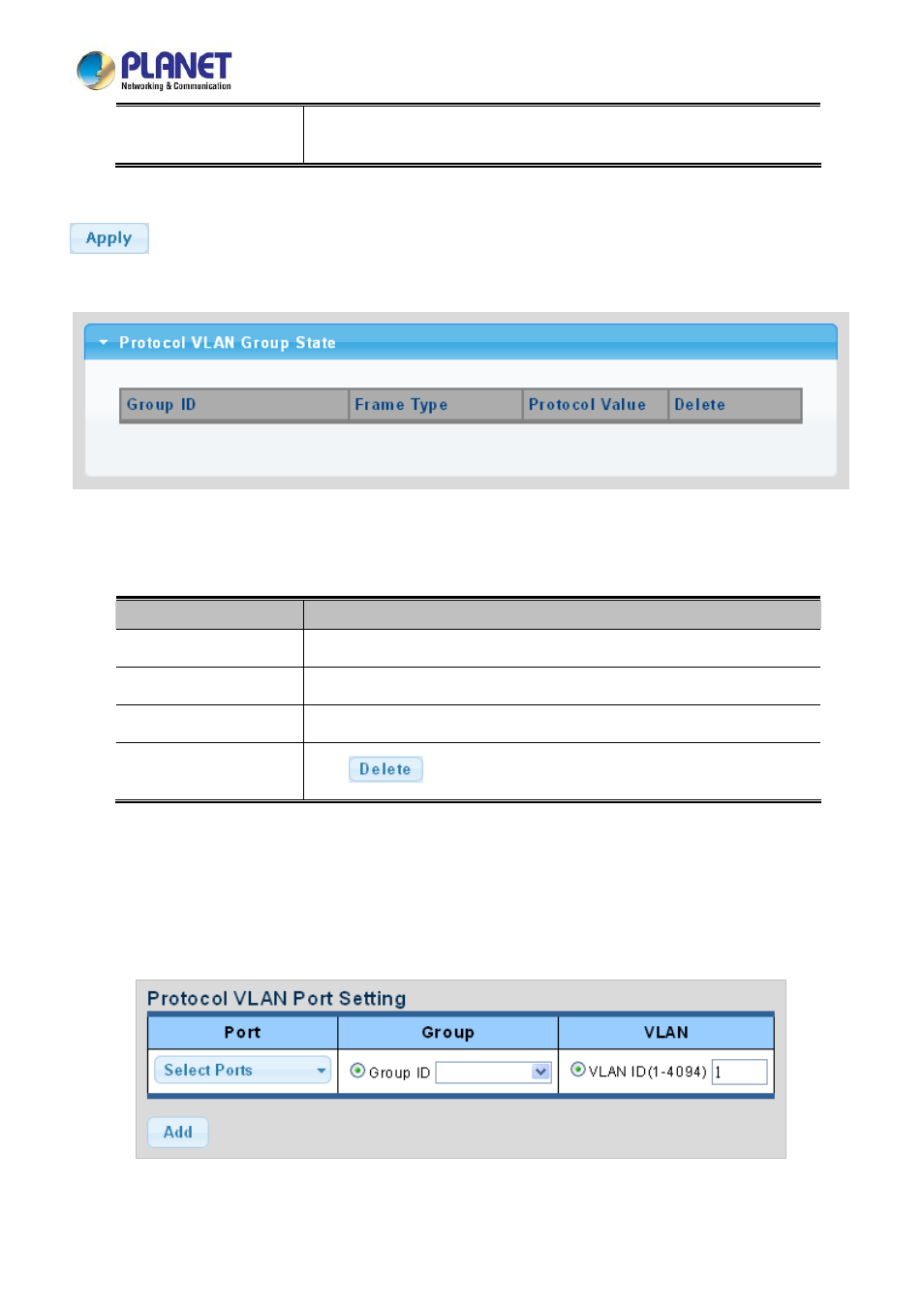

Figure 4-5-10 Protocol VLAN Group State Page Screenshot
The page includes the following fields:
Object Description
 Group ID Display the current group ID
 Frame Type Display the current frame type
 Protocol Value Display the current protocol value
 Delete
Click to delete the group ID entry
4.5.9 Protocol VLAN Port Setting
This page allows you to map an already configured Group Name to a VLAN/port for the switch. The Protocol VLAN Port
Setting/State screens in Figure 4-5-11 & Figure 4-5-12 appear.
Figure 4-5-11 Protocol VLAN Port Setting Page Screenshot
