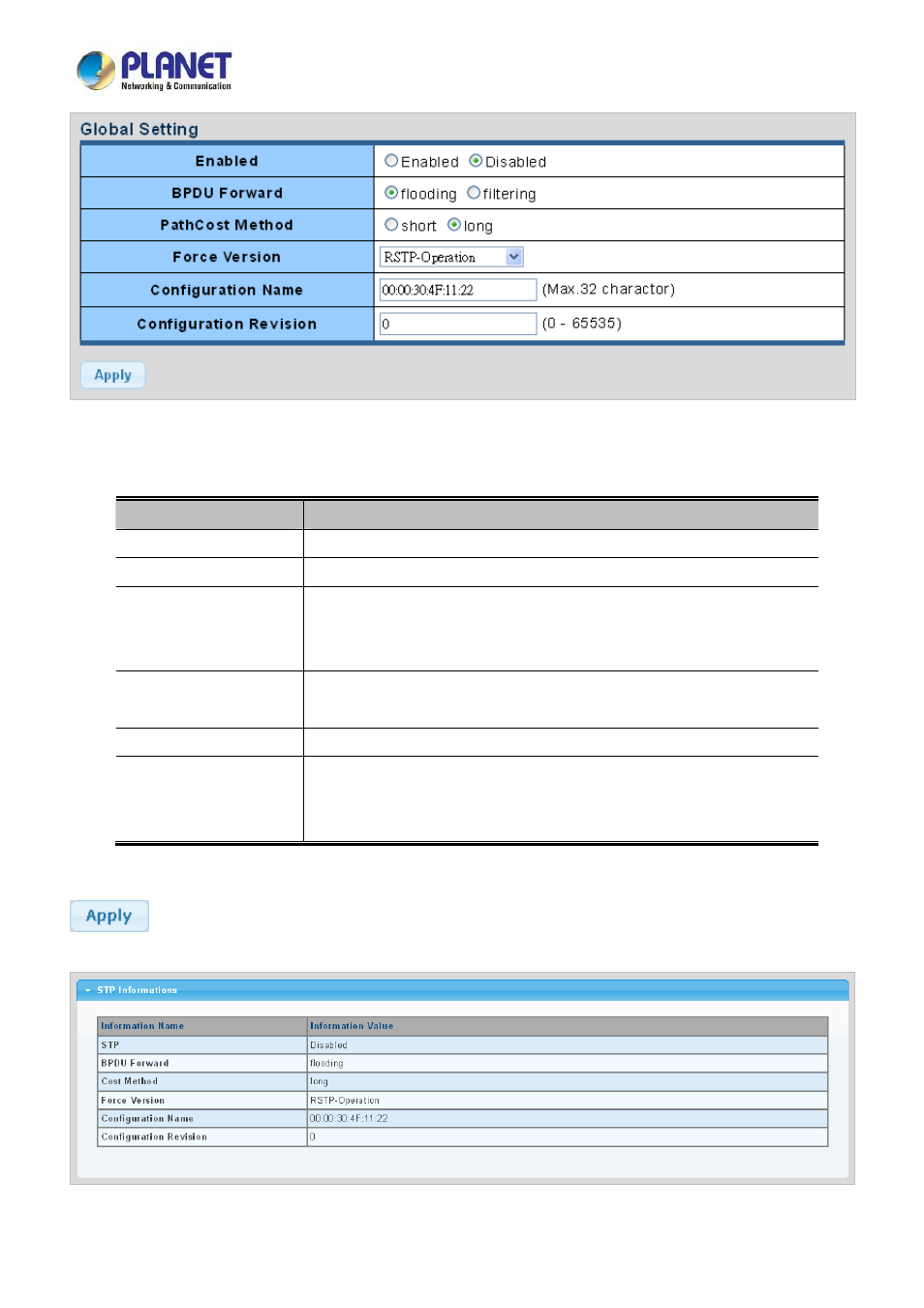

Figure 4-6-4 Global Settings Page Screenshot
The page includes the following fields:
Object Description
 Enable Enable or disable the STP function. The default value is "Disabled".
 BPDU Forward Set the BPDU forward method.
 PathCost Method The path cost method is used to determine the best path between devices.
Therefore, lower values should be assigned to ports attached to faster media,
and higher values assigned to ports with slower media.
 Force Version The STP protocol version setting. Valid values are STP-Compatible,
RSTP-Operation and MSTP-Operation.
 Configuration Name Identifier used to identify the configuration currently being used.
 Configuration Revision Identifier used to identify the configuration currently being used. The values
allowed are between 0 and 65535.
The default value is 0.
Buttons
: Click to apply changes.
Figure 4-6-5 STP Information Page Screenshot
