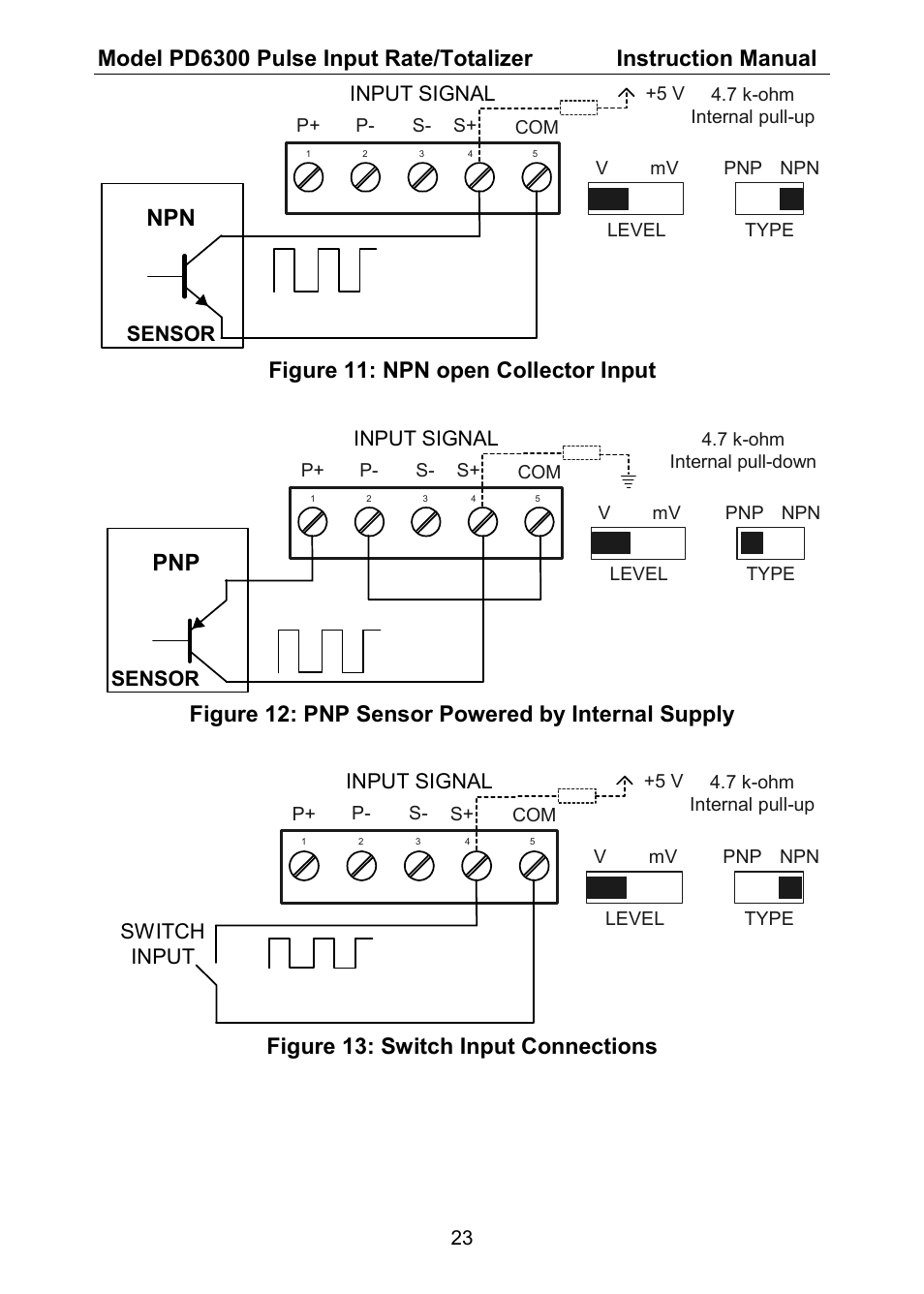

Figure 11: npn open collector input, Figure 12: pnp sensor powered by internal supply, Figure 13: switch input connections – Precision Digital PD6300 User Manual

Page 23

Text mode
Original mode

Figure 11: npn open collector input, Figure 12: pnp sensor powered by internal supply, Figure 13: switch input connections | Precision Digital PD6300 User Manual | Page 23 / 96
