- 6 -

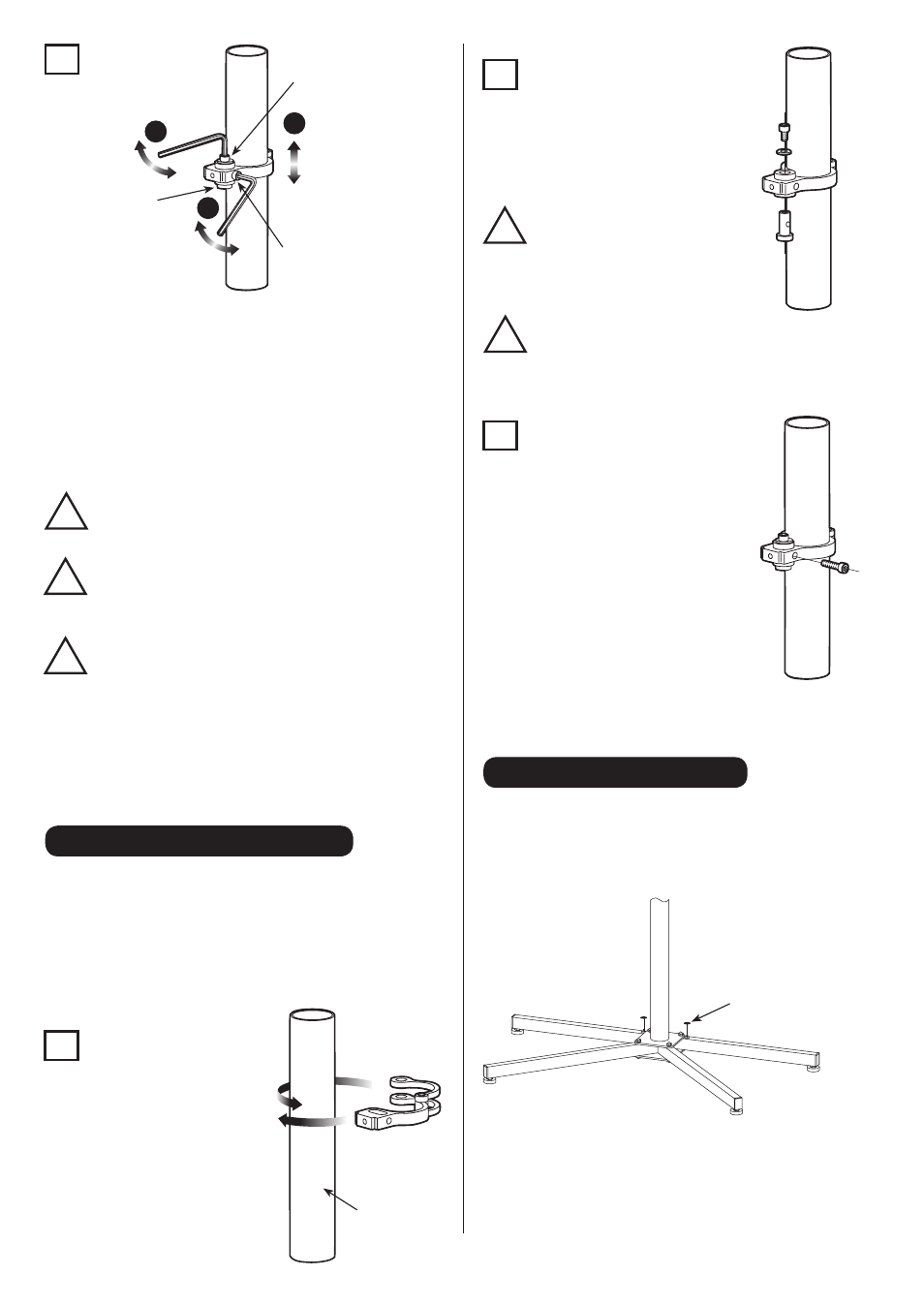

How To Reinstall Clamp Band
The clamp bands come pre-installed and they should not
need to be removed. However, there may come time when
adding options to P-600AL-5S that you will need to remove
them.
Install the clamp peoperly as instructed below. Failure to do
so may cause parts damage or allow the bike to come off the
stand..
Wind the clamp arms around
the Pillar.
The following description is
set as the single side arm is on
YOUR right, and the double
side arm is on YOUR left.
Put the Pivot-Pin through all 3 holes
on the clamp band from bottom side,
and screw the Pivot-Pin Fixing Bolt
with a flat washer temporally.
!
Make sure to insert the
Pivot-Pin from the bottom.
If you don't, you will not
be able to tighten the bolt
using a hex wrench.
Pillar
Turn the Pivot-Pin to align the thread
hole to the side hole on the clamp
band.
Screw the Clamp Tightening Bolt into
the Pivot-Pin.
To fix the clamp band firmly, tighten
the Clamp Side Pin first then tighten
the Pivot-Pin Fixing Bolt later.
!
Do not tighten the Pivot-
Pin Fixing Bolt firmly yet.
The next job will become
difficult.
1
2
3
(Fig. Z)
(Fig. AB)
Using Black Round Decal
(Fig. AC)
If you wish to hide the holes beside the Leg Bracket when
setting up in K-style leg configuration, put the supplied
black round decal onto the hole.
You will not use the decal when setting up in X-style.
Black Round Decal
Move the clamp with hook to your desired position.
The hook can be positioned at anywhere you want, but
you must place it to just beside the pillar when you choose
K-style leg.
To move the clamp, loosen ① clamp tighitening bolt and
② pivot-pin fixing bolt together with M5 hex wrench, then
③ slide the clamp along the pillar.
!
The clamp may not move if you loosen the
side bolt only. You should loosen both bolts.
!
When you set the legs in K-style, you must
place the hooks just beside the pillar,
otherwise the stand may tip over due to
improper balance.
Adjust the bottom hooks clamp height as the bike becomes
vertical when hooking the rear tire in the deepest position.
After moving, firmly tighten both ① and ② bolts.
!
Be sure the clamp touches the pillar directly.
If you don't loosen the bolt enough, it may
cause scratching. You should loosen widely.
1
2
3
(Fig. Y)
3
Pivot-Pin Fixing Bolt
Clamp Tightening Bolt
Pivot-Pin
(Fig. AA)
