- 2 -

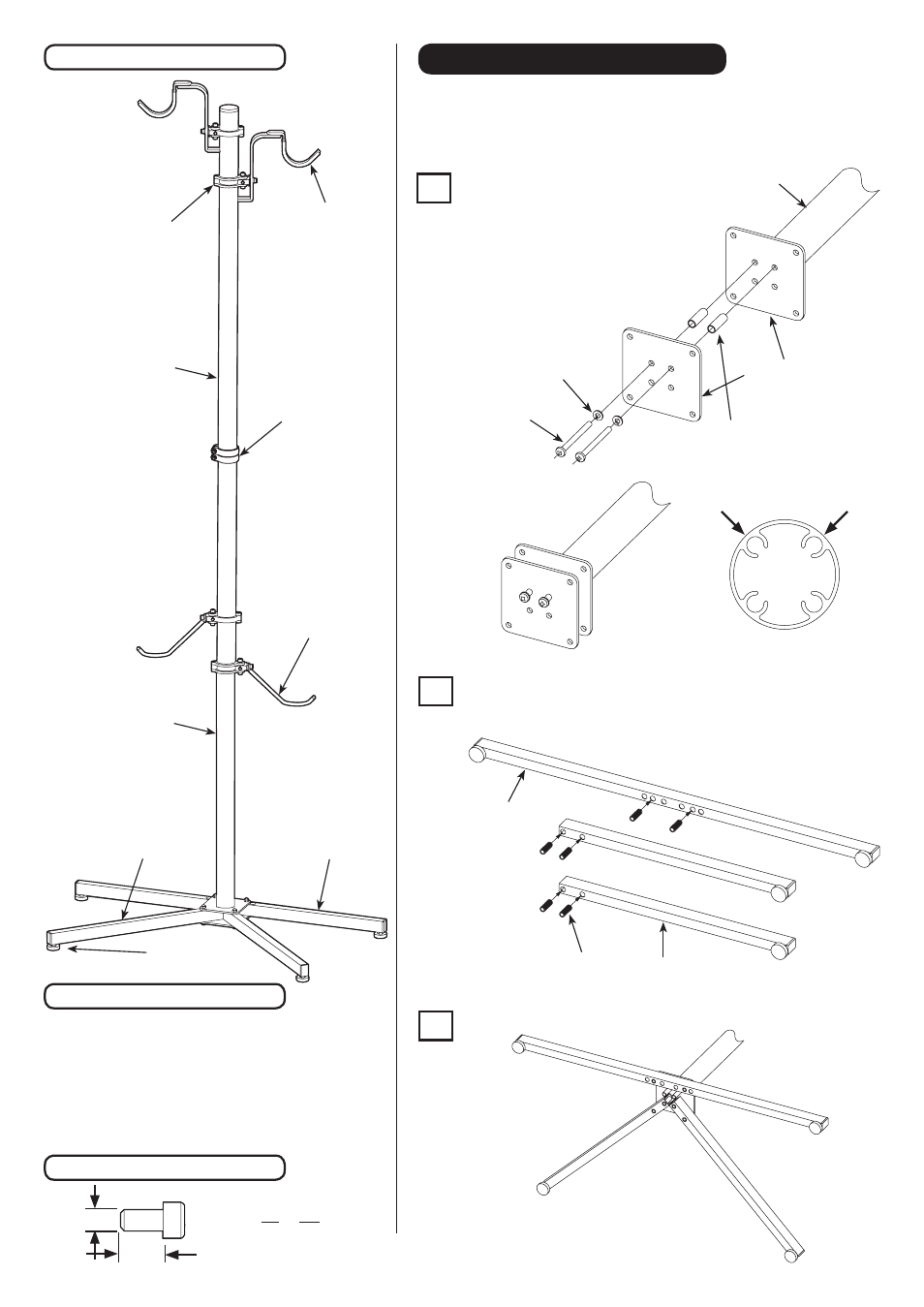

Upper Pillar
Top Hook
for front wheel Clamp
Long Leg Short Leg
Foot Adjuster
Part Name
Bottom Hook
for rear wheel
Required Tools
1 x M5 Hex Wrench (included)
1 x Phillips Screwdriver (not included)
1 x 13mm Spanner (not included)
(We strongly recommend to use the fatter No.3
screwdriver instead of standard No.2)
How To Read Bolt Size
Length
Diameter
Ex) 6 x 30
Diameter Length
Assemble P-600 in K-style Leg
1
2
3
(Fig. B) (Fig. C)
(Fig. D)
Setting up your P-600 in the K-Style leg configuration saves
valuable room because the stand can be placed next to a wall.
Attach two Leg Brackets to the
Pillar.
One is set directly, and another
one is set beyond the silver
Collars.
Do not tighten the M6x70 Bolts
firmly yet. (see Fig. B)
Pillar
Leg Bracket
(both are exactly same)
Collar (Silver)
M6x70 Bolt
Spring Washer
Screw the bolts to
these threaded slots
(Fig. A)
Put the black Collars to the designated holes (see Fig. D) on
both Long and Short Legs. Collar is put from the larger hole.
Collar (Black)
(Fig. E)
Place the legs as shown in Fig.E.
Long Leg
Short Leg
The collar works to prevent deforming the tube
by the bolt tightening power. You must set
the collar correctly.
Lower Pillar
Pillar Joint Clamp
(Unit: mm)
