MINOURA Bike Cradle 4 - Manual

- 3 -
Extra Bike Hanger Kit Bike Cradle 4 instructions manual
(ver.1.1 2014/8)

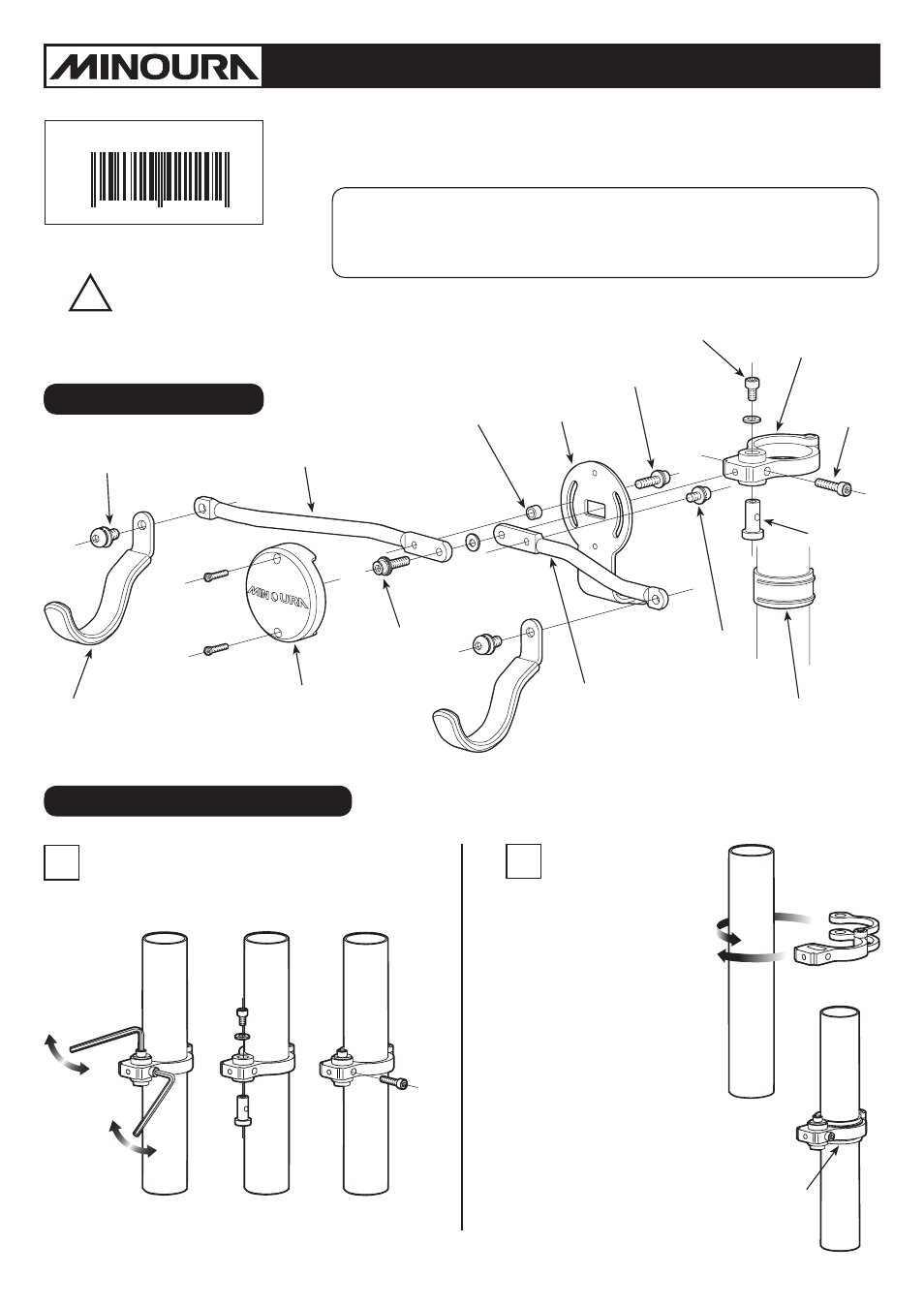

Schematics
Left Side Arm (foreside)
Right Side Arm
(backside)
Cradle Cap
Hook
Main Bracket
Clamp
Shim
(use if the pillar diameter is
smaller than 43mm)
Spacer Collar
(Left side only)
Pivot-Pin
Pivot-Pin
Fixing Screw
Hook Fixing Screw
Left Arm Angle
Adjusting Screw
Right Arm
Angle Adjusting
Screw
Arm Connecting
Screw
Clamp
Tightening
Screw
How To Install Cradle4
1
Widely open the clamp then
wind arond the pillar.
Make sure the single fatter arm
is located on the right side, and
two narrower arms are located
on the left side (see Fig. B).
Opposite combination doesn't
work.
If the pillar diameter is smaller
than 43mm, install the supplied
plastic Shim first, then wind the
clamp over the shim (see Fig. C).
Make sure you install the Shim
in correct direction. Dual rail
must fit to the single arm side.
Required Tool: M5 Hex Wrench (not supplied)
At first, remove the Pivot-Pin, Pivot-pin Fixing
Screw and Clamp Tightening Screw to open the
clamp (see Fig. A). 2
Shim
(Fig. A)
(Fig. B)
(Fig. C)
40mm = for BikeTower / BikePit upper pillar
45mm = for BikeTower / BikePit lower pillar, P-500 / 600 / 700 pillar
CRADELE 4 Bike Cradle 4's arm has different shape from Bike Cradle 3. It's the bent type
in order to enable to place the bike further from the pillar to avoid conflicting
with the pedal.
!
We suggest wrapping
the hook with bar tape to
minimize discoloring of
lighter colored frames.
