- 4 -

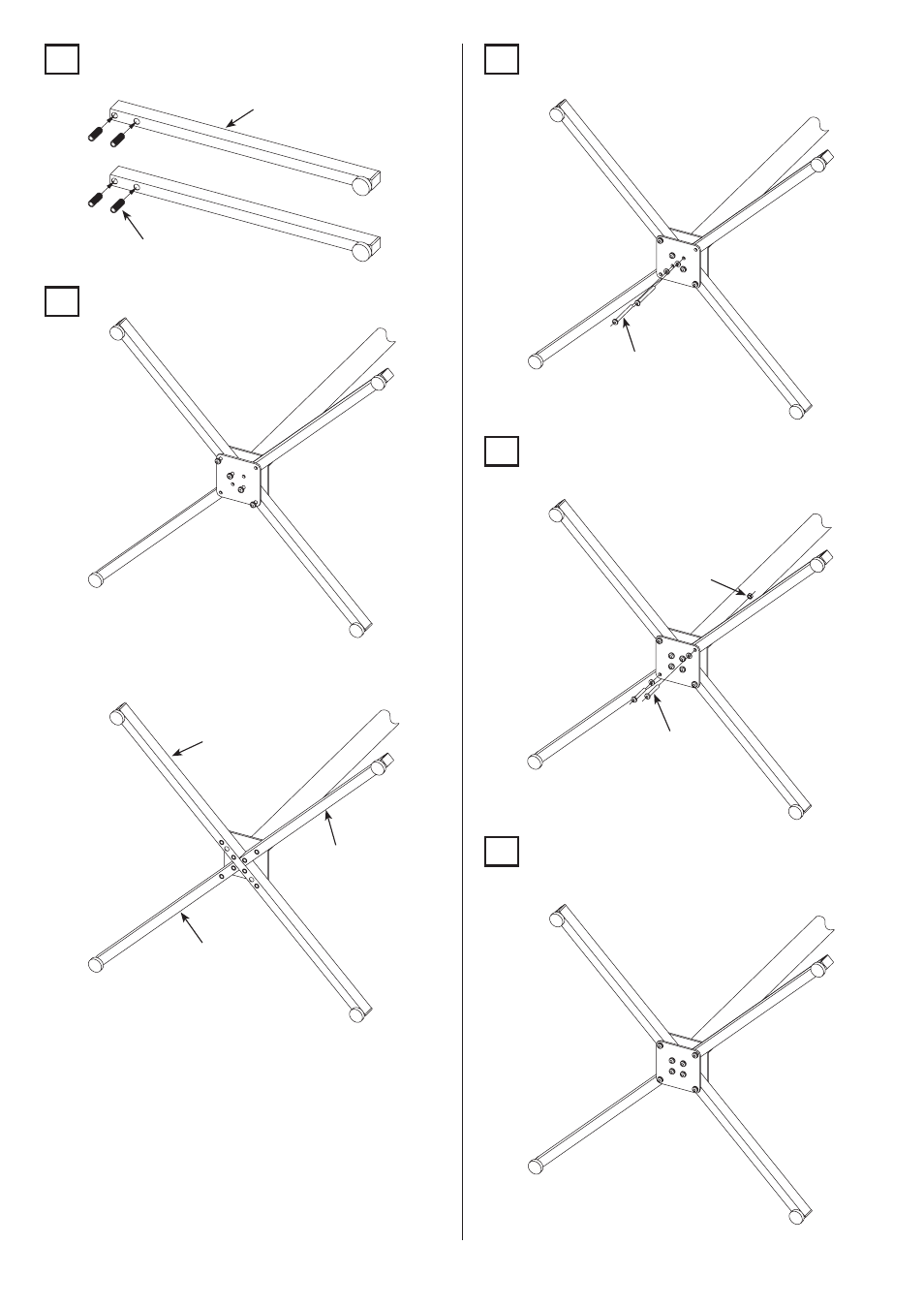

2 Put the black Collars to all holes on the Short Leg.
Collar must be inserted from the larger hole.
3 Set the Short Legs as they make "X" shape.
(Fig. N)
(Fig. O)
(Fig. P)
Inside layout is as shown in Fig. P.
Long Leg
Collar (Black)
Short Leg
4 Put the longer M6x70 Bolt to the end hole on the
Short Leg, then screw into the Pillar.
(Fig. Q)
M6x70 Bolt
Spring Washer
5 Put the shorter M6x45 Bolt to other hole, sandlwich
the Short Leg with two Leg Brackets, then screw to
the Dome Nut.
M6x45 Bolt
Spring Washer
Dome Nut
(Fig. R)
(Fig. S)
6 Tighten every bolt.
Over-tightening the M6x70 Bolt may cause serious
damage to the alloy Pillar. Do not overtighten.
Short Leg
Short Leg
