Electrical diagrams

Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited

10. ELECTRICAL DIAGRAMS

































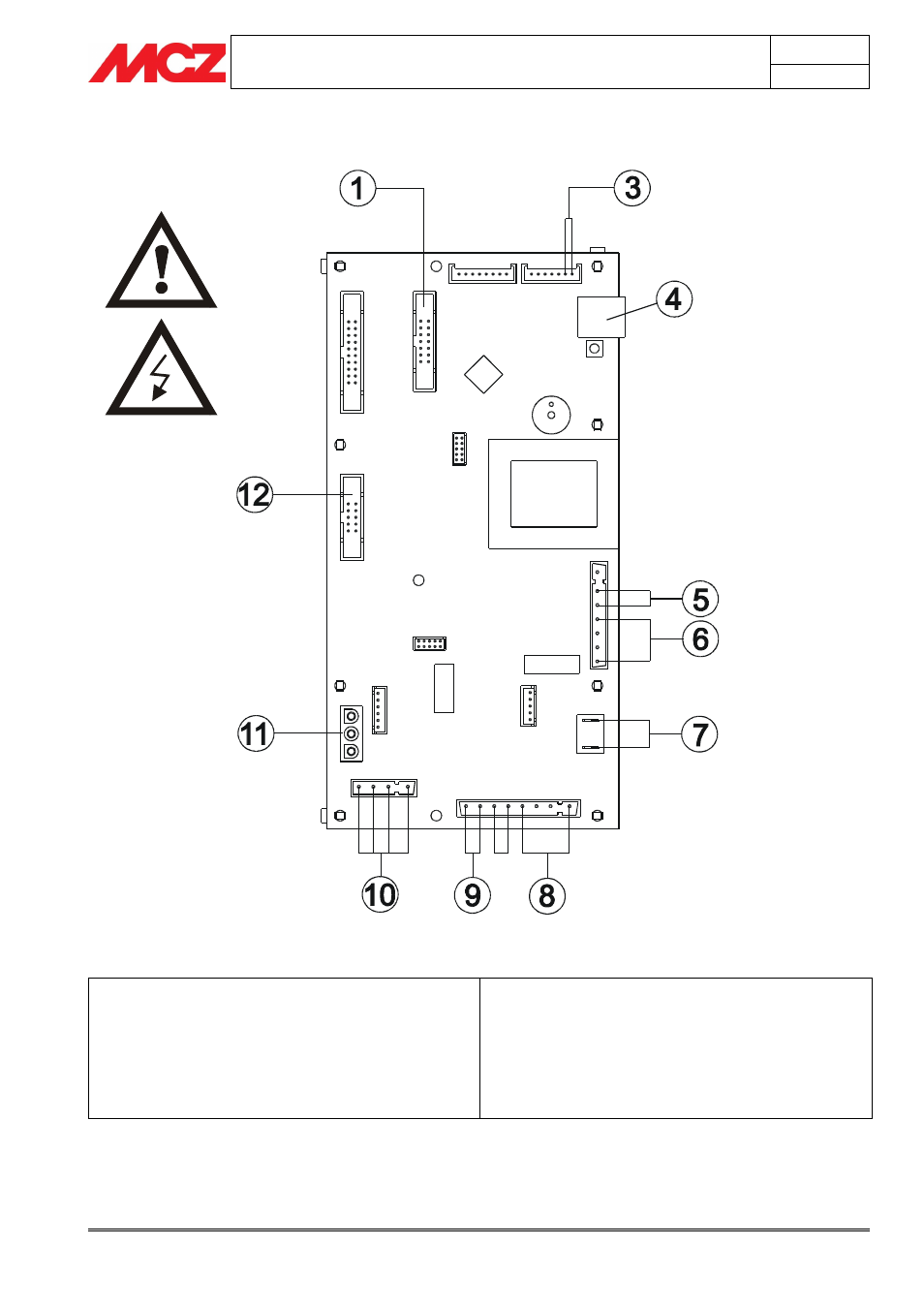

MOTHERBOARD WIRING KEY

1. Emergency panel
3. Smoke sensor
4. Modem connection
5. Switch
6. Ignition plug
7. Flue-gas extractor fan

8. Reduction motor
9. Contact thermostat
10. Air fan
11. Flue-gas extractor fan revolutions control
12. Air flow sensor


N.B. The electrical wiring of the single components includes pre-wired connectors which are of different sizes.
