PELLET STOVES

Chapter 3

INSTALLATION AND USE MANUAL

page

29

Installation and assembly

Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited

C

D

C

C

D

D

C

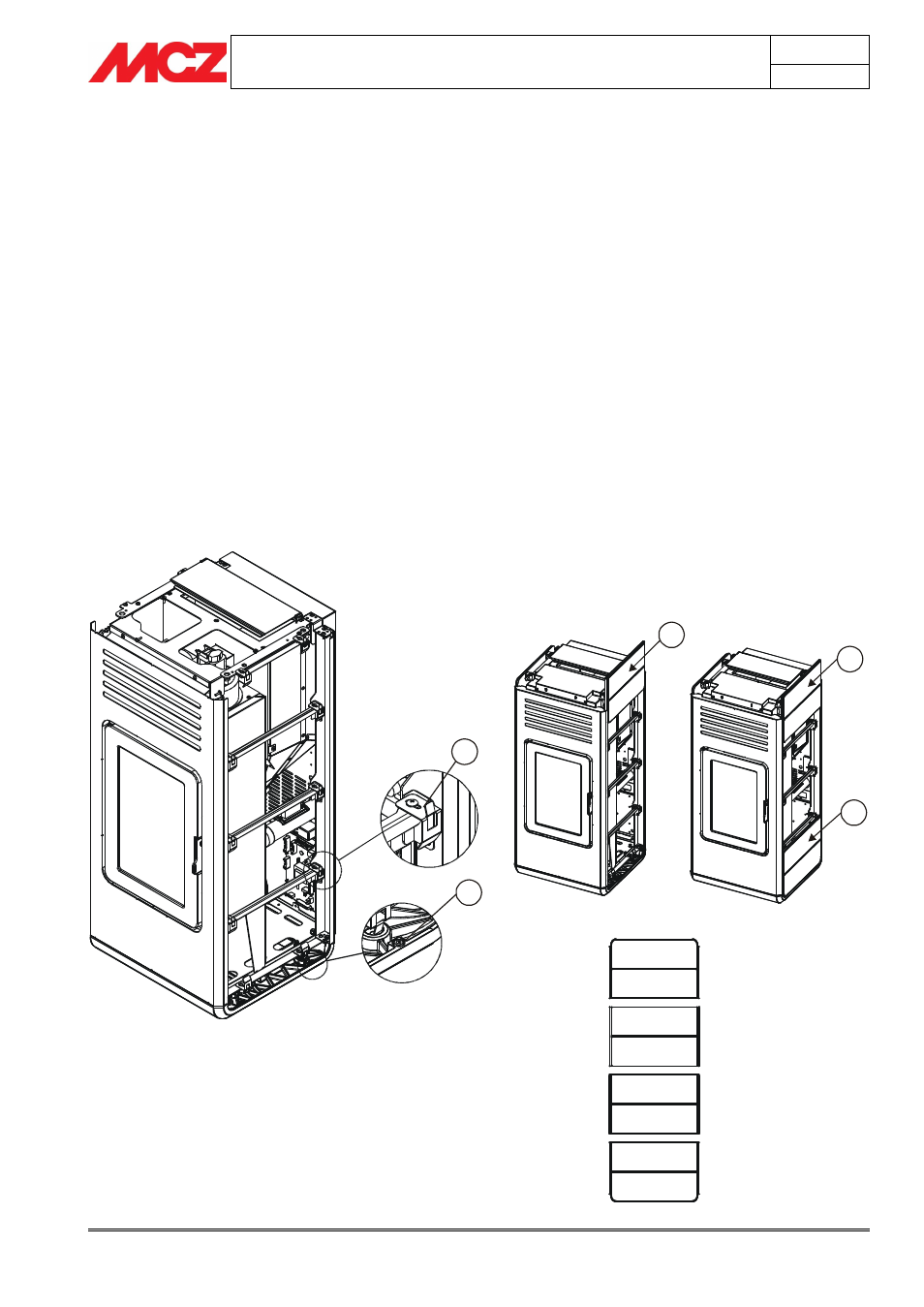

3.4.5. Assembly of ceramic side tiles onto NIMA stove

The eight ceramic tiles are delivered in a box. There shall be four

rectangles D which go in the middle part of the side panel and two

profiles C which go under and over the side panel.
Remove the top and slide in the first tile C with the rounded part

pointing downwards, making sure it is inserted adherently to the profile

and inside the brackets located on the structure.
These brackets B are already in place so that the ceramics C-D are held

in the best position of adherence on the stove; they have screws with a

slot for eventual adjustment (for example if the tile moves too much or

is hard to insert).
The lower tile C rests on two screws A which can be adjusted in height
so as to compensate eventual differences in size of the tiles; it is

possible to apply felt pads between one tile and another where

necessary.
When all 8 ceramics have been positioned (4 per side) reposition the

top by simply resting in on the rubber supports on the upper part of the

stove.

A

B
