PELLET STOVES

Chapter 3

INSTALLATION AND USE MANUAL

page

27

Installation and assembly

Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited

B

C

C

A

With the screw D close the sheet metal E that keeps profile A

locked

Before refitting the grill B with the two screws C, also insert

the side tiles (See par.3.4.2)

A

B

C

C

D

E

A

F



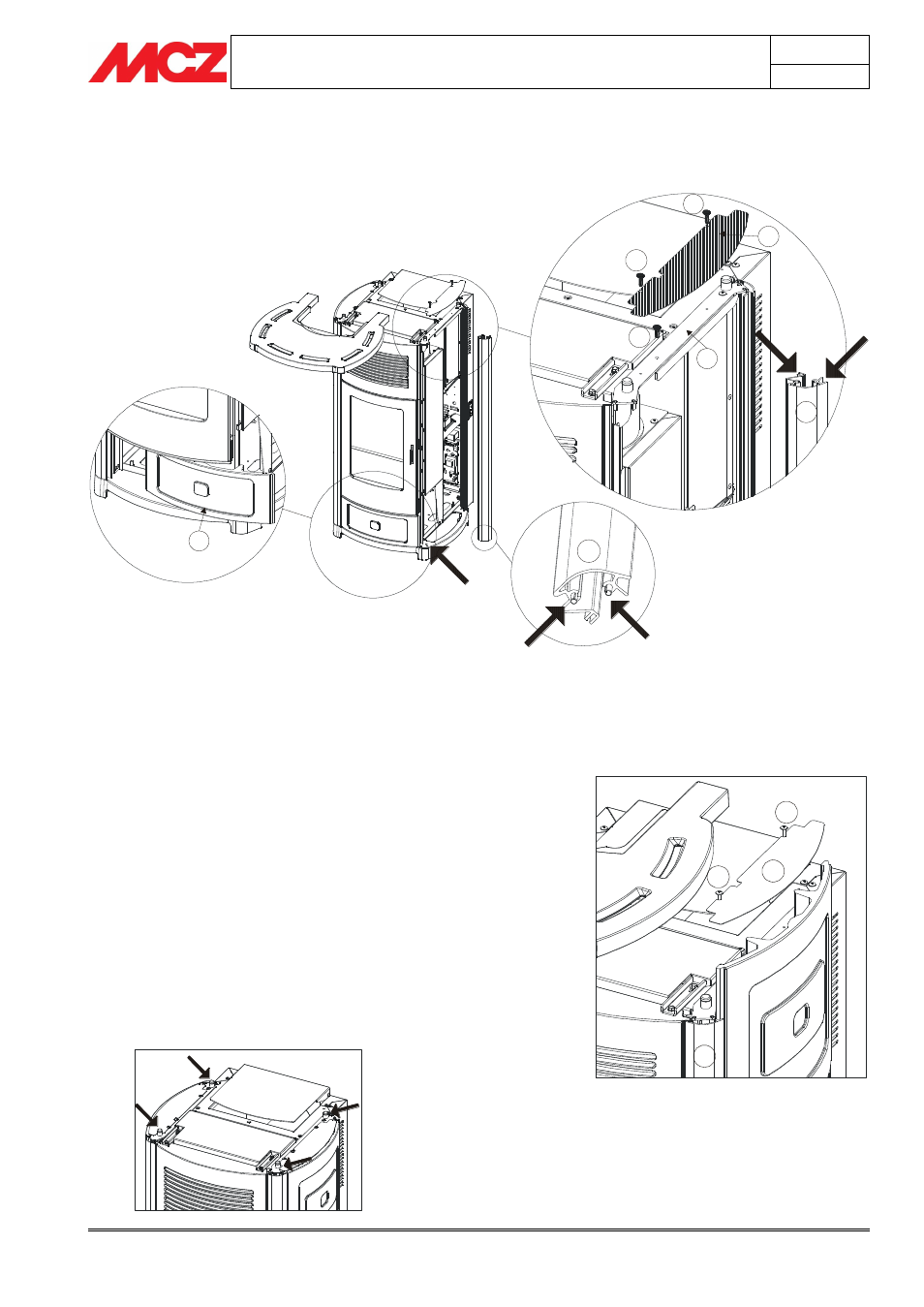

3.4.2. Installation of side tiles

Remove the micro-perforated grill B and insert the three side tiles,

making them slide from the top towards the bottom on the runners of

the profiles A. On the upper and lower part of the tile it is advisable to

place small felt pads. Level the bubbles of the tiles. At this point it is

possible the retighten the micro-perforated grill B to the structure and

position the ceramic top. (fig.9)

3.4.3. Installation of ceramic top

Install the top by setting it on the four upper protuberances of the

stove. The part underneath is provided with four small cavities at the

rubber supports indicated in the figure 10

.






Figura 10 - Supports for installation of ceramic top

Figure 8 – Installation of lower front panel

Figura 9 – Installation of side tiles
