Maintenance and cleaning Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited
8.2.1.3.
Nima Stove Version COMFORT AIR

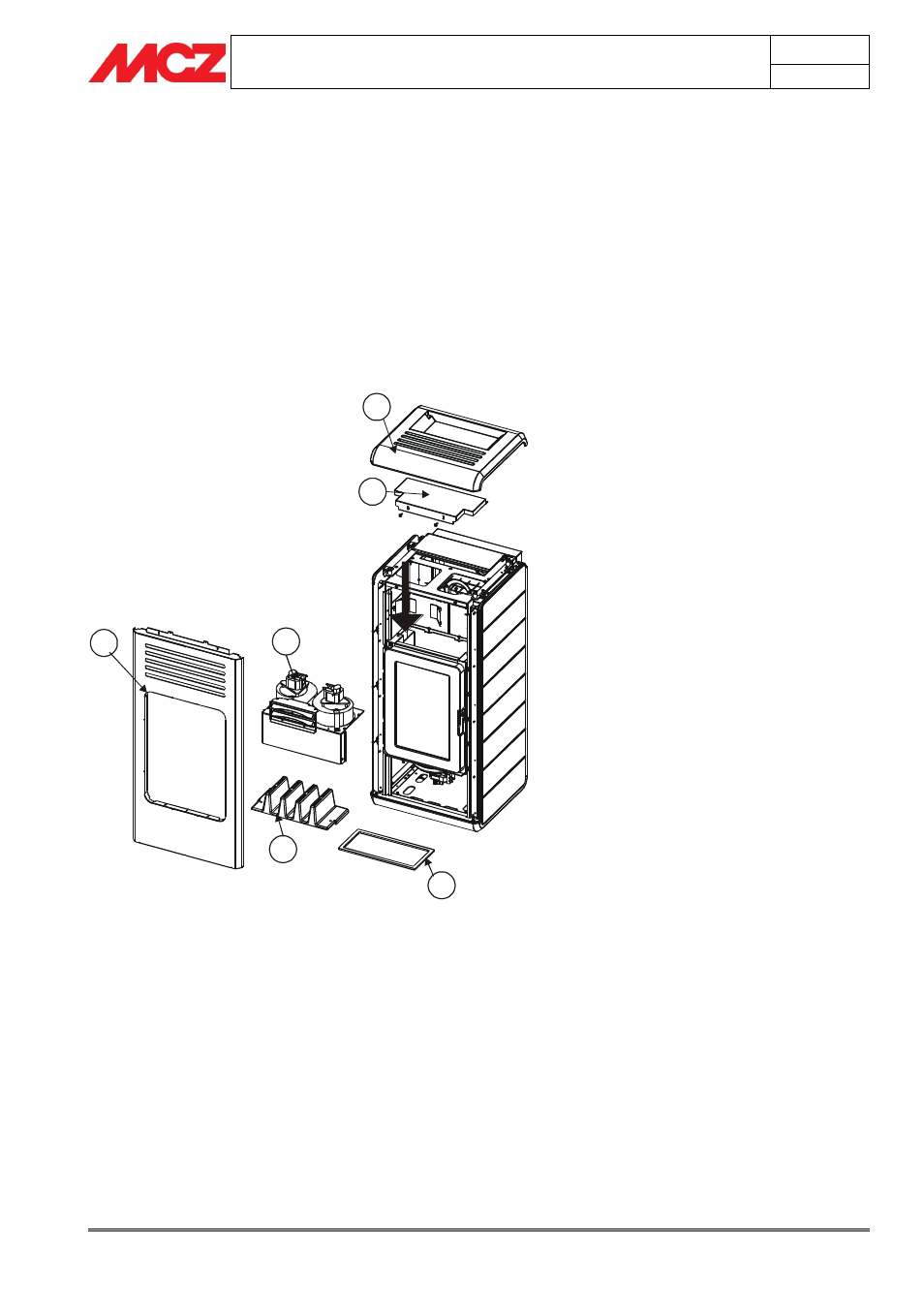

1. Remove the top A
2. Remove the micro-perforated grille B by unscrewing the 4
screws (2 in front and 2 behind)
3. Remove front panel C by unscrewing the 6 screws
4. Remove fan unit D with the deflector by unscrewing the 4
screws
5. Remove exchanger E
Clean and refit all the components using a new front gasket F.
A
B
C D
E
F
Using a stiff rod or a bottle brush, scrape the inner walls of the fire box
so that the ashes drop into the part below.
