PELLET STOVES

Chapter 3

INSTALLATION AND USE MANUAL

page

33

Installation and assembly

Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited

3.4.7. Assembling side panels and top on the Sagar stove

The Sagar stove has two parts requiring assembly:

o Sides made of steel
o The top onto which mounted are the panels in:

 Ceramic
 Steatite


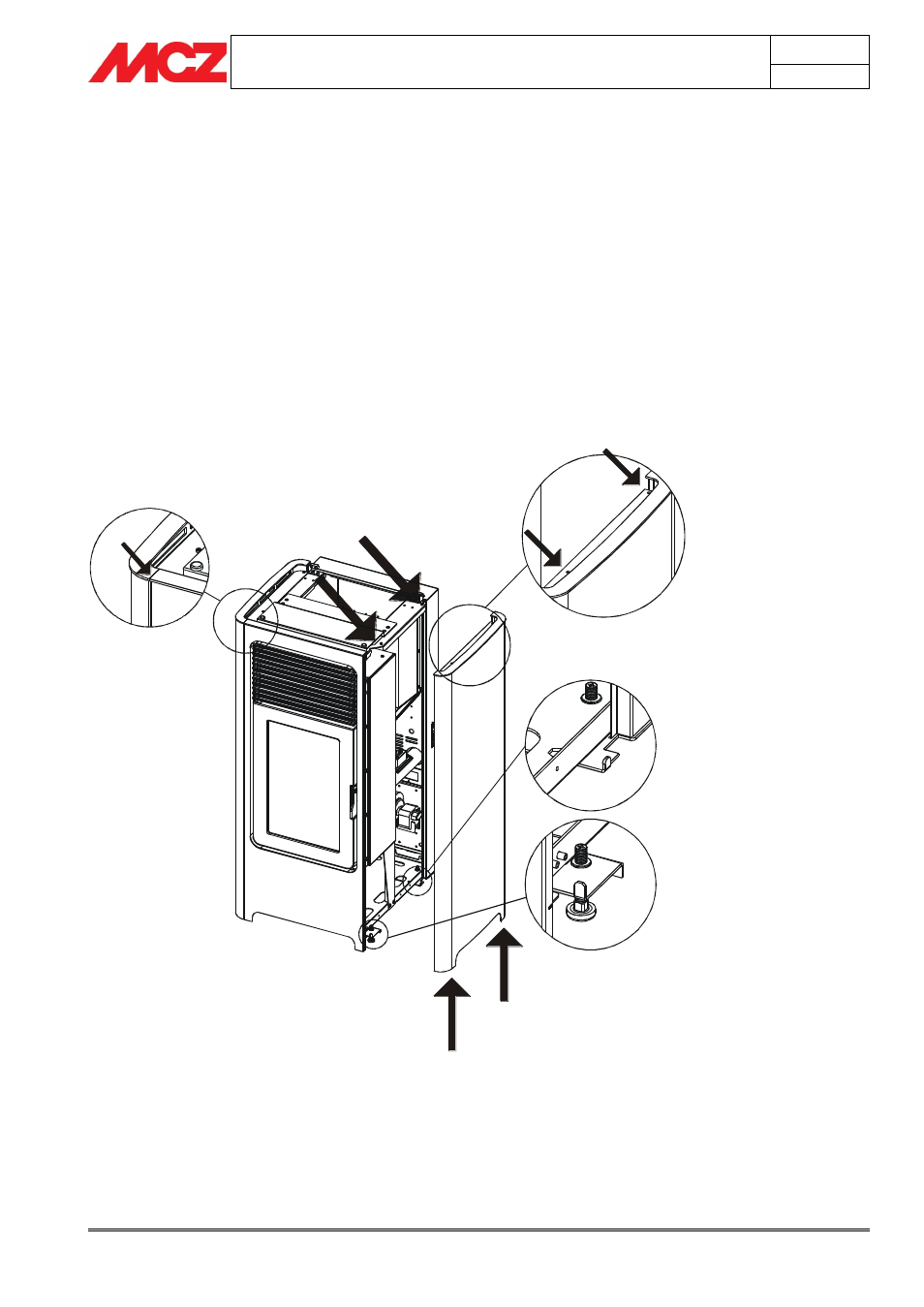

The steel side panels are secured onto the structure of the stove by

sliding into the apposite plugs A-B found on the base of the stove the

holes E-F found on the lower part of the side panel. Once in position

secure the side panel onto to upper part of the stove using the two
screws in position C-D. Alignment of the steel side panels with the

structure of the stove (K) is carried out by adjusting the feet.

A

B

C

D

D

C

E

F

K
