Maintenance and cleaning

Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited

8.2.1.4.

Suite and Club stove (ceramic sides) AIR version

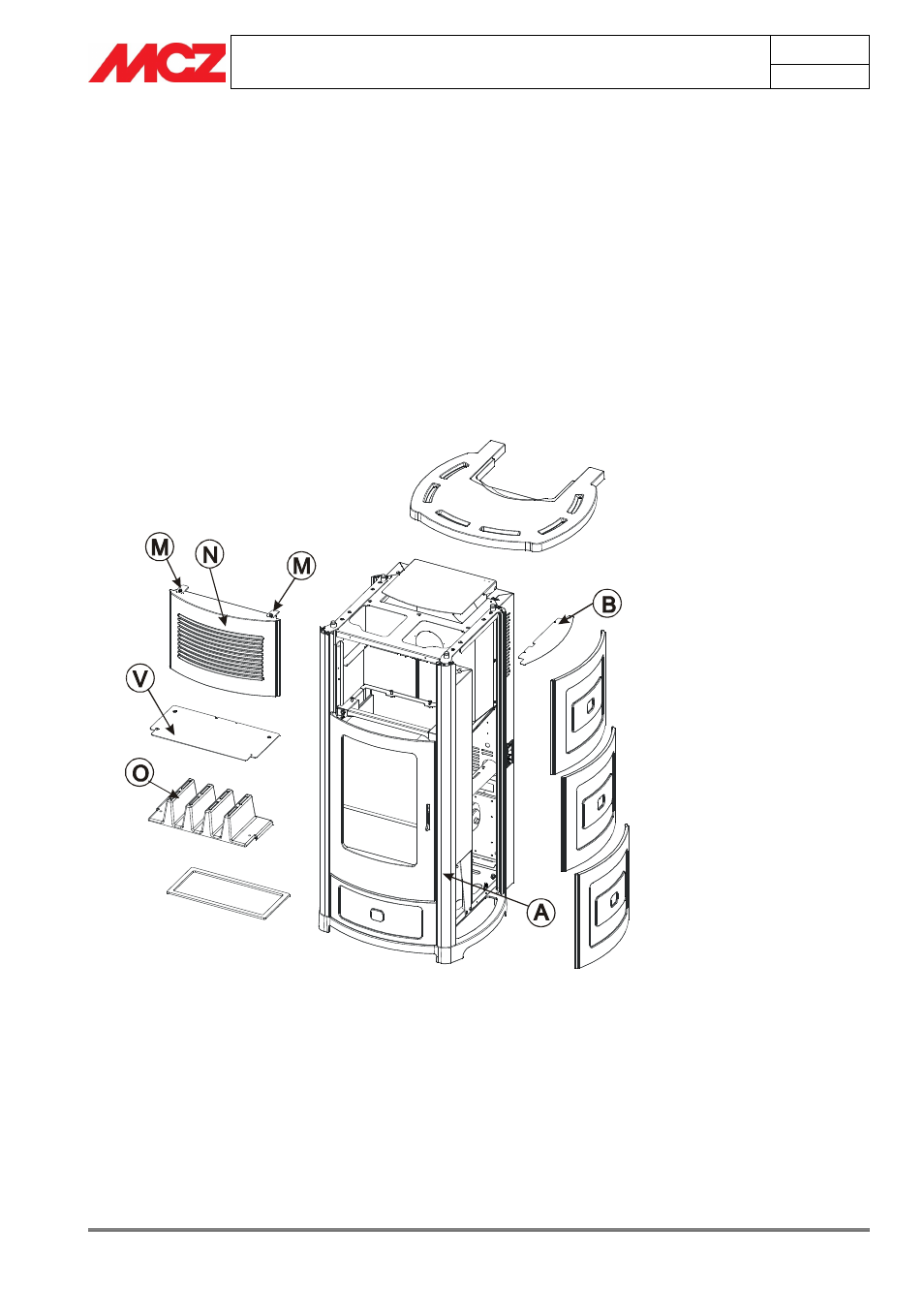

1. Remove the ceramic top.
2. Remove the two micro-perforated compensation grills for the

sides B (see par.3.4.1)

3. Remove the ceramic sides (three to the right and three to the

left) see par.3.4.1

4. Remove the front cast iron grid N with the two brackets M
5. Remove the plug V by unscrewing the screws
6. Remove the exchanger O by unscrewing the four screws that

secure it


Clean and refit all the components by using a new front gasket.

FRONT GASKET











Cleaning the upper exchanger (Suite and Club stove)
