Enterasys X-Pedition 8000/8600 Getting Started Guide 33
Hardware Overview
SSR-GLX70-01-AA and SSR-GLH39-02
The SSR-GLX70-01-AA and SSR-GLH39-02 line cards are similar to the SSR-GLX39-02 line
card, but extend the transmission distance over single mode fiber (SMF) to 70 kilometers for
Gigabit Ethernet.

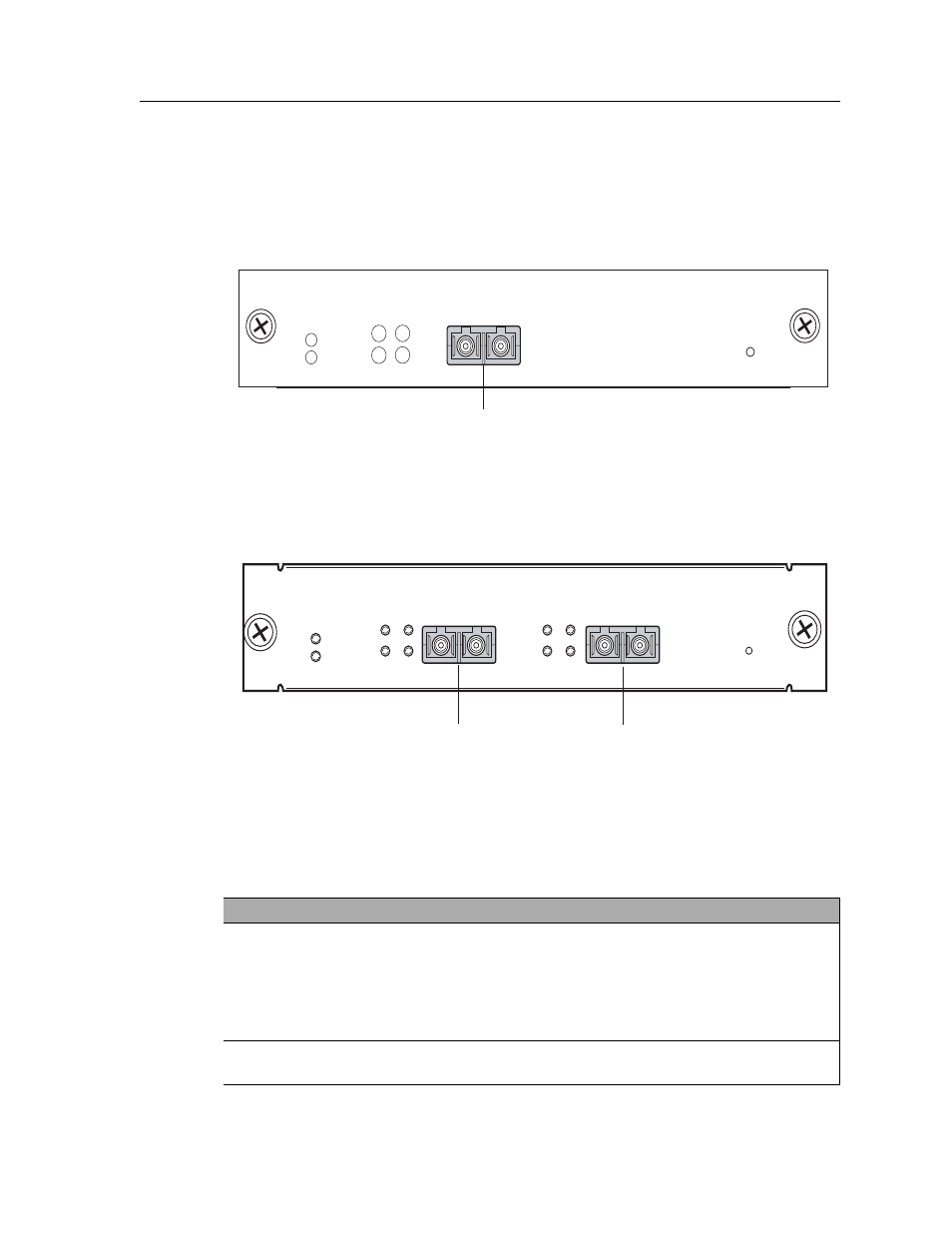

Figure 11 shows the front panel of the 1000BASE-LLX line card.
Figure 11. Front panel of 1000BASE-LLX line card
Figure 12 shows the front panel of the 1000BASE-LLX (T-Series) line card.
Figure 12. Front panel of 1000BASE-LLX (T-Series) line card
LEDs
Hot
Swap
1
Online
Offline
Rx
Tx Link
AN
Gigabit port
1000BASE-LLX SSR-GLX70-01-AA
2 1
Link Offline
Online
Tx
Rx
1000BASE-LLX SSR-GLH39-02
Hot
Swap
Link Tx
Rx AN AN
Gigabit Port Gigabit Port
Table 7. SSR-GLX70-01-AA and SSR-GLH39-02 line card LEDs
LED Condition Description
Offline Amber The line card is offline (powered off) but is ready for hot
swap.
The Offline LED also is lit briefly during a reboot or reset of
the X-Pedition but goes out as soon as the control module
discovers the line card.
Online Green The line card is online and is ready to receive, process, and
send packets if configured to do so.
