DC Power Supply
The X-Pedition DC power supply delivers 3.3, 5, and 12 volts DC to the X-Pedition’s control
module(s), fan modules, and other components. A single DC power supply provides enough current
to operate a fully configured chassis—with the exception of certain line cards. For information
about these cards, refer to Installing Line Cards
on page 71 .

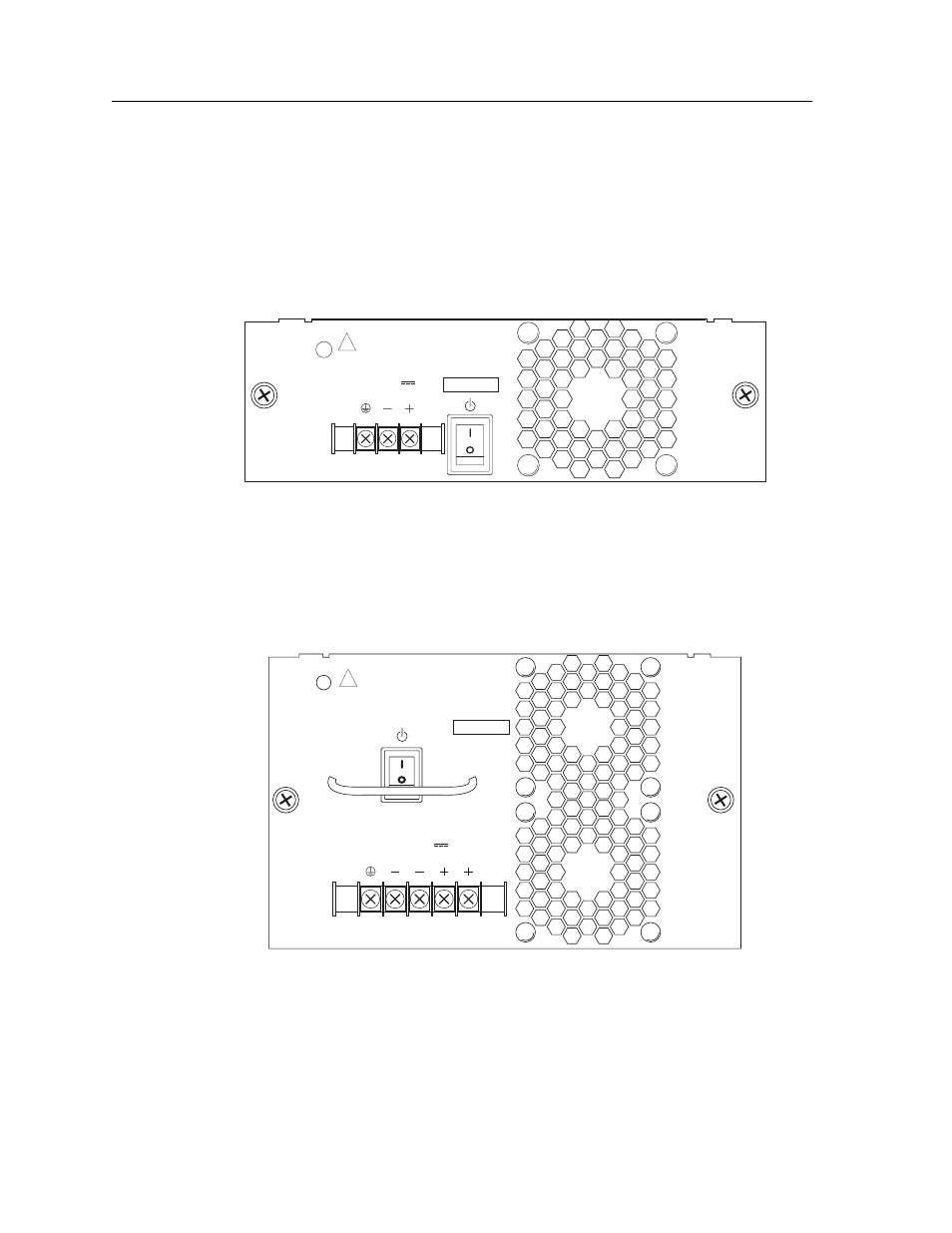

Figure 6 shows the front view of an X-Pedition 8000 DC power supply.
Figure 6. Front view of an X-Pedition 8000 DC power supply
The X-Pedition 8000 DC power supply has a three-terminal wiring block on the front panel,
consisting of a positive (+) terminal, negative (-) terminal and a safety ground. The DC supply is
designed to be powered by a 48-Volt DC source.
Figure 7 shows the front view of an
X-Pedition 8600 DC Power Supply.
Figure 7. Front view of an X-Pedition 8600 DC power supply
The X-Pedition 8600 DC power supply has a five-terminal wiring block on the front panel,
consisting of two positive (+) terminals, two negative (-) terminals and a safety ground. The DC
supply is designed to be powered by a 48-Volt DC source.
