Enterasys X-Pedition 8000/8600 Getting Started Guide 19
Hardware Overview
DC Power Supply Specifications
The following table lists the physical specifications for the X-Pedition’s DC power supplies.
The following table lists the environmental specifications for the X-Pedition’s DC power supplies.
Switching Fabric Module (X-Pedition 8600 only)
On the X-Pedition 8600, the switching fabric is contained on a separate plug-in module. The
X-Pedition 8600 has slots for two of these modules. When two switching fabric modules are
installed, the module in the slot labelled “Fabric 1” serves as the primary switching fabric module,
and the module in the slot labelled “Fabric 2” serves as a redundant switching fabric module.

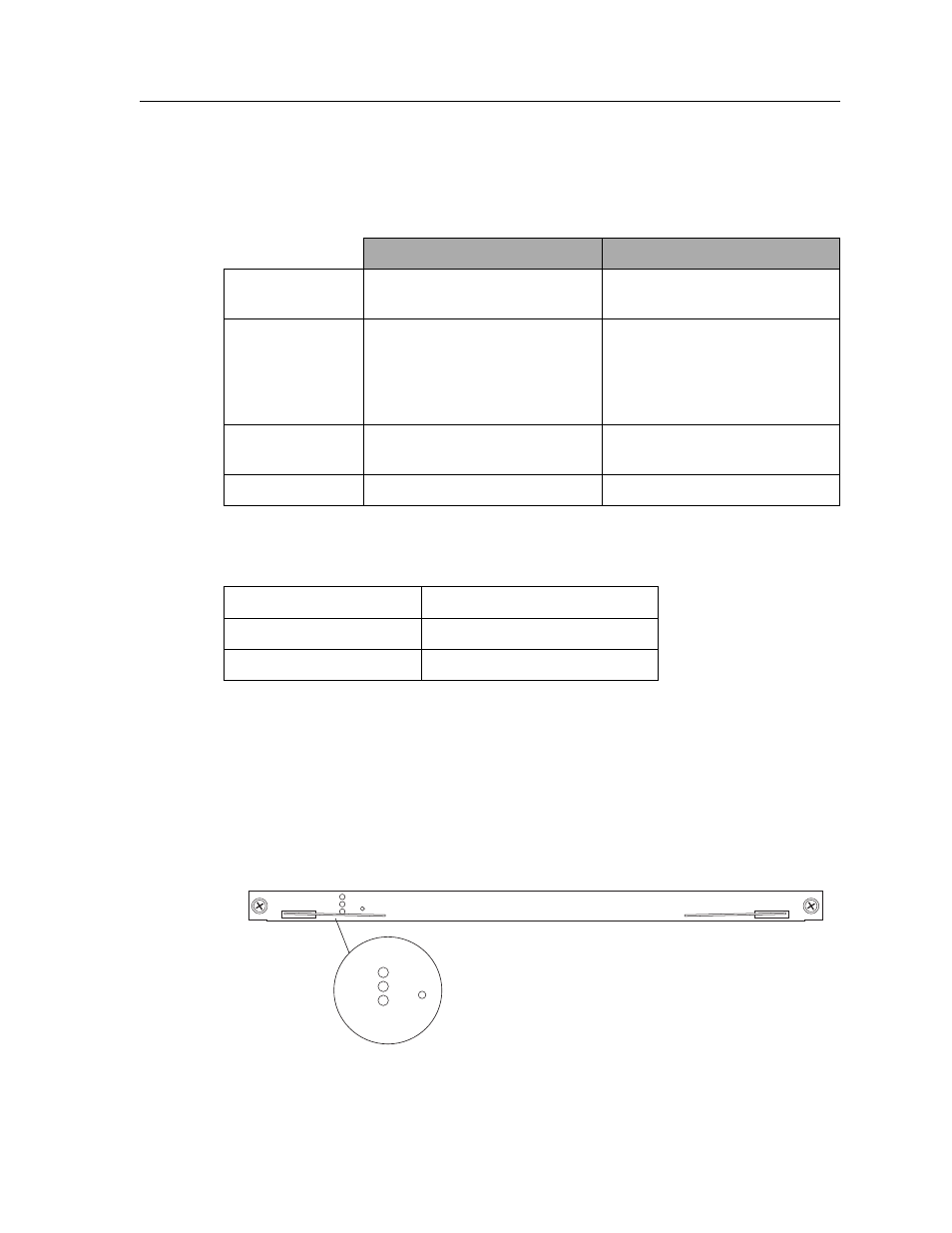

Figure 8 shows the front panel of the X-Pedition 8600 Switching Fabric module.
Figure 8. Front panel of X-Pedition 8600 Switching Fabric module
X-Pedition 8000 X-Pedition 8600
Input Voltage 48 to 60 VDC
(14 Amperes Max.) 48 to 60 VDC
(27 Amperes Max.)
Output Wattage
At 3.4 V
At 5.1 V
At 12 Volts
390 Watts
70 Amps
25 Amps
2 Amps
780 Watts
140 Amps
50 Amps
4 Amps
Dimensions 11.00 in. L x 7.70 W x 2.55 H
27.94 cm L x 19.55 W x 6.47 H 12.15 in. L x 7.70 W x 5.05 H
30.86 cm L x 19.55 W x 12.82 H
Weight 6.5 lb (2.95 kg) 12.0 lb (5.45 kg)
Operating Temperature +5 to +40 °C (41 to 104 °F)
Non-operating Temperature -30 to +73 °C (-22 to 164 °F)
Operating Humidity 15 to 90% (non-condensing)
SSR-SF-16 Switching Fabric
Active
Online
Swap
Hot
Offline
Active
Online
Swap
Hot
Offline
