Terminating resistor, Fig 2.9 terminating resistor, Fig 2.10 rs-485 communication connection – Yaskawa E7L Drive Bypass User Manual
Page 47: Electrical installation 2 - 15
Text mode
Original mode

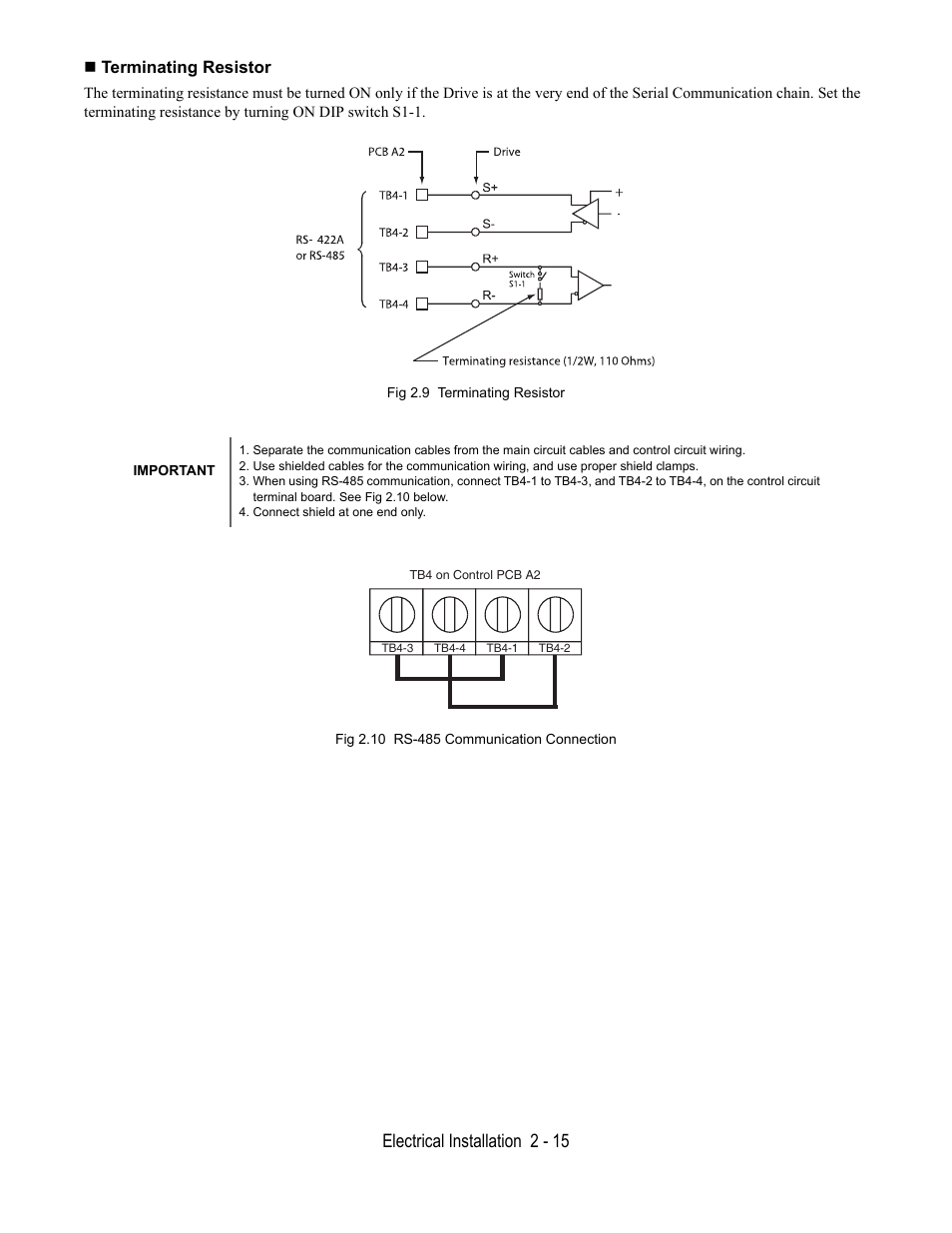

Terminating resistor, Fig 2.9 terminating resistor, Fig 2.10 rs-485 communication connection | Electrical installation 2 - 15 | Yaskawa E7L Drive Bypass User Manual | Page 47 / 302
