5.4.2 Assembling the DC Plug Connectors
In order to connect to the inverter, all connecting cables of the PV modules must be equipped with the
DC plug connectors provided.
To assemble the DC plug connectors, proceed as detailed below. Ensure the plug connectors have
the correct polarity. The DC plug connectors are marked with "+" and " − ".
Cable requirements:
• Use a PV1-F cable.
Procedure

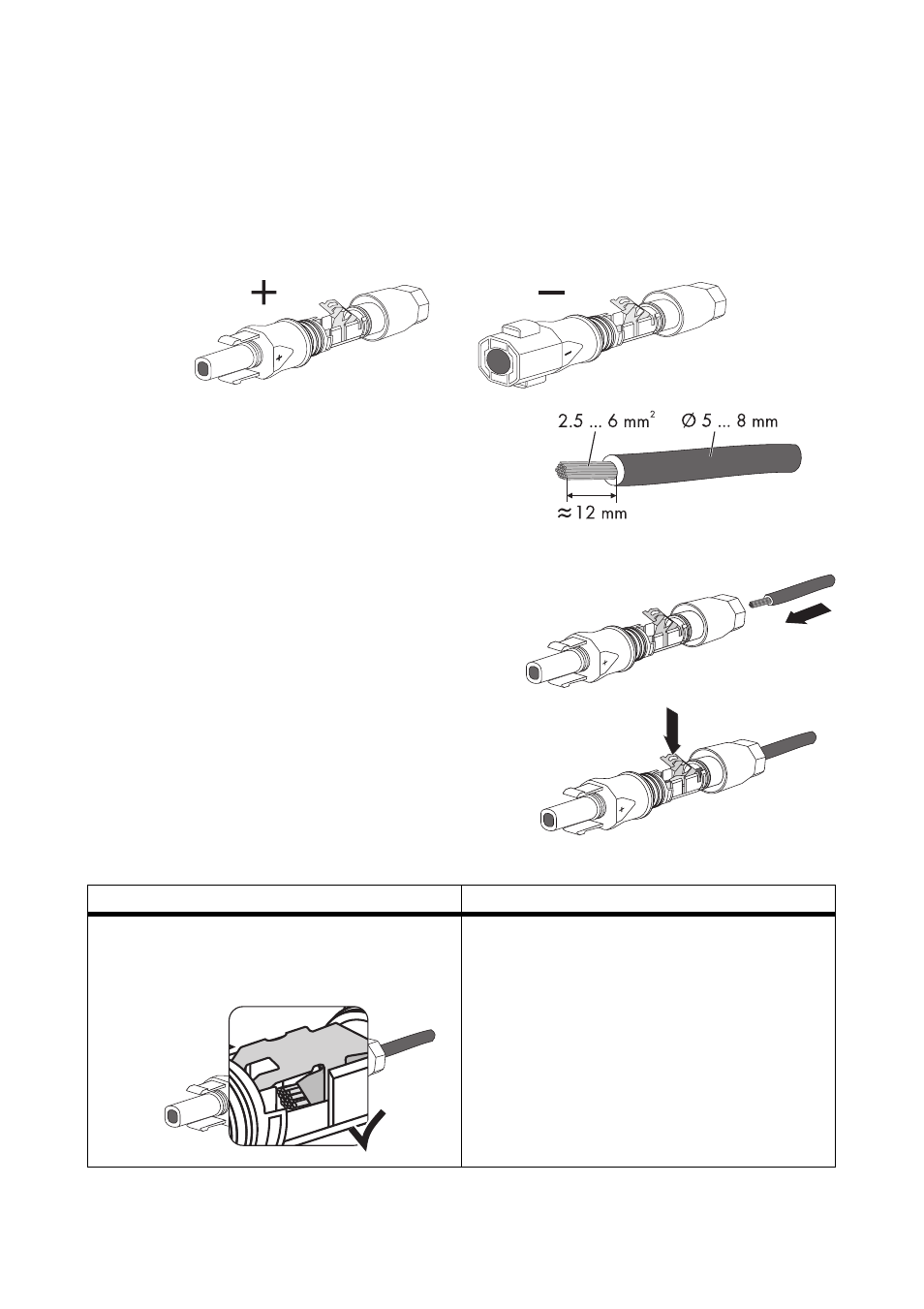

1. Insert the stripped cable into the plug connector as
far as it will go.
2. Press the clamping clip downward until you hear an
audible click.
3. Ensure the cable is correctly in place.
Result Action
☑ If the conductors are visible in the hollow
cavity of the clamping clip, the cable is in
the correct position.
• Proceed to step 4.
